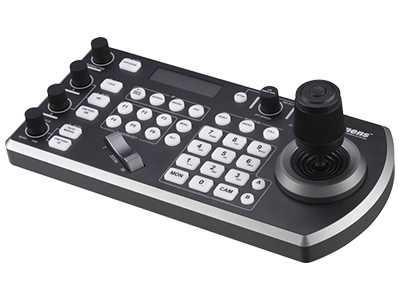

Lumens VS-KB30 IP Camera Controller

Item Code:

The VS-KB30 is a joystick IP Camera Controller that is able to control PTZ cameras. This accessory is suitable for easy operation and different camera adjustments with Sony VISCA protocol, Pelco P&D, VISCA Over IP, and ONVIF. With its auto backlight keypad display, the VS- KB30 is suitable for different environments.

RRP: 0   Save:

For purchasing information

What's In The Box?

  • Lumens VS-KB30 IP Camera Controller
  • Quick Installation Guide
  • AC Power Cord
  • Power Adapter
  • RJ45 to RS232/422 Adapter Cable
  • 3PIN to 2PIN Adapter

The VS-KB30 is a joystick IP Camera Controller that is able to control PTZ cameras. This accessory is suitable for easy operation and different camera adjustments with Sony VISCA protocol, Pelco P&D, VISCA Over IP, and ONVIF. With its auto backlight keypad display, the VS- KB30 is suitable for different environments.

Features

  • Joystick for Pan / Tilt / Zoom
  • Quick access control of exposure, white balance, focus, PTZ speed, and 6 user- assignable keys
  • The RS-232C / RS-422 x2 / Ethernet control interfaces allow long-distance communication
  • Protocol by VISCA, VISCA Over IP, Pelco P&D, and ONVIF
  • Control up to total of 255 IP cameras on a single network with PoE support
  • Support NDI®|HX, fully compatible with NDI®|HX PTZ camera, including Lumens, NewTek and Marshall

Specifications

Comm. Interface RS-232, RS-422 x2 , Ethernet
Display LCD
Joystick 4-axis (Pan / Tilt / Zoom)
Speed Control x2 (2 Knobs)
Zoom Control x1 (Zoom Seesaw Lever)
Gain Control R / B Gain (2 Knobs)
Assign Button x6
Keypad with backlight Yes
Protocol VISCA, Pelco P&D, VISCA Over IP, ONVIF
Baud Rate 2400, 4800, 9600, 19200, 38400 bps
Camera Address 1~255
Preset 255
Power DC12V / PoE
Power Consumption 8W
Dimensions 278 x 132 x 99.5 mm
Weight 1 kg
