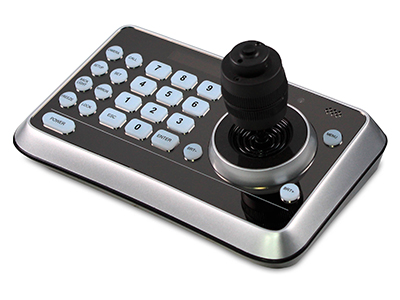

Lumens VS-K20 PTZ Camera Controller

Item Code:

The VS-K20 joystick controls any of the Lumens PTZ cameras. This accessory allows for easy operation and different camera adjustments. With its auto back light keys and OLED display, the VS-K20 is a great camera controller accessory.

RRP: 0   Save:

For purchasing information

The VS-K20 joystick controls any of the Lumens PTZ cameras. This accessory allows for easy operation and different camera adjustments. With its auto back light keys and OLED display, the VS-K20 is a great camera controller accessory.

Features

Daisy Chain

Easy to connect every device without messy cables.

Compact Design

Easy operation of versatile camera adjustments.

Key Features

  • Joystick for Pan/Tilt/Zoom and focusing
  • Easy operation of versatile camera adjustments
  • The RS-232/RS-422 communication interfaces allow long-distance communication
  • High brightness OLED display
  • Multi-level protection from illegal operation and settings
  • Auto backlight keys

Specifications

Comm. Interface Mini Din 8PIN
Protocol VISCA
Baud Rate 9600/38400 bps
Camera Control (Max.) 7
Joystick 4-axis (Pan/Tilt/Zoom/Focus)
Display OLED
Backlight Auto / Manual
Power DC12V
Power Consumption < 2W
Dimensions (L x W x H) 200 x 120 x 103 mm (7.9” x 4.7” x 4.1”)
Weight 0.5 kg (1.1 lbs)
