Lumens

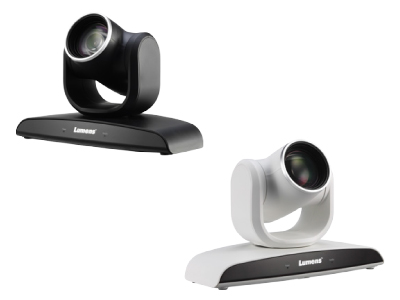

Lumens VC-B30U PTZ Camera

Item Code:

The VC-B30U 2MP USB PTZ Camera from Lumens is equipped with USB 3.0 and HDMI video output interfaces. It utilizes a 1/2.8" Sony CMOS sensor and a 3.92 to 47.32mm varifocal lens to capture video at resolutions up to 1920 x 1080p at 60 fps. With a 12x optical zoom lens, white balance, and exposure mode, the camera can capture clear images in low light, or the extreme contrast of brightness and darkness in a conference room. The Lumens Control Software (free download) can be used to control the camera without a joystick controller.

RRP: 0   Save:

For purchasing information

The VC-B30U 2MP USB PTZ Camera from Lumens is equipped with USB 3.0 and HDMI video output interfaces. It utilizes a 1/2.8" Sony CMOS sensor and a 3.92 to 47.32mm varifocal lens to capture video at resolutions up to 1920 x 1080p at 60 fps. With a 12x optical zoom lens, white balance, and exposure mode, the camera can capture clear images in low light, or the extreme contrast of brightness and darkness in a conference room. The Lumens Control Software (free download) can be used to control the camera without a joystick controller.

This plug-and-play camera uses standard UVC drivers and is compatible with Windows, Linux, MacOS, and Chrome OS. The VC-B30U camera has one USB connection that can work with the video conferencing software and one HDMI connector that can be used to output video to a second display.

Features

Supports a Dual Display Meeting Room

The VC-B30U has one USB connection that can work with any videoconferencing software. One HDMI can be used for the second display regarding viewing the image of one of the speakers.

USB 3.0 Plug & Play

USB 3.0 Plug & Play and compatible with Windows, Linux, MAC OSX, Chrome OS.

The VC-B30U uses standard UVC drivers. There is no need to install special USB drivers. USB 3.0 is 10 times faster than the USB 2.0 standard and it features low latency and non-compress output.

Panoramic Viewing Angle

Panoramic 72° viewing angle & 12x Optical Zoom that helps users achieve a wider viewing area.

Easy Integration with Various Software

The VC-B30U can work seamlessly with any software running on any OS that supports USB 3.0 devices.

Supports a Dual Display Meeting Room

The VC-B30U has one USB connection that can work with any videoconferencing software. One HDMI can be used for the second display regarding viewing the image of one of the speakers.

Easy control

Easy control like Pan, Tilt, Zoom and settings by Lumens USB PTZ camera controller software. supports Windows & MAC OS.

128 Preset Positions

The VC-B30U has up to 128 preset settings for pan, tilt, zoom, focus, exposure, and white balance modes for more effective and efficient video recording.

Wide Range Pan/Tilt/ Zoom Action

The VC-B30U has a wide shooting area (pan angle from -100° to +100° ; tilt angle from -30° to +30°), as well as quiet, fast, and precise positioning movements.

RS-232 Remote Control

The camera’s settings and PTZ control functions can be performed remotely at any location and at high communication speeds via the RS-232 interface and supports Daisy-Chain.

Panoramic Viewing Angle

The VC-B30U has a panoramic 72° horizontal viewing angle that helps users achieve a wider viewing area.

Specifications

Sensor 1/2.8” 2 MP CMOS
Video Output USB:YUV2 and MJPEG format 1080p 30 / 25 fps,720p 30 / 25 fps
HDMI:1080p 60 / 50 HZ 720p 60 / 50 HZ
Optical Zoom 12x
Digital Zoom 12x (HDMI Out)
Panning Angle -100° ~ +100°
Tilting Angle -30° ~ +30°
Preset Positions 128
Video Output(HD) Interface USB 2.0 / 3.0 and HDMI
Camera Control Interface/Protocol USB, RS-232 In / Out
Video S/N Ratio > 50dB
Focal Length f = 3.92 ~ 47.32 mm
Shutter Speed 1/1 ~ 1/10,000 sec
Horizontal Viewing Angle 72°
Aperture F1.8 ~ 2.8
Minimum illumination 1.6lux (F1.8, 50IRE, 60fps)
Minimum Object Distance 500(Wide) ~ 1200(Tele) mm
Gain Control Auto, manual
White Balance Auto, one-push, manual
Exposure Control Auto, manual
Focus System Auto, manual
Weight 2.9 lbs (1.3 kg)
Dimensions (W x D x H) 10.6” x 4.8” x 6.2”(267.8 x 123 x 156.1 mm)
Sensor 1/2.8” 2 MP CMOS
Video Output USB:YUV2 and MJPEG format 1080p 30 / 25 fps,720p 30 / 25 fps
HDMI:1080p 60 / 50 HZ 720p 60 / 50 HZ
Optical Zoom 12x
Digital Zoom 12x (HDMI Out)
Panning Angle -100° ~ +100°
Tilting Angle -30° ~ +30°
Preset Positions 128
Video Output(HD) Interface USB 2.0 / 3.0 and HDMI
Camera Control Interface/Protocol USB, RS-232 In / Out
Video S/N Ratio > 50dB
Focal Length f = 3.92 ~ 47.32 mm
Shutter Speed 1/1 ~ 1/10,000 sec
Horizontal Viewing Angle 72°
Aperture F1.8 ~ 2.8
Minimum illumination 1.6lux (F1.8, 50IRE, 60fps)
Minimum Object Distance 500(Wide) ~ 1200(Tele) mm
Gain Control Auto, manual
White Balance Auto, one-push, manual
Exposure Control Auto, manual
Focus System Auto, manual
Weight 2.9 lbs (1.3 kg)
Dimensions (W x D x H) 10.6” x 4.8” x 6.2”(267.8 x 123 x 156.1 mm)
