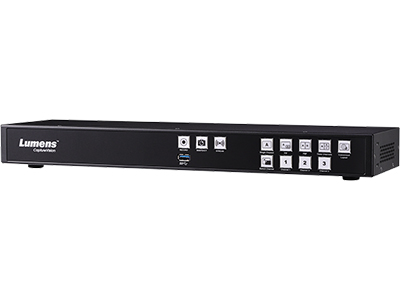

Lumens LC200 Lecture Capture System

Code:
Designed for recording, capturing and switching and mixing, the LC200 CaptureVision Station is a stand-alone device that's perfect for serving as the core system for your video project. The LC200 supports Full HD 1080p video and audio recording with gorgeous high definition images and crystal clear audio, making it ideal for lecture capture, conference recording and event streaming.

For purchasing information

Enquire Now

4 in 1 Media processor - supports recording, switching, mixing and live streaming at 1080p

Just one stand-alone device allows you to mix four video sources, record, stream, and live-switch simultaneously, which is perfect to serve as the core system for your video project. The LC200 supports Full HD 1080p video and audio recording with gorgeous high definition images and crystal clear audio, which is excellent for lecture capture, conference recording and event streaming. It supports popular streaming platforms and content management systems such as Youtube, Facebook, Kaltura and Panopto.

Key Features

  • Supports 1080p 60/30fps recording.
  • Supports 4 HDMI Inputs and IP video sources including Lumens IP Cameras, NDI|HX Camera, and standard RTSP streams.
  • Supports HDMI-embedded audio or analog stereo audio with 4 channels Audio Input mixing and gain control.
Capture up to 4 video sources through multiple inputs. Supports a direct output to an HDMI display

The LC200 captures various video sources, including HDMI inputs, Lumens IP cameras, NDI|HX cameras, and RTSP streams, and allows you to switch among them. Together with four line-in / MIC-in inputs, you can provide a complete audiovisual experience to your viewers! Furthermore, programmed video can directly show on a HDMI display without any device in between.

User-Friendly Multi-View director and advanced Scenes Switching to ease your video process

The powerful function allows users to get control of their recording and streaming content. By just one click, you can roll out user-defined scenes that contain PBP PIP layout, title/logo overlays, and pleasing background and generate a decent video while streaming.

4-Channel recording, streaming, live switching media processor

Lumens LC200 CaptureVision Station is an all-in-one media processor. Just one stand-alone device that allows you to mix four video sources, recording, streaming, and live-switching simultaneously; perfect to serve as the core system for your video project.

Bring multiple videos and audio together

The LC200 captures various video sources, including HDMI inputs, Lumens IP cameras, NDI cameras, and RTSP streams, and allows you to switch among them. Together with four line-in / MIC-in inputs, you can provide complete audiovisual experience to your viewers!

Record everything

The LC200 records not just the program-out video but also records four independent channels video as well with gorgeous high definition images and crystal clear audio, which also makes your post-production much easier.

Scheduling

Through Outlook or Google calendar, you can schedule your important events to create, record and stream your video content.

Built-in 1TB HDD, USB port, FTP supports

The LC200 has a built-in 1Terabyte hard drive that can store up to 500 hours of video. You also have options to upload your recordings to an external USB device or the FTP server.

Live advanced scenes switch

The powerful function of advanced scenes switch, helps you capture the attention of your viewers and increase audience engagement in your event. By just one click, you can roll out user-defined scenes that contain PBP PIP layout, title/logo overlays, and pleasing background.

Content management system integration

The LC200 integrates with several content management systems like Panopto, Kaltura, and Opencast,etc. which are great applications for enterprise video and school lectures.

Multi-stream anywhere

Live streaming is a powerful tool. The LC200 can live stream up to three destinations like YouTube, Facebook, Twitter or twitch.

Specifications

Input
Number/signal 4 HDMI digital video
Connection 4 female HDMI type-A
IP Source Lumens IP PTZ / Box Camera
Lumens NDI|HX Camera
RTSP Source (H.264 1080p 60 / 30fps)
Video Processing
Video Compression H.264 / AVC 4:2:0 8bit color
Encoding profile: High, Main, Baseline
Bitrate 200 kbps to 10 Mbps
Video Output
Number/signal 3 H.264 / AVC digital video over Ethernet
2 HDMI digital video
Scaled resolution 1080p
Frame rate 30 / 60 fps
Recording and Storage
Internal storage 1TB HDD
External Storage 1 USB 3.0 port in front panel
File Type H.264 and AAC in an MP4 container, JPEG
Resolution 480p, 720p, 1080p
Frame rate Max. 1080p 60 / 30 fps
Audio Input
Number/signal 4 Line In/MIC In (stereo, 3.5mm phone jack)
4 stereo, digital de-embedded audio from HDMI
Audio Processing
Compression AAC-LC
Audio Output
Number/signal 1 stereo, unbalanced 3.5mm phone jack
2 stereo, digital de-embedded audio from HDMI
Communication
USB 2 rear panel USB 2.0 type A
Supports USB mouse, keyboard
Serial control RS-232/RS-485 port
Ethernet
Ethernet host port 1 female RJ-45
10/100/1000 Base-T high/full duplex
Streaming Protocol Pull: RTSP
Push: RTMP / RTMPS
TCP, UDP, HTTP
HDCP Client
General
Power supply DC In , 12V / 2A
Power consumption 24W
Dimensions Standard 1u rack
122.5mm(L) x 431mm (W) x 44.3mm (H)
Weight 1.2 Kg
