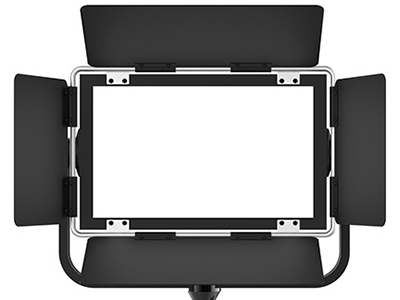

SWIT CL-M100D 100W Bi Colour LED Mini Studio Light

Code: SWI/CL-M100D

On Sale! - While stocks last

12% Savings

Use Promo Code: EOFY24

at checkout for an additional 15% OFF!

Ends June 30 2024. Only available while stocks last.


Got a question about this product?
Send us a message

Low Stock

Limited Stock - Call for availability

What's In The Box?

  • Swit 100W Bi Colour SMD LED Mini Studio Light
  • Safety rope x2
  • PowerCON TRUE1 AC cable

Mini Size 100W LED Panel

CL-M100D is a mini, high intensity, fanless 100W Bi-color SMD LED panel light for broadcast studio, live entertainment, theater, film applications - especially low ceiling space setups.

576pcs Surface Mounted LEDs

CL-M100D adopts 576pcs SMD LEDs, featuring:

  • Higher uniformity of illuminance;
  • Wider beam angle;
  • Higher color rendering index;
  • Softer and Brighter;
  • Longer life time,

These features make the CL-M100D an ideal light source for Broadcast studios, greenscreen keyer, live streaming etc.

3400 Lux @ 1 meter

CL-M100D provides 100W light output, 3400Lux luminance at 1 meter distance, 62° half-peak wide beam angle, supports 0 to 100% PWM digital dimming, smoothly and with no flickering.

No Fan, No Noise

The large size fin consdenser inside CL-M100D ensures 100W high bright output with no fan, no noise, to provide a silent video production environment.

2700K-6500K Continuously Adjustment

CL-M100D consists of 100W of 2700K LED and 100W of 6500K LED, and outputs 100W power at any color temperature from 2700K to 6500K.

CRI 98; TLCI 99

CL-M100D adopts high end surface mounted LEDs with super high Color Rendering Index (CRI) Ra 98, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colors exactly under the light.

Control Info Display

The rear LCD screen can display dimmer percentage, color temperature, DMX address, Group channel (CH), and power indicators.

5-pin DMX512 IN & OUT

CL-M100D provides 5-pin XLR DMX512 in & out, and a 5V USB-A port to power the wireless DMX receivers.


CL-M100D adopts PowerCON TRUE1 AC connectors, and supports AC loop output to the next lights, for convenient studio installation. The standard package includes a PowerCON AC cable, and the loop cable PA-LC20 is for optional purchase, 2 meters length, 16A load, will loop more than 25x CL-M100D lights under 220V AC voltage, and 13x CL-M100D lights under 110V voltage.

11-17V DC Input

With optional battery plate clamps and D-tap cable, you can power the CL-M100D light by V-mount or Gold mount batteries via the 4-pin XLR DC in socket.

Long press color temp knob to set DMX address, and long press dimmer knob to switch between DMX consoler mode and Group interactive control mode.

Product note:

Supplied with 15A power cable only.
10A power cable (sold separately) is required for operation using domestic power outlets. 15A power cable is required when daisy chaining more than 16 units together.
LED 576pcs SMD LEDs
Illuminance 3400Lux @ 1m
Beam angle 62° half peak
Color Temperature 2700K ~ 6500K
CRI 98
SSI (D55) 73
Power Max 130W, light output 100W
AC input & output PowerCON TRUE1 AC 100-240V 50/60Hz
DC input 4-pin XLR DC11V~17V
Dimension 275×173×130mm
Lighting area 245×146mm
weight 5.6kg with metal barndoor
