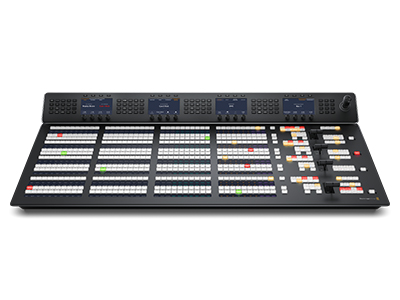

Blackmagic ATEM 4 M/E Advanced Panel 40

Code: NMA/SWPANELADV4ME40
$26,725.00

This massive model is big enough to perfectly match the features on the ATEM Constellation switcher! It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Blackmagic ATEM 4 M/E Advanced Panel 40 is back in stock.

For the ultimate in professional control you can add an optional ATEM Advanced Panel! Although you can use ATEM Constellation with the software control panel, using an ATEM Advanced Panel is so much faster! ATEM Advanced Panels open up the power of your ATEM Constellation because they give you an enormous amount of control, allowing you to setup more complex effects. It's also a nicer way to work because you have physical broadcast quality buttons, knobs and a t‑bar fader so you can access all features in the switcher, all at the same time. Imagine using the 4 M/E model to access all M/Es simultaneously, with an input button for every single SDI source on the ATEM Constellation switcher!

ATEM 1 M/E Advanced Panel

The 1 M/E model features a single M/E row with 10 input buttons and 1 system control LCD screen. Although it’s a 1 M/E panel, you can control all M/Es in larger switchers. The input buttons feature user customizable colors and button label LCDs. There's also a joystick for the DVE and a T‑bar fader.

ATEM 2 M/E Advanced Panel

The 2 M/E model features 2 M/E rows with 20 input buttons and 2 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!

ATEM 4 M/E Advanced Panel

The massive 4 M/E model is big enough to perfectly match the features on the ATEM 4 M/E Constellation switcher! It features 4 M/E rows with 40 input buttons and 4 independent system control LCDs for each row. This massive panel includes 32 LCD's for custom labeling of every button on every row!

Accelerate Live Production

Select Sources

Switch cameras to air instantly!

ATEM Constellation has been designed to give you the most advanced live switching workflow. Internally, ATEM Constellation has separate program and preview buses that you can use to quickly and accurately switch sources. ATEM Constellation lets you see your preview bus selection by using an aux output or on the multi view. Then all you need to do is make selections on the preview bus of the advanced panel, which will appear on your preview screen, allowing you to see your source before it goes on air. Then you can bring the source online by pressing cut or auto! You can also switch sources on the program bus if you need them to go live immediately!

Transition Control

Select and customize transitions

Get total control over your transitions with a dedicated hardware button for each transition type! When selecting transition types, a system control LCD screen will display the options for that transition, so you can change its parameters without navigating through complex menus. It's all instantly available! That gives you multiple ways to switch. Simply select a new source on the preview bus, then press CUT for a cut transition, or AUTO to use the selected transitions such as mix, dip, wipe or DVE! You can even cut directly on the program bus. With ATEM Advanced Panels you get all the controls you need to access all transition types fast.

Transition Styles

Mix, dip, wipe, DVE and more!

ATEM switchers give you a huge range of transition styles! Mix transition will smoothly blend between sources just like an NLE cross dissolve. Standard SMPTE wipes are included and wipes can have edge softening for smooth dreamy transitions that are more exciting than simple cross dissolves. Dip transitions create a dip to color effect, however because you can dip to any video source, you could create really innovative effects! DVE transitions use the DVE to create crazy moves where the whole foreground image moves! Plus you can combine the DVE and a still image from the media pool to create graphic wipes! The t-bar fader even lets you manually position the transition for total control!

With the push of a button you can choose mix, dip or wipes and  even exciting programmable DVE or animated stinger transitions!

Wipe Transitions

Transform wipes into exciting effects!

Power up your wipe transitions by accessing parameters to transform them into exciting effects. While you can select the wipe pattern directly on the LCD, you can also add lots of customization to suit your production style. You can adjust parameters such as symmetry and softness, but there are also adjustments for colored borders with variable width and softness, as well as the position of the centre of the wipe. You can even use the dedicated joystick to set precise wipe pattern positioning!

Get complete control over wipe, symmetry, softness plus adjustments for colored border control with variable width and softness.

DVE Transitions

Amazing digital video effects

ATEM Advanced Panels are perfect for positioning the DVE for custom picture in picture effects because they include a joystick. The joystick allows the position to be set precisely and rotating the knob will change DVE size. You can also use the soft knobs and menus on the LCD to adjust the DVE position, size and other DVE features such as lighting and drop shadow effects. The DVE can be setup to fly graphics into frame or select any of the pre programed push and squeeze transitions.

The built in joystick lets you position the DVE using up and down movements or you can scale the image size by rotating the joystick!

Keyer Control

Get perfect green screen keying

The system control knobs are ideal when doing chroma keying because you can finely adjust each parameter for clean key edges and seamless multi layer compositing effects. Unlike software control where you need to look at the user interface, the ATEM Advanced Panels have control knobs that you can hold while adjusting key parameters and looking at the video output live to ensure the key is seamless. Only fine adjustment of key settings live while watching the video, ensures your key is perfect.

Precision control knobs can create the perfect chroma key quickly and accurately for perfect multi layer effects.

Fader Bar

Manually blend transitions

Amazing live performances often require transitions that need to be controlled manually. The ergonomically designed t‑bar control lets you ride transitions perfectly as part of the live performance! Sometimes the emotion of a live event means you need to feel a transition to get it perfectly in sync with the camera operators and talent. Like a conductor, your ATEM Constellation is part of the performance and drives the mood as the production unfolds.

The ergonomically designed T bar control lets you set transitions manually allowing you to match the emotions of the performance.

Auto Transition

Perfect and predictable transitions!

Just below the panel fader bar is the auto transition button. Selecting auto will instantly perform the transition type you have set. This ensures you can accurately select your source and transition type before triggering the action, so you always know what is going to happen and there's much less chance of mistakes going to air. Auto transitions can be programed for durations from 1 to 250 frames and the benefit is each transition is consistent through your program.

Automatic transitions can be pre programed for any duration from 1 to 250 frames and are ideal for smooth constant mixing between cameras.

Preview Transition

Simulate new effects while on air

Unlike the simpler front panel on ATEM Constellation, the hardware panel includes a very useful preview transition button that lets you simulate a transition or effect before you use it! The PREV TRANS button helps you avoid on air mistakes when preparing live transitions by displaying the result on your preview video output or on the multiview screen on the ATEM Constellation. Preview transition is the only way to accurately setup complicated transitions and multi layered key effects.

The 1 M/E broadcast panel features a dedicated preview transition button so you can preview the next transition before it goes to air.

Fade to Black

Finish your program with style!

The built in fade to black button controls the entire output of the switcher! Selecting fade to black (FTB) will smoothly fade your program output to black at a preset transition rate. Because FTB is at the end of all processing, it ensures all video layers fade out together. You can even select to fade out audio when FTB is triggered. That's useful for the start and end of your production or for fading out to commercial breaks. FTB also includes button guards to stop accidental triggering!

Joystick

Get precise DVE control

Move elements around the screen using the Joystick! With full 3 Axis control you can adjust X, Y and Z positions of wipe patterns and position the ATEM Constellation DVEs. The joystick control with the DVE is ideal to position live video over video. Scale the size, position up down or left and right for the perfect picture in picture effect. You can also use the joystick to move the DVE and enter start and end keyframe screen positions for your own customized animated DVE moves.

System Control

Change switcher settings from the menus!

You get full control right from the panel using the system control LCDs. Each system control LCD has a direct access keypad with a button for each function, and LCD and soft knobs and buttons. Simply push a keypad button to see the parameters displayed in the large LCD so you can use the soft buttons and knobs to change each setting. Its incredibly easy and very fast! There's hundreds of switcher parameters available for keyers, transition selection, DVE, color generators as well as switcher video standard, multiview setup and even input button remapping! You can even save and recall 10 individual panel set ups and store them in the panel! Plus the 2 M/E model as 2 totally independent system control menus, while the 4 M/E model has a massive 4 independent system control LCDs!

Conveniently located in the select bus, you can quickly set the auxiliary output and then live switch sources at the push of a button.

Change video outputs  with a single button press

As well as the input buttons, each M/E row has a dedicated "select bus" for routing video into processing and selecting sources to the aux outputs. With so many aux outputs, you can select any source into any output, just like an SDI router. Conveniently located above the ME row buttons, the select bus lets change sources with a single button press so its very fast to use. There are even labels to show you what source is on each button. The select bus also lets you directly select inputs for other internal processing such as the keyers and DVE. Only the select bus lets you route signals internally and via the aux outputs instantly!

Media Players

Manage built in graphics and titles

You can select stills from the media pool in the panel LCD menus and simply pressing the media button lets you access the media player and change which image in the media pool is sent to the media player as a video source. You can select any loaded still by scrolling through the list of media pool images, which are listed showing the original file name of each image. This means you can quickly change stills and titles right from the same panel you are working on, eliminating the need to change control panels just to change a title.

Set stills from the panel, change between stills and clips plus play and loop the clips directly from your ATEM broadcast control panel.

Powerful Custom Macros

Trigger macros at the touch of a button!

Another benefit of the ATEM Advanced Panel is the built in macros, where you can very easily record your own custom macros and trigger them to playback with the push of a button. This means that you don’t need to use a computer to work with macros because you can trigger them from the same hardware panel you are switching from. If you edit or modify a macro the change will appear on all the connected hardware or software control panels because the macros are stored inside the ATEM Constellation itself. You can set up different macros to trigger under each macro button and the thin strip LCD under the buttons will show you which button as which macro you have assigned.

Customizable Control Options

Control your  ATEM  switcher from anywhere in the world!

Because ATEM Constellation includes a standard Ethernet connection, you can use this connection to control it remotely from long distances away. The ATEM Advanced Panel, the ATEM Camera Control panel and the ATEM Software Control for Mac and Windows all use an Ethernet connection to the ATEM Constellation, so you can setup any combination of panels you need, for the freedom to decide your ideal control setup. What this means is you can have multiple control panels all working together in parallel and at the same time. Then all these panels can be located anywhere so you could control your ATEM Constellation from the other side of the world!

Connections
Ethernet 4 x 10/100/1000 BaseT with loop output for additional control panels or computers.
Software Updates 1 x USB-C for firmware updates.
Product Specifics
Number of Mix Effects Rows 4
Direct Cross Points 40
Shifted Cross Points 80
Crosspoint Button Type Tri-Color LED
Crosspoint Label 10 rows 24 character LCD
On-Air indicator 20
Power Status Indicators None
DSK Transition Selectors 4 x Auto, Cut, Tie/Preview
Preview Transition 4
Transition Rate Displays Via main menu
LCD Menu Displays 4
Menu Control 4 x 20 buttons
Dedicated Macro Buttons 4 x 40
Transport Control Buttons 24
Destination Bus 4
Source Select Bus 4
Fader Bar 4
3 Axis Joystick 1
Numeric Keypad 1
Software
Software Applications ATEM Software Control Panel.
Operating Systems Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 10, 64-bit.
Power Requirements
Input Voltage 2 x Internal 100 - 240V AC.
Redundant Power Yes
Power Usage 250W
Physical Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity Up to 95%
