SmallHD Focus Pro OLED RED KOMODO 5.5" Monitor Kit

Code: KAY/33.1.MON-FOC-P-O-KOM
 DISCONTINUED

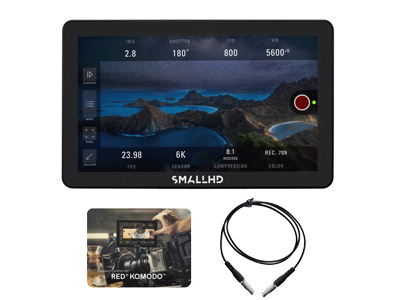

This kit comes with a Focus Pro OLED Monitor, Camera Control for RED® KOMODO™ (software license), and a KOMODO Control Cable (5-pin to 9-pin Connector). Designed specifically to pair with the RED® KOMODO™, Focus Pro maintains the same reliable SmallHD clarity, vivid color detail, and dynamic touchscreen camera control while offering an equal balance between durability and lightweight design. Unlock access to all camera features available thru RED Camera Protocol (RCP2) with the included software activation instructions, and tap into the internal camera settings with intuitive touchscreen configuration tools.

Robust Design

The elegance of strength.

Focus Pro OLED fuses perfectly with KOMODO's compact, featherlight body: Constructed with a sturdy, milled aluminum chassis that weighs only 9.6 oz, Focus Pro OLED withstands heavy everyday operation and frees you to operate on the fly, without the restrictions of weight. 3 x ¼”-20 mounting points make it easy to secure to a rig, and the new Focus Pro Hinge Mount (sold separately) gives KOMODO users the flexibility to tilt the monitor for optimal viewing.

Brilliant OLED Monitoring

See everything.

Focus Pro OLED offers a radiant 5.5-inch display with sharp resolution and fantastic color & contrast for accurate image control. The SDI input provides real-time monitoring, and retracting menus offer an unobstructed field of view, so you see exactly as KOMODO sees.

SmallHD PageOS 4

Every tool you need for absolute precision.

With the power of the new PageOS 4 software, utilize all of the dependable SmallHD features such as customizable frame guides, Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and--as always--achieve tack-sharp critical focus with SmallHD Focus Assist.

Extended Energy

Once you start, never stop.

Low power consumption allows you to run without excessive swapping. A redesigned battery mount provides a stronger, more secure attachment for all compatible L Series type batteries, while the monitor may also be powered by an external source via a 2-pin input.

Camera Control Access

Access all camera features available thru RED Camera Protocol (RCP2)

Specifications

Display

Number of Displays 1
Panel Type OLED
Display Size 5.5" / 14.0 cm
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle 160°
Touchscreen Yes
Maximum Brightness 350 cd/m2
Contrast Ratio 60,000:1
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 402 ppi
Color Gamut 70% NTSC
Real-Time LUT Monitoring SDR
Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Image Flip, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

I/O

Video 1 x BNC (3G-SDI) Input
Embedded Audio SDI: 2-Channel
Audio 1 x 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x 2-Pin LEMO Input
Other I/O 1 x RCP (5-Pin LEMO) Output
Card Slot 1 x SD
Wi-Fi None

Format Support

Video Format SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50
1080i: 60/59.94/50
480i: 29.97
576i: 50
SDI (4:4:4/4:2:2 RGB, YCC)
1080p: 60/30/25/24/23.98
1080PsF: 29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Power

DC Input Power 7 to 16.8 VDC
Battery Type 1 x L-Series

Mounting

Mounting 3 x 1/4"-20 Female

General

Material of Construction Aluminum
Weight 9.6 oz / 272 g
Warranty Length Limited 1-Year Warranty
