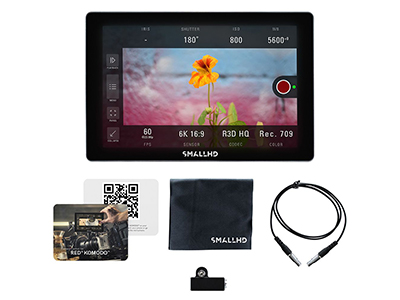

SmallHD Indie 7 Red Komodo Kit

Code: KAY/33.1.MON-INDIE7-KOMODO
Indie 7 is the vivid, lightweight entry model into SmallHD’s professional 7-inch touchscreen monitor series. Featuring hyperresponsive touchscreen technology, backed by 1000nits of brightness for daylight visibility. Unlock access to RED KOMODO with the included software license; tap into the internal camera settings with intuitive touchscreen configuration tools. Includes Control Cable (RED KOMODO) for full tethering and camera accessibility.

For purchasing information

Enquire Now

Indie 7 is the vivid, lightweight entry model into SmallHD’s professional 7-inch touchscreen monitor series. Featuring hyperresponsive touchscreen technology, backed by 1000nits of brightness for daylight visibility. Unlock access to RED KOMODO with the included software license; tap into the internal camera settings with intuitive touchscreen configuration tools. Includes Control Cable (RED KOMODO) for full tethering and camera accessibility.


Camera Control for RED KOMODO

Access all camera features available thru RED Camera Protocol (RCP2)

PageOS 4 Software Toolset

With the power of PageOS 4 software, utilise all of the dependable SmallHD internal toolset features such as customisable frame guides, Focus Assist, Exposure Assist, high-resolution 3D LUT overlays (via Full SD Card slot), histogram, vectorscope, waveform, and Teradek RT Overlays.

Features

Responsive Touchscreen with Daylight Visibility

  • Full HD 7-inch IPS LCD with 1920x1200 resolution
  • 10-bit color processing in 100% Rec 709
  • 1000nits of brightness
  • 4K & HDR compatible
  • 160-degree viewing angle

Versatile I/O

  • Input: 1x 3G-SDI, 1x 3G-SDI In/Out, 1x HDMI 2.0, 1x Micro USB
  • Output: 1x 3G-SDI, 1x HDMI 2.0

Power Input Options

  • 2mm barrel connector port
  • Included Sony L-Series dual battery bracket
  • Optional Gold Mount & V-Mount battery plate attachments (sold separately)

Rugged Lightweight Housing

  • Anodized aluminum chassis
  • Featherlight weight: 1.1lbs (.53kg)
  • Ultrathin body width: 1.2in (3.35cm)
Environmental
Item Weight (oz) 18.9
Package Weight (oz) 26
Height (in) 4.67
Width (in) 1.32
Length/Depth (in) 7.09
Compliance FCC, IC, CE, RoHS
Operating Temperature 30F to 100F
Storage Temperature 0F to 120F
Mount Points Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction Anodized aluminum chassis
Display
Panel Type IPS LCD Touchscreen
Diagonal Size 7.02
Resolution 1920x1200
Pixel Density 323
Aspect Ratio 0.6736111111111112
Active Area 5.95 x 3.72
Brightness 1000 Nits
Contrast 1000:1
Gamut 100% rec709
Color Depth 10-bit Processing (8-bit panel)
Viewing Angle 160
Backlight Type LED
Adjustable Backlight Yes
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio Output Types HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
SDI 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Power In Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
USB 1x USB 2.0 Micro-B receptacle
Controls
Primary Touch Screen
Record Capture Image Capture Tool
Power
Connector Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
Voltage DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Consumption 17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)
Batter Plate Included L-Series standard (V Mount or Gold Mount optional accessories)
Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Battery Types L-Series, V Mount, Gold Mount
Overload Protection DC input: Reverse polarity
Battery Chemistry Li-ion
Battery Charging Time Monitor does not support the charging of batteries
Software
Pixel Zoom 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate Automatic or Manual Control
Image Flip Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Color Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual - User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel
