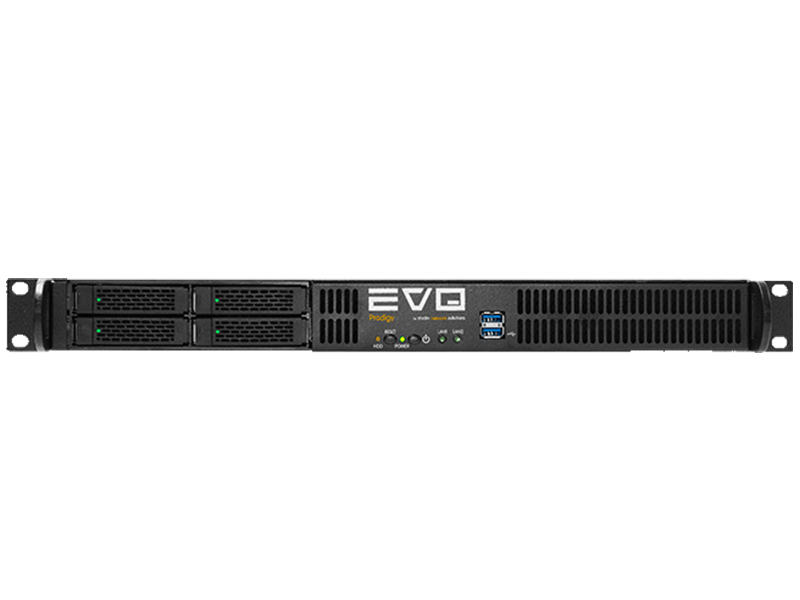

The EVO Prodigy is a compact yet capable 1U shared media storage server designed for small teams and remote offices. It supports up to 4 high-speed 2.5” SATA drives and includes dual 10GbE ports, with expandability up to eight Ethernet ports. A fully configured EVO Prodigy supports up to 4 disks and eight connected clients—no Ethernet switch required. Powered by EVO OS and bundled with unlimited licenses for ShareBrowser, Nomad, and Slingshot, it delivers professional-grade collaboration and media management in a space-efficient form factor.

This compact system features a 16” deep 1RU chassis that accommodates four 2.5” enterprise edition disks and is ideal for DSLR workflows, mobile/field artists, and studios with limited rack space. As a workflow appliance, Prodigy is the perfect solution for users of aging SAN systems who will now be able to affordably gain the project sharing, asset management, and collaborative workflow benefits offered by EVO and ShareBrowser.

Base Chassis Physical and Electrical

• 64-bit, multi-core CPU, 1U storage server
• Power Requirement: 100-240VAC 60-50Hz (auto switching)
• Power Supply: 250W, non-redundant
• Maximum Load: 2.5-1.04A
• Operational environment: 40 to 72°F (5 to 22°C)
• Thermal: ~512 BTU/hr
• Physical dimensions: Length 16″ (18″ w/ cables) x Width 17″ with rack tabs x Height 1.75″
• Shipping dimensions: Length 22.5″ x Width 22″ x Height 7.5″ (21lbs loaded)
• Height Requirements: 1U
• SPL: Base chassis with 4 disk drives, at idle, < 47db SPL @ 1m, A-weighted

Rack Requirements

• EIA-310 rack, 4-post with front and rear rails
• Included Mounting rails
  • 0.625″ pitch, round hole (square hole compatible)
  • Inner-rail to inner-rail depth: 25.75″ to 32.25″ (65.4cm – 81.9cm)
  • Rear-rail mount can be flipped to fit a minimum depth of 18.5″, with 7.25″ of rail overhang.

Connectivity and Expansion

• Included ShareBrowser, Nomad, Slingshot: Unlimited
• Included GbE Ports: 0
• Included 10GbE Base-T Ports: 2
• Maximum GbE Ports: 6
• Maximum 10GbE Base-T Ports: 4
• Maximum 10GbE Optical Ports: 2
• Maximum SATA Disks per Chassis: 4
• Maximum Disks per System: 4

Supported RAID Levels

• RAID Levels: 5 and 6

Available Drives (2.5″)

• SSD: ~1TB, ~2TB, ~4TB, ~8TB
