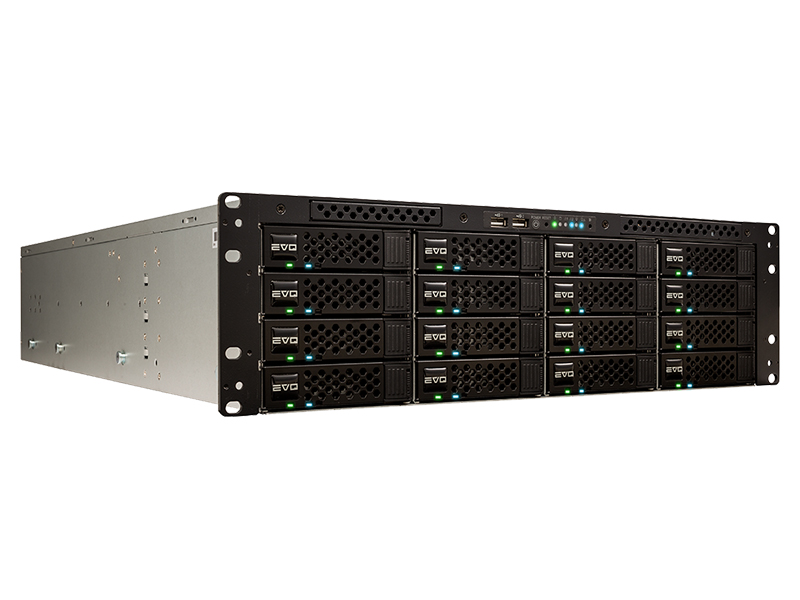

The EVO 16 Bay Shared Media Storage Server is a high-performance, 3U storage solution designed for demanding media workflows. It supports up to 16 SATA or SAS drives in its base configuration and can scale up to 1.8PB per node with expansion units. With built-in dual 10GbE ports and options to add 10/25/100Gb Ethernet, it delivers exceptional speed and connectivity. A fully configured system supports up to 80 disks and 26 clients—without requiring an Ethernet switch. It runs on a robust EVO OS and includes unlimited licenses for ShareBrowser, Nomad, and Slingshot, making it ideal for collaborative media environments.

Base Chassis Physical and Electrical

• 64-bit, multi-CPU, multi-core, 3U storage server
• Power Requirement: 100-240VAC 50-60Hz (auto switching)
• Power Supply: 1300W Redundant (3 650W modules)
• Maximum Load: 20-10A
• Operational environment: 40 to 72°F (5 to 22°C)
• Thermal: ~1297 BTU/hr
• Physical dimensions: Length 28.5″ (32″ w/ cables) x Width 17″ x Height 5.25″
• Shipping dimensions: Length 37″ x Width 24″ x Height 13″ (110lbs loaded)
• Height Requirements: 3U
• SPL: Base chassis with 16 disk drives, at idle, < 60db SPL @ 1m, A-weighted
• EVO connects to standard 120v mains power. Each base unit has 3 power supplies and therefore 3 mains power cables using standard NEMA 5-15 plugs. The base unit will draw about 10A at 120v.

Rack Requirements

• EIA-310 rack, 4-post with front and rear rails
• Included Mounting rails
  • 0.625″ pitch, round hole (square hole compatible)
  • Inner-rail to inner-rail depth: 25.75″ to 32.25″ (65.4cm – 81.9cm)
  • Rear-rail mount can be flipped to fit a minimum depth of 18.5″, with 7.25″ of rail overhang.

Expansion Chassis Physical and Electrical

• Power Requirement: 100-240VAC 50-60Hz (auto switching)
• Power Supply: 720W Redundant (2 720W modules)
• Maximum Load: 10-5A
• Operational environment: 40 to 72°F (5 to 22°C)
• Thermal: ~785 BTU/hr
• Physical dimensions: Length 24.25″ (27.75″ w/ cables) x Width 17″ x Height 5.25″ (19″ rack)
• Shipping dimensions: Length 32.5″ x Width 23″ x Height 12″ (100lbs loaded)
• Height Requirements: 3U

Connectivity and Expansion

• Included ShareBrowser, Nomad, Slingshot: Unlimited
• Included GbE Ports: 0
• Included 10GbE Base-T Ports: 2
• Maximum GbE Ports: 24
• Maximum 10GbE Base-T Ports: 10
• Maximum 10GbE Optical Ports: 12
• Maximum 25GbE Optical Ports: 8
• Maximum 100GbE Optical Ports: 2
• Maximum SATA or SAS Disks per Chassis: 16
• Maximum Disks per System: 80

Supported RAID Levels

• RAID Levels: 5 and 6

Available Drives

• SSD: ~1TB, ~2TB, ~4TB, ~8TB (Enterprise-class RAID-edition 6Gbps SATA)
• HDD: 4TB, 6TB, 8TB, 10TB, 12TB, 22TB (Enterprise-class RAID-edition 6Gbps SATA)
• 12Gbps SAS drives also available
