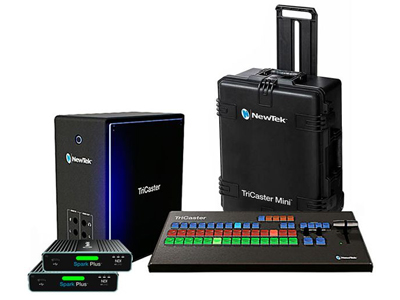

Vizrt Tricaster Mini 4K NDI Bundle

Code: BLO/NT-TCM4KUHDB

Broadcast, stream, and record live productions from virtually anywhere with this Vizrt Tricaster Mini 4K NDI Bundle. The bundle includes the TriCaster Mini which supports up to UHD 4K video input, two HDMI-to-NDI input modules, and the TriCaster Mini control surface.

For purchasing information

Enquire Now

What's In The Box?

  • 1x TriCaster Mini
  • 1x Control Surface for TriCaster Mini
  • 2x IO Modules
  • 1x Custom Travel Case

Broadcast, stream, and record live productions from virtually anywhere with this Vizrt Tricaster Mini 4K NDI Bundle. The bundle includes the TriCaster Mini which supports up to UHD 4K video input, two HDMI-to-NDI input modules, and the TriCaster Mini control surface.

TriCaster Mini 4K

Communicating effectively has never been more important than it is right now and creating content that is just as good as network style TV is what people expect. Ensure your content is available and accessible with one of the most complete video production systems on the planet.

  • Set up and get started in 5 minutes. Don’t believe us? Check this out.
  • Plug-n-Play NDI, no external networks. Add your NDI device and its live.
  • 2 Spark Plus IO input modules directly connect HDMI devices instantly as NDI sources.
  • Stream to all your favorite social channels with the push of a button.
  • 4 NDI connections with PoE makes video, audio, tally, power and control as easy as plugging in an ethernet cable..
  • 8 live video inputs, supporting any combination in resolutions up to 4K UHD.
  • 2 simultaneous live Skype inputs bring guests in from anywhere in the world.
  • Grab a couple of cameras, including your iPhone, and you’re on your way.

True Resolution Independence

Present your audience with an immersive viewing experience defined by amazing clarity and incredible detail. Produce programs, performances, events and live sports in the resolution of your choice, all the way up to true 4K UHD (Ultra High Definition)

Powerful Switching & Compositing

Powered by innovative software-driven technology, TriCaster gives you the tools to turn every frame of video into an artistic masterpiece. Consider the screen a blank canvas and unleash your inner artist with multi-camera switching, mix effects, zero-latency video re-entry, custom animated transitions, a full-motion composition engine, and much more.

Simplified IP Connectivity with NDI®

Say goodbye to the tangled mess of bulky video cables and take advantage of the plug and play simplicity of NDI (Network Device Interface) IP video protocol. Connect to a wide variety of NewTek NDI-enabled products, along with the world’s largest ecosystem of third-party IP video products using a single network cable for video, audio, key, control, tally, and in some cases power over Ethernet.

Skype TX Integration

Conduct two simultaneous live Skype video call with any remote guest, anywhere in the world. TriCaster systems are the only video production systems to feature direct Skype TX software integration with broadcast-quality video and balanced audio, allowing you to present production-ready conversations, interviews, reports, and more—regardless of the caller’s device.

Multi-screen Delivery & Streaming

It’s more important than ever to deliver content to ALL of today’s screens. You can output 16x9 video for traditional video applications. Or, change your aspect ratio to square or vertical video with no compromise in production power and stream that content using the built-in dual encoders to multiple destinations simultaneously. Unlike other products, only TriCaster allows you to switch, stream and record in into a wide array of formats, resolutions, aspect ratios, and frame rates.

Social Media Publication

Share real-time updates and on-demand content across your social media accounts, uploading images and video directly to Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube and more—complete with comments and hashtags.

Real-Time Monitoring and Multiviewers

See everything happening during your production with fully adjustable single-screen or multi-screen monitoring. With three customizable multiviewers, configurable windows and workspace layouts, operator confidence monitors, visual indicators, scopes, and more, you can easily personalize the environment to your preference.

Revolutionary Automation & Teleprompter from MS Word®

With Live Story Creator, script the entire production in your favorite word processor, including production cues (camera takes, transitions, effects, graphics, clips, and more), and export as a .docx file. Load the file into your TriCaster system and run the teleprompter control to execute the entire production. Virtually anyone can run quality and consistent productions without experience or training.

Network Video Input 8 x IP video inputs via NDI®, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates1
  • 2160p 59.94, 50, 29.97, 25
  • 1080p: 59.94, 50, 29.97, 25, 24, 23.976
  • 720p: 59.94, 50, 29.97, 25
  • 480p: 59.94, 50, 29.97, 25
  • SD: 59.94, 50, 25
1Available frame rates determined by model and session video standard (NTSC or PAL)
PTZ Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TX Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Network Video Output 4 x independent IP video mix outputs via NDI®
Stream Output 2 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs 4 x mini display port with output adapters
3 x of the outputs support multiviewers using standard display resolutions
Mix/Effect Buses (M/E)
  • 4 x M/E buses supporting video re-entry
  • 1 x Mix/Effect channel per bus with support for up to 2 sources
  • 2 x KEY layers per bus
DSK Channels 2 x DSK channels
Media 4 x media players
  • 2 x DDR
  • 1 x GFX
  • 1 x Sound
15 x media buffers
  • 5 x animation buffers
  • 10 x graphic buffers
Keyers Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
  • 8 x input keyers
  • 2 x media player keyers
  • 4 x M/E keyers
  • 15 x buffer keyers
COMP Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer
configurations and DVE-style motion sequences
16 x configurable COMP presets per bus
Virtual Sets Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros Record, store, edit and automate commands and user-configured operation sequences
  • Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
  • Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
  • Supports control via web-based interface
Recording 4 x recording channels from either NDI® inputs or Mix outputs (10 x with Premium Access)
  • Records and retains alpha channel data
  • 4 x QuickTime® archival video recorders (Native NDI Codec for recording)2
2QuickTime Player not required for playback in common NLE applications
Signal Monitoring Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Storage
  • Capacity varies by format, resolution and file specification
  • Supports recording to external storage via USB 3.0
Grab Grab full-resolution, deinterlaced still images from external video sources and outputs
Export Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixing Integrated multi-channel audio mixer with support for stereo audio, and DSP’s
Local Audio Input 1 x 1/4” (6.35 mm) balanced mic
2 x 1/4” (6.35 mm) balanced line
Local Audio Output 2 x 1/4” (6.35 mm) balanced line
1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio
  • Native support for network audio input and output via NDI®
  • Embedded audio supported for all NDI® input and output video signals
  • Integrated support3 for Dante™ networking protocol from Audinate®
3Requires Dante Virtual Soundcard license from Audinate (sold separately)
5Requires third-party virtual sound card license (sold separately)
Supported Media File Formats Import, store, and play back multimedia files, with optional transcoding, including:
  • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
  • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
  • Audio: AIFF, MP3, WAV, and more
Processing Video: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz
Throughput Latency ~1.0-1.5 frames
Tally Support for network tally via NDI®
MIDI Support for standard MIDI protocol enabling third-party device control
NIC 2 x 1 Gigabit NIC
System Physical System chassis, including adjustable cable retention bracket
  • 4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm)
  • 9 lbs (4.1 kg)
