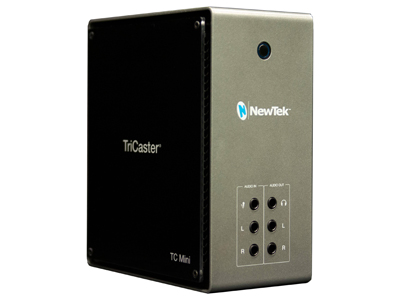

Vizrt Tricaster Mini X HDMI (NDI)

Code: BLO/NT-TCMXHDMI

The Vizrt TriCaster Mini X HDMI is the ultimate live-production tool with multiple HDMI, NDI, mini DisplayPort, and USB connections that support up to 4K video for switching and media playback.

For purchasing information

Enquire Now

The Vizrt TriCaster Mini X HDMI is the ultimate live-production tool with multiple HDMI, NDI, mini DisplayPort, and USB connections that support up to 4K video for switching and media playback. The Mini X can add graphics, record, livestream, and perform other network-driven functions simultaneously, along with four HDMI inputs that accept various AV equipment. The Mini X offers four mini DisplayPort outputs, which come with four HDMI adapters for expanded compatibility. Various internal software controls allow for chromakeying, switching, streaming, and more advanced audio and video control, depending on what suits your production.

HDMI devices connect directly into the Mini X without requiring configuration for seamless integration into your preexisting production layout. Multiple audio ports support both line and microphone inputs as well as line and headphone outputs for improved sound quality and monitoring. Five USB 3.2 Type-A ports can connect the included keyboard and mouse to the system among other USB-friendly devices. A processing latency of just 1.5 frames ensures all of your equipment communicates efficiently.

Key Features

  • HD switching, streaming, and recording up to 4K30 video
  • Real-time social media publishing
  • 4 x HDMI video connections, eight IP video inputs via NDI
  • IP video output via NDI and four mix outputs
  • Multi-channel recording, audio mixing, and internal storage
  • Compatible with major streaming platforms
  • Video playback without additional hardware
  • Built-in live titling and motion graphics

Live Link

  • Render web pages directly into the TriCaster and pull any web page elements into a production without third-party applications from graphics, to images, to videos from internal training platforms.
  • Supported Devices and Programs
  • Two simultaneous Skype video call inputs via software integration
  • Up to eight simultaneous PTZ cameras via serial and network protocols with integrated controls and preset system
  • Four Mix/effect buses supporting video re-entry
  • Five media players and 15 media buffers
  • Integrated LiveMatte chroma and luma keying technology on all source channels and mix/effect buses
  • LiveSet technology with 30+ virtual sets and box effects
  • DataLink for real-time automated data input
  • Embedded digital audio outputs and inputs through HDMI conversion
Specifications
Switching Type Software
Latency 1 to 1.5 Frames
Color Processing 4:4:4YCbCr
Audio Processing 96 kHz
Video Inputs 4 x HDMI
2 x RJ45
Input Video Format HDMI
DCI 4K 25/29.97 fps
1080p 25/29.97/50/59.94 fps
1080i 50/59.94 fps
720p 25/29.97/50/59.94 fps
480p 25/50/59.94 fps
Audio Inputs 1 x 1/4" TRS Analog Female
2 x 1/4" TRS Analog Female
Embedded Audio Input: HDMI 2-Channel
Video Outputs 4 x DisplayPort Female
Audio Outputs 1 x 1/4" Balanced TS Female
1 x 1/4" TRS Stereo Female
Embedded Audio Output: HDMI
Multiview Output 3-Way Multiview
Other I/O 5 x USB-A 3.1/3.2 Gen 2 Input
1 x USB-C 3.1/3.2 Gen 2 Input
Wi-Fi Yes
Bluetooth None
Power I/O 1 x Barrel Input
Dimensions 9.08 x 7.89 x 4.23" / 23.06 x 20.04 x 10.74 cm
Weight 8.4 lb / 3.8 kg
