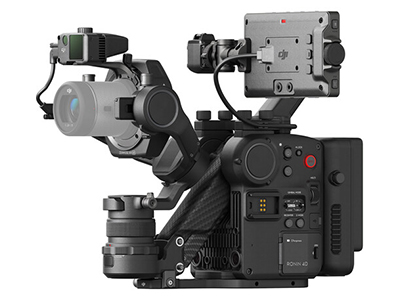

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

Code: CRK/DJIRONIN-4D-6K

Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The "4D" designation refers to the Z-axis (vertical) stabilization built into the X9-6K camera and the three-axis gimbal stabilization.

For purchasing information

Enquire Now

What's In The Box?

  • DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit
  • Zenmuse X9-6K Gimbal Camera
  • DL Mount
  • DL Mount Body Cap
  • DL Mount Lens Cap
  • X9 Gimbal Base Cap
  • Ronin 4D Gimbal Base Cap
  • Main Body
  • 2 x Handgrip
  • Handgrip Extended Control Stick
  • Top Handle
  • TB50 Battery Mount
  • TB50 Intelligent Battery
  • 2 x Handgrip Strap
  • Power Adapter
  • 8 x AC Power Cable
  • TB50 Charging Adapter
  • Baseplate
  • LiDAR Range Finder/Focus Motor Cable
  • USB Type-A to Type-C Cable
  • Ronin 4D Carrying Case
  • Ball-End Allen Key (3mm)
  • 6 x 1/4"-20 Screw (10mm)
  • LiDAR Range Finder
  • LiDAR Range Finder Holder
  • C-Shaped DL Mount Ring
  • 2 x M2-3 Screw (3mm)
  • Ball-End Allen Key (1.5mm)

Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The "4D" designation refers to the Z-axis (vertical) stabilization built into the X9-6K camera and the three-axis gimbal stabilization. Constructed from lightweight carbon fiber and an aluminum/magnesium alloy, this system is ideal for independent content creators, indie filmmakers, and event videographers.

The full-frame capture at rates up to 6K60 in both ProRes HQ and ProRes Raw and Ronin's CineCore 3.0 image processing system with ACES workflow support also suits the 4D as a "B" or 2nd unit camera for larger cine-style productions.

This combo includes the main Zenmuse X9-6K full-frame video camera and a 3-axis gimbal, plus an array of modular monitor, focusing, and control components. Kit items include a DL lens mount, a LiDAR range finder, one TB50 battery, a charging hub, and left and right control handgrips.

All-in-One Camera Gimbal System

    This innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig. Combination design reduces your setup time at the start of the day and in between setups and locations.

  • Included modular components:
    • Left and right control handgrips
    • LiDAR range finder
    • Top handle
    • Baseplate
  • Separately available components:
    • 7" high-bright, touchscreen monitor
    • Wireless video transmitter
    • ProSSD 1TB media drive
    • X9 focus motor
    • Leica M lens mount
    • 3-channel FIZ lens control unit

CineCore 3.0 Imaging Processing System

  • The Zenmuse X9, DJI's full-frame camera, uses a proprietary chip for advanced processing and high-performance computing
  • The Ronin 4D uses the CineCore 3.0 system to support internal recording of Apple ProRes Raw, ProRes 422 HQ, and H.264 video
  • Industry-standard ACES workflow support provide easy compatibility with other cinema cameras

Advanced 4-Axis Stabilization

  • Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves
  • Z-axis stabilization built into the camera, 3-axis stabilization in the gimbal
  • Tilt stabilization uses dual, symmetrical motors
  • Pan and X (roll) axes with additional stiffness buffering
  • Downward ToF (time of flight) sensor
  • Forward and downward-facing dual-vision sensors
  • Built-in IMU (inertial measurement unit) and barometer
  • New and improved stabilization algorithm

Zenmuse X9-6K Camera with DL Lens Mount

  • The D4's DL lens mount supports DJI's current selection of lightweight, carbon fiber 16, 24, 35, and 50mm lenses
  • Full-frame capture with all but the 16mm DL lens
  • Interchangeable lens mounts available for use with Sony E-mount or Leica M-mount lenses
  • Supports ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses
  • Please see the current lens compatibility list here EditSign

ProRes Raw, 422 HQ, and H.264 Capture

  • Captures 6K raw at rates up to 60 fps in full-frame 2.39:1
  • Captures up to 4K raw at rates up to 120 fps in Super 35 2.39:1
  • Captures up to 4K raw at rates up to 96 fps in Super 35 17:9
  • Capture up to 6K60 ProRes 422 HQ video in full-frame 2.39:1
  • Capture up to 4K120 ProRes 422 HQ video in Super 35 2.39:1
  • Capture up to 2K120 ProRes 422 HQ or H.264 in 17:9 full-frame

Dual Native ISO

  • 800/5000 dual native ISO
  • EI 200 to 12800
  • 14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions

In-Camera ND Filters

  • Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions
  • Especially handy for outdoor shoots with changing cloud cover
  • Motorized filter system
  • Carry in "built" mode for easy company moves

LiDAR Focus Control

  • LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range
  • Excellent focusing performance even in low-light environments
  • Focus pulling can be viewed graphically, thanks to a built-in depth meter
  • Intuitive and highly accurate focusing system
  • Modular LiDAR focusing module attached to the front of the D4 rig

Autofocus Features

  • Maintains focus, even when motion blur is produced by fast-moving subjects
  • Separately available focus motor for use with manual lenses
  • Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators

Automated Manual Focus

  • The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus
  • Operators can grab the focus wheel of the right handgrip at any time to manually focus
  • Handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes

ActiveTrack Pro

  • DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate
  • ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system

Dual Focus, Iris, and Control Grips

  • Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.)
  • Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode

Single User or Crew-Assisted Operation

  • Top-notch stabilization in a lightweight form
  • Ideal for both solo operators as well as assistant-accompanied shoots
  • Designed to counter footsteps from inexperienced gimbal shooters
  • Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounted
  • Sport mode is available with the touch of a button, accommodating faster-paced action
  • Use in standard, underslung, jib, and crane setups

Media Storage Options

  • Requires a ProSSD 1TB drive (not included) to capture raw footage
    • USB Type-C port for external recording, no reader needed to offload footage
  • Integrated CFexpress Type-B card slot

Built-In 5.5" Touchscreen Monitor

  • 5.5" 1920 x 1080 monitor
  • 1000 cd/m² display
  • Touchscreen control
  • Rotates for optimal viewing

Audio Recording

  • Integrated stereo microphones capture dual-channel 24-bit audio
  • Built-in 3.5mm audio input port and XLR port via expander plate

Power Options

  • Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2
  • Each battery provides up to 2.5 hours of capture time
  • Batteries charge fully in approximately 1.5 hours
  • Support auto-heating for cold weather use
  • AC adapter for uninterrupted shooting
Imaging
Lens Mount DL
Interchangeable Lens Mount Yes
Sensor Resolution Effective: 24.1 Megapixel
Sensor Type Full-Frame CMOS
Image Stabilization Digital, 4-Axis
Built-In ND Filter Mechanical Filter Wheel with Clear, 1 Stop (1/2), 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128), 8 Stop (1/256), 9 Stop (1/512) ND Filters
Internal Filter Holder Yes
ISO Sensitivity 200 to 12,800
Shutter Type Rolling Shutter
Shutter Speed 1/24 to 1/8000 sec
Advertised Dynamic Range 14 Stops
White Balance 2000 to 11,000K
Gimbal
Rotation Range Yaw (Pan): 285°
Pitch (Tilt): 210° (-55 to 155°)
Roll: 70° (-35 to 35°)
Z-Axis Adjustment Range 5.1" / 130 mm
Follow Speed Pan/Tilt/Roll: 360°/s using DJI Master Wheels or Pro Force
Pan/Tilt/Roll: 120°/s using Ronin 4D Handgrip
Load Capacity 2.1 lb / 960 g
Internal Recording
Raw Recording Raw:
6008 x 3168 at 23.98/24/25/29.97/30/48 fps (3.4 Gb/s)
Recording Modes ProRes 422HQ:
6008 x 3168p at 23.98/24/25/29.97/30/50/59.94/60 fps
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps
2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps
H.264 4:2:0 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps
2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60/72/100/120 fps
Gamma Curve HDR-HLG, Rec709
Audio Recording 2-Channel 48 kHz LPCM Audio
Still Image Support None
External Recording
Video Output USB:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
USB:
2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
SDI/BNC:
4096 x 2160p at 23.98/24/25/29.97/59.94/60 fps
2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Raw Output External Recorder:
6008 x 3168 at 23.98/24/25/29.97/30/50/59.94/60/100/120 fps
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60/100/120 fps
2048 x 1080 at 23.98/24/25/29.97/30/50/59.94/60/100/120 fps
IP Streaming None
Interface
Media/Memory Card Slot Single Slot: DJI ProSSD
Single Slot: CFexpress Type B
Video Connectors 1 x BNC (3G-SDI) Output
1 x HDMI Output
Audio Connectors 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Built-In Microphone Type Stereo
Other I/O 1 x USB Type-C USB 3.1 Gen 1 Data, Video Input/Output
1 x Proprietary Monitor Output
1 x BNC Timecode
Monitor
Size 5.5"
Resolution 1920 x 1080
Display Type Tilting Touchscreen LCD
EVF
EVF Optional, Not Included
Power
Battery Type DJI TB50
Power Connectors 1 x Barrel (12 to 30 VDC) Input
Environmental
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Physical
Material of Construction Carbon Fiber, Aluminum, Magnesium Alloy
Dimensions 12.2 x 11.4 x 10.9" / 309 x 290 x 277 mm (With Protrusions)
9.3 x 6.3 x 4.5" / 235 x 160 x 115 mm (Without Protrusions)
Weight 10.3 lb / 4.67 kg
3.2 lb / 1.45 kg
2.29 lb / 1.04 kg
