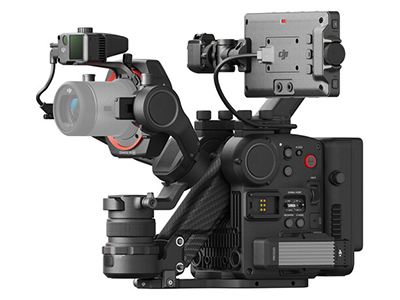

DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit

Code: CRK/DJIRONIN-4D-8K
$18,588.00

Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The "4D" designation refers to the Z-axis (vertical) stabilization built into the X9-8K camera and the three-axis gimbal stabilization.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit is back in stock.

What's In The Box?

  • DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
  • Zenmuse X9-8K Gimbal Camera
  • DL Mount
  • DL Mount Body Cap
  • DL Mount Lens Cap
  • X9 Gimbal Base Cap
  • Ronin 4D Gimbal Base Cap
  • Main Body
  • 2 x Handgrip
  • Handgrip Extended Control Stick
  • Top Handle
  • High-Bright Main Monitor
  • TB50 Battery Mount
  • TB50 Intelligent Battery
  • 2 x Handgrip Strap
  • Power Adapter
  • 8 x AC Power Cable
  • TB50 Charging Adapter
  • Baseplate
  • LiDAR Range Finder/Focus Motor Cable
  • USB Type-A to Type-C Cable
  • Ronin 4D Carrying Case
  • Ball-End Allen Key (3mm)
  • 6 x 1/4"-20 Screw (10mm)
  • LiDAR Range Finder
  • LiDAR Range Finder Holder
  • C-Shaped DL Mount Ring
  • 2 x M2-3 Screw (3mm)
  • Ball-End Allen Key (1.5mm)

Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The "4D" designation refers to the Z-axis (vertical) stabilization built into the X9-8K camera and the three-axis gimbal stabilization.

Constructed from lightweight carbon fiber and an aluminum/magnesium alloy, this system is ideal for independent content creators, indie filmmakers, and event videographers. The full-frame capture at rates up to 8K30 in ProRes HQ and 8K75 in ProRes Raw and Ronin's CineCore 3.0 image processing system with ACES workflow support also suits the 4D as a "B" or 2nd unit camera for larger cine-style productions.

This combo includes the main Zenmuse X9-8K full-frame video camera and a 3-axis gimbal, plus an array of modular monitor, focusing, and control components. Kit items include a DL lens mount, a LiDAR range finder, one ProSSD 1TB drive, one TB50 battery, a charging hub, and left and right control handgrips.

All-in-One Camera Gimbal System

    This innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig. Combination design reduces your setup time at the start of the day and in between setups and locations

  • Included modular components:
    • Left and right control handgrips
    • ProSSD 1TB media drive
    • LiDAR range finder
    • Top Handle
    • Baseplate
  • Separately available components:
    • 7" high-bright, touchscreen monitor
    • Wireless video transmitter
    • X9 focus motor
    • Leica M lens mount
    • 3-channel FIZ lens control unit

CineCore 3.0 Imaging Processing System

  • The Zenmuse X9, DJI's full-frame camera, uses a proprietary chip for advanced processing and high-performance computing
  • The Ronin 4D uses the CineCore 3.0 system to support internal recording of Apple ProRes Raw, ProRes 422 HQ, and H.264 video
  • Industry-standard ACES workflow support provide easy compatibility with other cinema cameras

Advanced 4-Axis Stabilization

  • Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves
  • Z-axis stabilization built into the camera, 3-axis stabilization in the gimbal
  • Tilt stabilization uses dual, symmetrical motors
  • Pan and X (roll) axes with additional stiffness buffering
  • Downward ToF (time of flight) sensor
  • Forward and downward-facing dual-vision sensors
  • Built-in IMU (inertial measurement unit) and barometer
  • New and improved stabilization algorithm

Zenmuse X9-8K Camera with DL Lens Mount

  • The D4's DL lens mount supports DJI's current selection of lightweight, carbon fiber 16, 24, 35, and 50mm lenses
  • Full-frame capture with all but the 16mm DL lens
  • Interchangeable lens mounts available for use with Sony E-mount or Leica M-mount lenses
  • Supports ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses
  • Please see the current lens compatibility list here

Captures Raw, 4:22 HQ, and H.264

  • Captures 8K full-frame raw at rates up to 75 fps in full-frame 2.39:1
  • Captures up to 5.5K raw at rates up to 60 fps in Super 35 17:9
  • Capture up to 8K30 ProRes 422 HQ video in 17:9 full-frame
  • Capture up to DCI 4K60ProRes 422 HQ or H.264 in 17:9 full-frame or Super35

Dual Native ISO

  • 800/5000 dual native ISO
  • EI 200 to 12800
  • 14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions

In-Camera ND Filters

  • Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions
  • Especially handy for outdoor shoots with changing cloud cover
  • Motorized filter system
  • Carry in "built" mode for easy company moves

LiDAR Focus Control

  • LiDAR (light detection and ranging) system usesup to 43,200 ranging points within a 33' range
  • Excellent focusing performance even in low-light environments
  • Focus pulling can be viewed graphically, thanks to a built-in depth meter
  • Intuitive and highly accurate focusing system
  • ModularLiDAR focusing module attached to the front of the D4 rig

Autofocus Features

  • Maintains focus, even when motion blur is produced by fast-moving subjects
  • Separately available focus motor for use with manual lenses
  • Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators

Automated Manual Focus

  • The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus
  • Operators can grab the focus wheel of the right handgrip at any time to manually focus
  • Handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes

ActiveTrack Pro

  • DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate
  • ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system

Dual Focus, Iris, and Control Grips

  • Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.)
  • Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode

Single User or Crew-Assisted Operation

  • Top-notch stabilization in a lightweight form
  • Ideal for both solo operators as well as assistant-accompanied shoots
  • Designed to counter footsteps from inexperienced gimbal shooters
  • Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounted
  • Sport mode is available with the touch of a button, accommodating faster-paced action
  • Use in standard, underslung, jib, and crane setups

Media Storage Options

  • Requires a ProSSD 1TB drive (included) to capture raw footage
    • USB Type-C port for external recording; no reader needed to offload footage
  • Integrated CFexpress Type-B card slot

Built-In 5.5" Touchscreen Monitor

  • 5.5" 1920 x 1080 monitor
  • 1000 cd/m² display
  • Touchscreen control

Audio Recording

  • Integrated stereo microphones capture dual-channel 24-bit audio
  • Built-in 3.5mm audio input port and XLR port via expander plate

Power Options

  • Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2
  • Each battery provides up to 2.5 hours of capture time
  • Batteries charge fully in approximately 1.5 hours
  • Support auto-heating for cold weather use
  • AC adapter for uninterrupted shooting
Imaging
Lens Mount DL
Interchangeable Lens Mount Yes
Sensor Resolution Effective: 35.4 Megapixel
Sensor Type Full-Frame CMOS
Image Stabilization Digital, 4-Axis
Built-In ND Filter Mechanical Filter Wheel with Clear, 1 Stop (1/2), 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128), 8 Stop (1/256), 9 Stop (1/512) ND Filters
Internal Filter Holder Yes
ISO Sensitivity 800 to 5000 (Native)
200 to 12,800
Shutter Type Rolling Shutter
Shutter Speed 1/24 to 1/8000 sec
Advertised Dynamic Range 14 Stops
White Balance 2000 to 11,000K
Gimbal
Rotation Range Yaw (Pan): 285°
Pitch (Tilt): 210° (-55 to 155°)
Roll: 70° (-35 to 35°)
Z-Axis Adjustment Range 5.1" / 130 mm
Follow Speed Pan/Tilt/Roll: 360°/s using DJI Master Wheels or Pro Force
Pan/Tilt/Roll: 120°/s using Ronin 4D Handgrip
Load Capacity 2.1 lb / 960 g
Internal Recording
Raw Recording Raw:
8192 x 4320
Recording Modes ProRes 422HQ:
8192 x 4320p at 23.98/24/25/29.97/30 fps
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/120 fps
H.264 4:2:0 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60 fps
Gamma Curve HDR-HLG, Rec709
Audio Recording 2-Channel 48 kHz LPCM Audio
Still Image Support None
External Recording
Video Output USB:
8192 x 4320p at 23.98/24/25/29.97/30 fps
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
SDI/BNC:
8192 x 4320p at 23.98/24/25/29.97/30 fps
4096 x 2160p at 23.98/24/25/29.97/59.94/60 fps
Raw Output USB In Raw, Full Frame Mode:
8192 x 4320 at 23.98/24/25/29.97/30/50/59.94/60/72/75 fps
IP Streaming None
Interface
Media/Memory Card Slot Single Slot: DJI ProSSD
Single Slot: CFexpress Type B
Video Connectors 1 x BNC (3G-SDI) Output
1 x HDMI Output
Audio Connectors 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Built-In Microphone Type Stereo
Other I/O 1 x USB Type-C USB 3.1 Gen 1 Data, Video Input/Output
1 x Proprietary Monitor Output
1 x BNC Timecode
Monitor
Size 5.5"
Resolution 1920 x 1080
Display Type Tilting Touchscreen LCD
EVF
EVF Optional, Not Included
Power
Battery Type DJI TB50
Power Connectors 1 x Barrel (12 to 30 VDC) Input
Environmental
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Physical
Material of Construction Carbon Fiber, Aluminum, Magnesium Alloy
Accessory Mount 2 x 1/4"-20 Female
1 x 3/8"-16 Female
2 x Cold Shoe Mount
Dimensions 12.2 x 11.4 x 10.9" / 309 x 290 x 277 mm (With Protrusions)
9.3 x 6.3 x 4.5" / 235 x 160 x 115 mm (Without Protrusions)
Weight 10.3 lb / 4.67 kg
3.2 lb / 1.45 kg
2.29 lb / 1.04 kg
