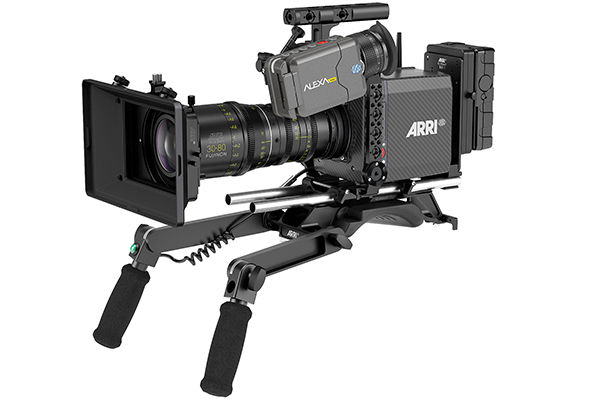

ARRI Alexa Mini

Code: AALXMCB
Compact, lightweight and self-contained, the ARRI ALEXA Mini is a versatile additional tool in the ALEXA camera range. Crews will find that the ALEXA Mini perfectly complements their ALEXA shooting kit.

Key features

  • Versatile additional tool in the ALEXA camera range
  • Exciting variety of application areas
  • Super-lightweight carbon body
  • Exchangeable lens mounts
  • ALEXA sensor and image quality with internal 4:3 & ARRIRAW recording
  • Integrated lens motor control and ND filters
  • Perfect for gimbals and multicopters
  • Future-proof technology with 4K UHD, HDR & HFR recording

Compact, lightweight and self-contained, the ARRI ALEXA Mini is a versatile additional tool in the ALEXA camera range. Crews will find that the ALEXA Mini perfectly complements their ALEXA shooting kit, eliminating the complications of working with third-party cameras for specialized shots and keeping everything within a single system that is trusted all over the world.

Resolution 4K
3.2K
2K
HD
Mount Type PL Mount
Titanium with L-Bus connector and LDS
Frame Rate Up to 200 fps in HD
Recording Media CFast 2.0
Recording Codecs ARRIRAW,ProRes
Colour Options Rec 709,Log C
Sensor 35mm ARRI ALEV III CMOS with Bayer pattern color filter array

Note:The ALEXA Mini sensor is the same ALEV III sensor which is used in other ALEXA models, and in the AMIRA. It offers the same frame rates as the AMIRA sensor but also supports a 4:3 recording mode, like ALEXA.
Base Sensitivity EI 800 base sensitivity
Exposure Latitude 14+ stops over the entire sensitivity range
EI 160 to EI 3200
Weight Body only with titanium PL lens mount:
~ 2.3 kg/5 lbs
Power Input 10.5-34 V DC, Lemo 8-pin
User Keys 3 soft keys on camera body
