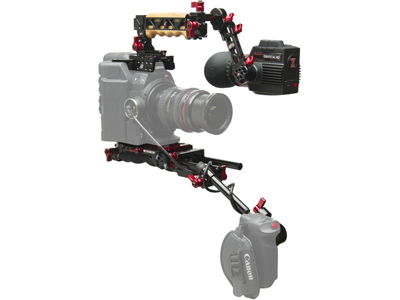

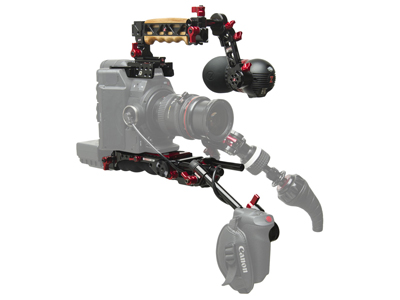

Zacuto C300 Mark II Recoil Kit & Gratical HD Bundle

Code: ZAC/Z-C3002ERGHDB2
Bundle and save when you buy a Gratical EVF & Next Generation Recoil Rig Zacuto’s universal Next Generation Recoil rigs are all about BALANCE! You cannot shoot with a rig that is not balanced or you’ll be fighting fatigue on long shoots. The Gratical HD EVF is an integral piece of any Zacuto Recoil rig. Electronic viewfinders, like the Gratical EVF, are a pivotal tool in any filmmakers bag, providing accessibility, stability, focusability and so much more.

For purchasing information

Enquire Now

Bundle and save when you buy a Gratical EVF & Next Generation Recoil Rig!

The Canon C300 Mark II Recoil Rig

The Canon C300 Mark II EVF Recoil is a balanced, shoulder mounted rig that includes our VCT Pro baseplate and Grip Relocator to position camera control at a convenient handgrip.

This is a Next Generation Recoil rig designed for optimal balance and comfort when shoulder mounted or on a tripod. With lenses and cameras being similar weights, the balance point is where the lens meets the camera body. In a Recoil rig, the balance point needs to be directly over your shoulder which puts the camera behind you. This requires focus, monitoring and camera controls to be relocated forward, creating a lighter and shorter rig.

Kit Includes:

  • VCT Pro – this baseplate has a sliding top plate for quickly removing the camera from the rig or fast len changes, a built-in, curved shoulder pad, a v-wedge tripod connector (with ¼” 20 and 3/8" 16 screw option). It has removable and extendable 6.5” iris rods and rows of ¼” 20 screw holes along the sides for accessories. It has quick release 15mm rod parts in the rear. The recessed rod mount offers maximum accessory capable space under your camera lens.
  • Grip Relocator for C100/300/500 – this articulating handgrip with rod cap incorporates our Grip Relocator for your Canon C100/300 removable grip. It provides full articulation via lever and our exclusive right-angle cable connects to the port on your camera. Trigger on/off control, lens aperture control, waveform, 1:1 zoom, zebras and more.
  • C300 Mark II Helmet Kit – mounts directly to the top of the C300 Mark II in place of the Canon top handle. Offers multiple ¼” 20 and ⅜” 16 mounting screw holes to attach a variety of accessories as well as a spot to mount the C300 Mark II microphone. Includes the rock solid Recoil Handle top grip that accepts two coldshoe accessories and has a quick release 15mm rod port. Our handle allows you to quickly take the handle off for travelling.
PLEASE NOTE: This rig requires the addition of a monitor or Zacuto EVF.

The Graticle HD EVF

Over two years in the making, Zacuto brought five different engineering companies together to bring this newest EVF concept to life. The Gratical HD Micro-OLED electronic viewfinder uses an extremely powerful FPGA dual core processor and Zacuto designed Micro-OLED displays to provide a hugely expanded contrast range.
