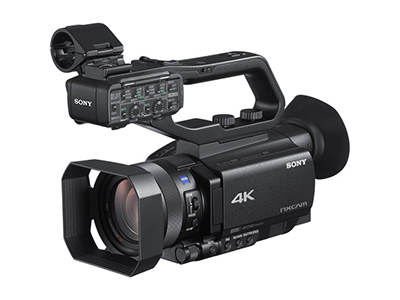

Sony HXR-NX80 Compact 4K Camcorder

Item Code:

The HXR-NX80 offers professional quality 4K with advanced features such as high-speed auto focus, Instant HDR workflow, up to 1000fps (PAL, 960fps NTSC), super slow motion and streaming at 2.4GHz.

RRP: 0   Save:

For purchasing information

Amazingly fast precision auto focus

The HXR-NX80 incorporates an advanced Fast Hybrid AF system, alongside face detection and lock-on auto focus technology, making it easy to focus and track a subject while filming.

First NXCAM professional palm camcorder with 4K HDR

The HXR-NX80 is the first professional palm-sized camcorder to deliver stunning 4K High Dynamic Range (HDR) content with Hybrid Log-Gamma (HLG) file-based workflows. S-Log3 is also supported, enabling you to create beautiful imagery with a wide colour gamut and colour range.

3840 x 2160 pixels. Connect this product to HDR (HLG) compatible Sony TV via a USB cable when displaying 4K HDR movies.

Super slow motion up to 960fps* and S&Q motion up to 120fps**

High Frame Rate shots can turn everyday actions into slow motion ballet. The HXR-NX80 delivers a stunning 120 frames per second (fps) in Full HD XAVC S 10-bit 4:2:0, giving you continuous five-times slow motion expression. Higher frame rates up to 960fps using S&Q motion cache recording are also possible for even greater creative flexibility.

*960fps (NTSC). 1000fps (PAL). **120fps (NTSC). 100fps (PAL).

Versatile connections for professional workflows

The camcorder features a Multi-Interface (MI) Shoe, HDMI and remote interface to connect with and control remotely a wide variety of compatible Sony accessories, including creating a simple live solution when connected to the optional MCX-500 Multi Camera Live Producer and RM-30BP Remote Commander.

Revolutionary imaging performance with Exmor RS

To deliver imaging performance previously impossible for a compact camcorder. A large 14.2-megapixel (effective) 1.0-type stacked CMOS image sensor delivers beautiful background bokeh defocus effects and superior sensitivity for capturing high-quality images with less noise, even under dark or bright conditions. This sensor integrates up to 273 phase-detection AF points that densely cover approx. 84% of the image area, for precise tracking of subjects throughout the shooting frame.

The sensor also gives you low noise and less blur because more light reaches the sensor, offering clear and steady pictures even in a dark scene with minimum illumination 1.7 lux*.

*LOW LUX mode.

Instant HDR workflows

Shoot, edit and view HDR content in HLG without the need for additional colour grading.

As the expanding need for HDR content continues, internet video platforms and professionals producing corporate or event content are paying more attention to the added value of HDR. They need to deliver content quickly, without compromising on imaging expression and quality of content. To meet this demand, the HXR-NX80 offers Hybrid Log-Gamma (HLG) recording, in addition to S-Log3, for easy file-based workflows, while achieving the image quality of HDR. This simple workflow enables the shooting, editing and viewing of HDR content in HLG, without devoting a lot of time to post-production work and additional colour grading.

Professional quality 4K (QFHD) and HD

The HXR-NX80 allows you to record a wide range of 4K (QFHD) and HD formats for maximum flexibility from this stunning palm-sized camcorder. The NX80 supports XAVC S 4K 100/60 Mbps recordings at 30p/25p/24p, XAVC S and AVCHD.

Networked for high mobility

The HXR-NX80 comes with 2.4GHz Wi-Fi as standard – simply turn on and log onto your preferred network to enable a host of advanced wireless production features:

Ustream® direct streaming allows you to share scenes as they happen with high quality picture and sound without a switcher.

Wi-Fi/NFC (Near Field Communication) with Content Browser Mobile™ allows the HXR-NX80 to be remotely controlled from a smartphone or tablet computer (iOS 9.0 – 10.3 or Android 4.4 through 7.1) via a Wi-Fi connection. One-touch authentication is also possible with smartphones that offer NFC connectivity

Superb quality monitoring with enhanced OLED viewfinder

You have superb monitoring options with the NX80: an enhanced 0.39-type 2359K dot OLED viewfinder and 3.5-type 1550K dot LCD. The super high resolution OLED viewfinder offers excellent quality brightness, contrast and response, giving you better precision of manual focus operations and eliminating any colour-breaking phenomenon. The LCD gives you further flexible composition options.

Simple live solution

The HXR-NX80 is designed to work seamlessly with Sony’s MCX-500 Multi Camera Live Producer, a robust and cost-effective switcher that makes it easy for one person to run a multi-camera live event shoot. When used with the MCX-500 and Remote Commander RM-30BP, a tally indicator will automatically appear on each HXR-NX80’s LCD panel and viewfinder – a red icon indicates when the shot is live (PGM) while green indicates preview mode (PVW). The MCX-500 supports up to nine video inputs, five channel stereo inputs, five channel stereo inputs including XLR with both internal recording and live streaming via Ustream™, Facebook Live, and Youtube Live

* *Facebook Live and YouTube Live available with V2.0 firmware.

Enhanced Fast Hybrid auto focus captures action

Enhanced Fast Hybrid auto focus (AF) comprises a number of features: phase-detection AF with up to 273 reference points covering approximately 84% of the image area, face detection and lock-on auto focus technology to estimate subject movement. They all work together seamlessly to capture fast-moving subjects with amazing sharpness.

Stunning slow motion in Full HD

High Frame Rate shots can turn everyday actions into slow motion ballet. The HXR-NX80 delivers up to 120 frames* per second (fps) in Full HD, giving you a maximum of five-times slow motion expression. There’s no sacrifice in bit depth and no ‘windowing’ of the sensor. So there’s no crop factor, no loss in angle of view. Higher frame rates of 240, 480 and 960fps are also possible at specific resolutions.

*120fps (NTSC). 100fps (PAL).

Wide-angle zoom lens with great control

The HXR-NX80 is supplied with a fixed 29mm wide-angle ZEISS Vario-Sonnar T lens, ideal for capturing panoramic landscapes. The 12x optical zoom can be increased to 18x with Clear Image Zoom, maintaining 4K resolution using Super Resolution Technology or 24x in HD. In addition, the digital extender can double this range again, up to 48x zoom.

The camcorder’s lens ring enables smooth, natural adjustment of focussing or zooming, depending on which mode is selected; while the manual dial and buttons on the side of the body allow swift and easy adjustment of IRIS (aperture), ISO/GAIN and shutter speed.

Dual XLR inputs

The NX80 has two XLR connecters – so even if you remove the handle with its standard, easy-access XLR connector then a second on the body is still available, making it ideal for applications such as shooting in a confined space, such as a car interior, or when mounting on a gimbal.

Remote operation

The HXR-NX80 has a featured remote interface (2.5 mm stereo mini-mini jack) wired interface. Using a wired remote controller such as the RM-1BP or RM-30BP the focus, zoom, rec start/stop and rec review can be controlled remotely. The camcorder can connect to the optional RM-30BP and MCX-500 Multi Camera Live Producer to form a simple live solution.

Easily synchronise multiple camcorders

When shooting with multiple camcorders, you can synchronise the timecode of each camcorder using Content Browser Mobile™ (CBM) smartphone application* with optional CBKZ-WTCL upgrade. With this feature, all camcorders can synchronise to the primary camcorder you select or to a manually set time – whichever you prefer.

*Version 3.0 Content Browser Mobile™ required. Compatible with iOS 9.0 through to 10.3, or Android 4.4 through to 7.1.

Specifications

General
Weight Approx. 955g (with lens hood, eyecup)
Approx. 1320g (with lens hood, handle, eyecup, NP-FV70A battery)
Dimensions (W x H x D) 121.0×104.0×274.5 (With the accessories (lens hood, large eyecup) ,excluding the grip belt and including the projecting parts)
Power Requirements DC In: 8.4V
Battery: 7.4V
Power Consumption Approx. 5.7 W (while recording with viewfinder and XAVC S 4K 2160/30p 60Mbps)
Approx. 6.1 W (while recording with LCD and XAVC S 4K 2160/30p 60Mbps)
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to +60°C
Battery Operating Time Approx. 155min. with NP-FV70A battery (while recording with LCD, XAVCS 4K 2160/30p, 60Mbps)
Approx. 265 min. with NP-FV70A battery (while playing with LCD, XAVCS 4K 2160/30p, 60Mbps)
Recording Format (Video) XAVC S 4K : MPEG-4 AVC/
XAVC S HD : MPEG-4 AVC/
XAVC S Proxy: MPEG-4 AVC/H.264 4:2:0 Long profile
AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible
Recording Format (Audio) XAVC S 4K : Linear PCM 2ch 16bit, 48kHz
XAVC S HD : Linear PCM 2ch, 16bit, 48kHz
XAVC S Proxy : Linear PCM 2ch, 16bit, 48kHz
AVCHD : Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz
Recording Frame Rate XAVC S 4K (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps
XAVC S HD (1920 x 1080) @120p, 100p 100Mbps/60Mbps
XAVC S HD (1920 x 1080) @59.94p, 50p 50/25Mbps
XAVC S HD (1920 x 1080) @29.97p, 25p 50/16Mbps
XAVC S HD (1920 x 1080) @23.98p 50Mbps
XAVC S Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p 9Mbps
XAVC S Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p 3Mbps
AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28 Mbps)
AVCHD (1920 x 1080) @59.94i/50i FX mode (24 Mbps) FH mode(17 Mbps)
AVCHD (1920 x 1080) @29.97p/25p/23.98p, FX mode (24 Mbps)
AVCHD (1440 x 1080) @59.94i, 50i LP mode (5Mbps)
AVCHD (1280 x 720) @59.94p, 50p, HQ mode (9 Mbps)
Recording/Playback Time XAVC S 4K, HD @LPCM 2ch 100 Mbps: Approx. 75 min with 64 GB memory card
XAVC S 4K, HD @LPCM 2ch 60 Mbps: Approx. 125 min with 64 GB memory card
XAVC S HD @LPCM 2ch 50 Mbps: Approx. 150 min with 64 GB memory card
XAVC S HD @LPCM 2ch 25 Mbps: Approx. 300 min with 64 GB memory card
XAVC S HD @LPCM 2ch 16 Mbps: Approx. 465 min with 64 GB memory card
AVCHD @LPCM 2ch PS Mode: Approx. 305 min with 64 GB memory card
AVCHD @LPCM 2ch FX Mode: Approx. 360 min with 64 GB memory card
AVCHD @LPCM 2ch FH Mode: Approx. 495 min with 64 GB memory card
AVCHD @LPCM 2ch HQ Mode: Approx. 880 min with 64 GB memory card
Recording/Playback Time (continuous) AVCHD @LPCM 2ch LP Mode: Approx. 1540 min with 64 GB memory card
Lens
Lens Mount Fixed
Zoom Ratio 12x (optical), servo
Focal Length f=9.3 - 111.6mm
equivalent to f=29.0 - 348.0mm on 35 mm lens(16:9)
equivalent to f=32.8 - 393.6mm on 35mm lens(3:2)
Aperture F2.8 - F4.5
Focus AF/MF selectable, 10 mm to ∞ (Wide), 1000 mm to ∞ (Tele)
Image Stabilizer ON/OFF selectable, shift lens
Filter Diameter M62 mm
Camera
Imging Device (Type) 1.0-type (13.2mm x 8.8mm) back-illuminated Exmor RS CMOS sensor
Effective Pixels Approx.14.2M pixels (16:9) / Approx.12.0M pixels (3:2)
Built-in Optical Filters OFF: Clear, 1 : 1/4ND, 2: 1/16ND, 3: 1/64ND
Minimum Illumination Standard [60i] 3lux(1/60 Shutter Speed, gain 33dB)
Standard [50i] 3lux(1/50 Shutter Speed, gain 33dB)
LowLux [60i] 1.7lux(1/30 Shutter Speed, gain 33dB)
LowLux [50i] 1.7lux(1/25 Shutter Speed, gain 33dB)
Shutter Speed [60i]: 1/8 - 1/10,000 (1/6 - 1/10,000 when shooting with 24p) (1/125 - 1/10,000 when shooting with 120p) [50i]: 1/6 -1/10,000 (1/100 - 1/10,000 when shooting with 100p)
Slow & Quick Motion Function [60i]:2160p:Frame rate selectable 1,2,4,8,15,30fps
[50i]:2160p:Frame rate selectable 1,2,3,6,12,25fps
[60i]:1080p:Frame rate selectable 1,2,4,8,15,30,60,120fps
[50i]:1080p:Frame rate selectable 1,2,3,6,12,25,50,100fps
Super Slow Motion [60i]1080p:Frame rate selectable 240,480,960fps
[50i]:1080p:Frame rate selectable 250,500,1000fps
White Balance Pre-set (Indoor:3200K, Outdoor:5600K ± 7 steps, Colour temperature set range:2300-15000K) One push A, B, Auto selectable
Gain -3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC
Gamma Curve Selectable
Monitoring
Viewfinder 1.0cm (0.39 type) OLED Approx. 2.36M dots
LCD 8.8cm (3.5 type) Approx. 1.56M dots
Media
Type Memory Stick Pro Duo™ and SD/SDHC/SDXC compatible x1 SD/SDHC/SDXC x1
Wi-Fi/NFC
Supported format IEEE 802.11 b/g/n
Frequency band 2.4 GHz bandwidth
Security WEP/WPA-PSK/WPA2-PSK
NFC NFC Forum Type 3 Tag compliant
Input / Output
Audio Input 2 x XLR-type 3-pin (female), line/mic/mic +48 V selectable
Video Output Integrated into Multi/Micro USB jack (×1), Composite 1.0Vp-p, 75Ω
Audio Output Integrated into Multi/Micro USB jack
USB Multi/Micro USB jack
Headphone Output Stereo mini jack
Speaker Output Monaural
DC Input DC jack
Remote Integrated into Multi/Micro USB jack, Stereo mini-mini jack (Φ2.5mm)
HDMI Output 1 x Type A
Built-in Microphone Omni-directional stereo electret condenser microphone
