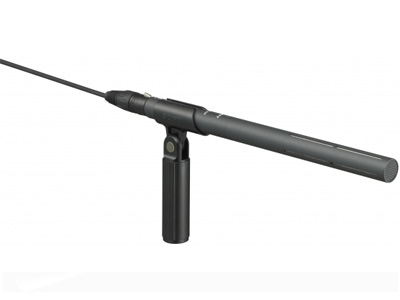

http://www.lemac.com.au/site/DefaultSite/filesystem/images/sony/ECM-674.jpg The Sony ECM-674 is an affordable shotgun-type electret condenser microphone, which delivers excellent sound performance in field and studio productions.

SEARCH SHOP

Sony

Sony ECM-674 Electret Condenser Shotgun Mic

Item Code: SOC/ECM674

The Sony ECM-674 is an affordable shotgun-type electret condenser microphone, which delivers excellent sound performance in field and studio productions.

RRP: 0   Save:

  • Qty:
  • Price:
    $455.00
    inc. GST

Found this item cheaper elsewhere? Let us know

The Sony ECM-674 is an affordable shotgun-type electret condenser microphone, which delivers excellent sound performance in field and studio productions.

Offering high-sensitivity, low-noise characteristics and flat-and-wide frequency response in a compact and lightweight design, the ECM-674 is well-suited for use with Sony camcorders such as the HDV™ Series, DVCAM™ Series, and XDCAM™ Series. In addition, its two-way powering feature allows for both microphone power operation and battery operation. With its high performance, affordable price, and great versatility, the ECM-674 microphone is an ideal choice for a range of sound-acquisition applications.

  • Superb Sound Quality

    The ECM-674 offers an excellent sensitivity of -36 dB (0 dB=1 V/Pa.) and low inherent-noise level of less than 17 dB SPL. This allows the microphone to be used for clear voice pick-up even in noisy environments

  • Two-way Powering

    A two-way powering capability allows the ECM-674 to be driven by microphone power or batteries, making it suitable for both camcorder mounting and many other sound-gathering applications. Internal: AA-size battery operation. External: DC (40 to 52 V) operation

  • Built-in Battery Liquid Leakage Protection Circuit

    In general, old batteries can leak and damage the equipment they are used in. The ECM-674 prevents this by continually detecting the output voltage of the battery and shutting off the power supplied to the electric circuit whenever the voltage drops beneath a certain threshold

Specifications

Transducer Electret Condenser
Polar Pattern Supercardioid
Frequency Response 40Hz to 20kHz
Dynamic Range (Typical) Phantom: 107dB or more
Battery: 98dB or more
Signal-to-Noise Ratio 77dB or more (IEC179 A-weighted, 1 kHz, 1Pa.)
Maximum Input Sound Level Phantom: 124dB SPL,
Battery: 115dB SPL
Power Requirements External: DC 40 to 52V, Battery: 1.5V
Output Impedance (@ 1kHz)
200 ohms +/- 20%
Output Connectors 3-pin XLR male
Pad No
Low Frequency Roll-Off Yes
Dimensions 10.55 x 0.78" (268 x 20mm) (Length x Diameter)
Weight 6.5 oz (without battery)
7.3 oz (with battery)
