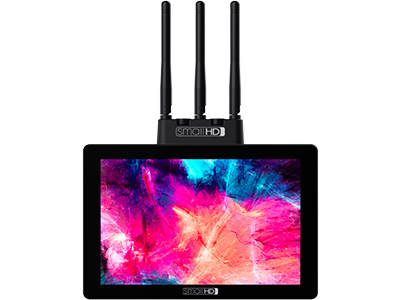

SmallHD Cine 7 500 SK RX Monitor
Code:
NO LONGER AVAILABLE
Cine 7 is a top of the line professional 7" monitor with optional camera control software upgrade for RED and/or ARRI. It's 1800 nit, daylight viewable display and 100% DCI-P3 coverage make this monitor an absolute joy to work with, in any production environment. With Teradek RT overlay integration and Teradek wireless video technology, Cine 7 delivers an experience that represents the gold standard for A-list cinematography.

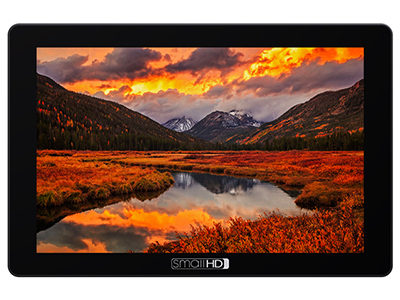

The New Industry Standard 7”
Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and integrated Teradek RT and Bolt functionality.
Brilliant Color And Brightness
The Cine 7’s display will blow you away. With a
DCI-P3 wide-color gamut and crystal clear
daylight visibility, Cine 7 gives you the ultimate
combination of breathtaking image clarity and
accuracy, even under direct sunlight.
Cinema Camera Control
Take control of your camera directly from the Cine 7 touchscreen interface. Trigger record start/stop and change essential camera settings such as iris, ISO, frame rate, and so much more, all in real-time. Cine 7 can be outfitted with several control licenses so it can be used seamlessly across RED and ARRI cameras.
*Requires camera-specific cable and license

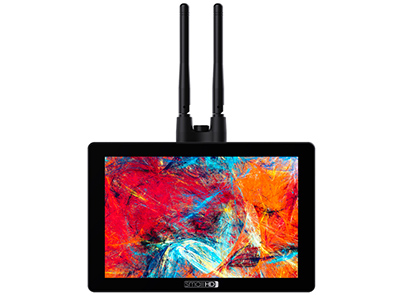

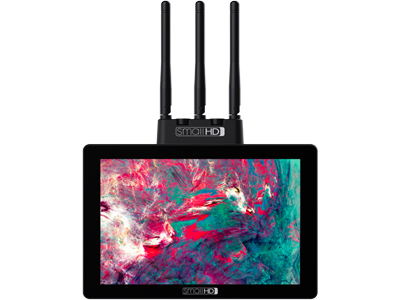

Go Wireless with Cine 7
Plug in seamlessly to any wireless set with integrated Teradek Bolt transmitter and receiver models.
Built For Professionals
With several 3G-SDI and HDMI inputs and outputs, built-
in signal cross conversion, and your choice of Gold-, V-, or
Sony power plates, the Cine 7 is ready for action on any
A-list production. Its milled aluminum chassis is
designed to withstand regular abuse on set and
the several ¼-20” mounting points allow you to mount the
monitor in just about any orientation you need.
Powered By SmallHD OS3
SmallHD OS3 software gives directors and camera operators industry leading imaging tools and a simplified user experience. Customize scopes, Waveforms, and False Color how you desire. Apply real-time 3D LUTs quickly and easily. Save time and be more confident creating with this powerful, data-driven tool set.
Specifications
Display
| Panel Type
|
IPS LCD |
| Size Diagonal
|
7.02 |
| Resolution
|
1920x1200 |
| Pixel Density (PPI)
|
322 |
| Aspect Ratio
|
16:10 |
| Active Area
|
5.95 x 3.72 |
| Contrast
|
1000:1 |
| Color Gamut
|
100% DCI-P3 Coverage |
| Color Depth
|
8-b Panel with 10-b Scopes |
| Viewing Angle
|
8-b Panel with 10-b Scopes |
| Backlight Type
|
LED |
| Adjustable Backlight
|
Yes |
Input Signal Types/Formats
| 3G-SDI
|
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
| HD-SDI
|
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI
|
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
| HDMI
|
YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50 |
| Audio
|
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels |
Output Signal Types/Formats
| 3G-SDI
|
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
| HD-SDI
|
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI
|
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
| HDMI
|
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 |
| Audio
|
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection |
Wireless
| Video Inputs
|
1x |
| Delay Tx To Rx
|
< 1mSec (0.001 sec) |
| Supported Resolutions
|
1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i/50, 1080p30/29.97, 1080p24/23.98, 720p60/59.94, 720p/50, 480i60/59.94, 480p60/59.94, 576i50, 576p/50 |
| Video Compression
|
Visually lossless |
| Audio Compression
|
48 kHz 24-bit PCM |
| Wireless Network
|
5GHz |
| RF Channel Selection
|
AFS (Automatic frequency selection) |
| Encryption
|
AES-128 |
| Range
|
Upto 500' line of sight (or 500' LoS) |
| Noise Rejection
|
Can coexist with WiFi and 5 Ghz cordless phones |
Connector Type
| SDI
|
1x BNC 3G input and 1x BNC 3G selectable input/output |
| HDMI
|
1 input and 1 output: HDMI Type-D Receptacles (full size) |
| Audio
|
1x 3.5mm 3-pin Stereo Headphone Jack |
| Power In
|
2-pin Locking |
| USB
|
1x USB 2.0 Micro-B receptacle |
Controls
| Primary Control Interface
|
Touch Screen |
| Record/Capture
|
Capture Tool |
Power
| Connector Type
|
Lemo |
| Voltage
|
DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max |
| Recommended Power Supply
|
Recommend DC 12~15V at ~2.5 amp or greater |
| Overload Protection
|
DC input: Reverse polarity |
| Battery Types
|
L-Series, V Mount, Gold Mount |
| Battery Chemistry
|
Li-ion |
| Battery Charging Time (hours)
|
Monitor does not support the charging of batteries |
Environmental
| Compliance
|
FCC, IC, CE, RoHS |
| Operating Temperature
|
30F to 100F |
| Storage Temperature
|
0F to 120F |
| Height
|
5.48" (13.92cm) |
| Width
|
1.32" (3.35cm) |
| Depth/Length
|
7.09" (18.01cm) |
| Weight (Packaged)
|
56oz (1587.57g) |
| Mount Points
|
Four ¼-20 Mount Points (Left, Right, Bottom, and Back) |
Software
| Pixel Zoom (type)
|
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom |
| Frame Guides
|
Preset Aspect Ratios & Customizable |
| DSLR Scale
|
Canon 5DMkii & Canon 7D |
| Custom Scale
|
Yes (Underscan Only) |
| Anamorphic De-Squeeze
|
0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x |
| Image Rotate(Manual/Automatic)
|
Automatic or Manual Control |
| Image Flip (Manual/Automatic)
|
Automatic or Manual Control |
| Cross Conversion
|
Yes: HDMI → SDI & SDI → HDMI |
| Focus Assist (Colors)
|
User Adjustable Color Style and Intensity |
| Peaking
|
User Adjustable Intensity |
| False Color
|
Rainbow, Arri Style, Custom with up to 10 nodes |
| Zebra
|
Dual - User Configurable |
| Waveform
|
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| Vectorscope
|
Yes |
| RGB Parade
|
Fully User Customizable |
| Histogram
|
Luma & RGB Style |
| Image Capture
|
Yes |
| Custom LUTS
|
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu |
| LUT Downstream
|
Available on SDI or HDMI Out. Applied on Output Preview Page. |
| LUT Import
|
via SD Card or USB Storage Device |
| Image Overlay
|
With Opacity Slider and Blink Setting |
| Audio Meters
|
HDMI & SDI up to 8 channel |
