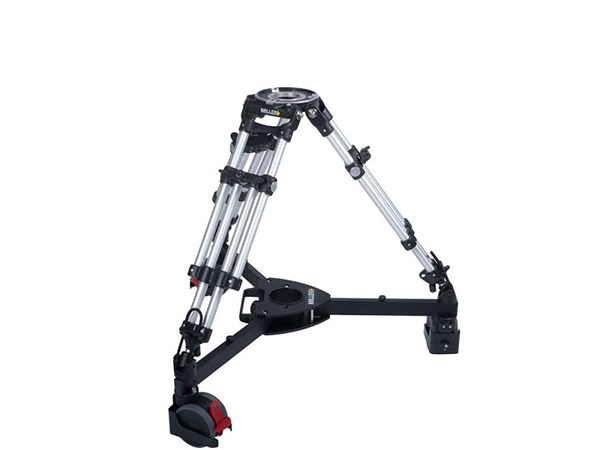

http://www.lemac.com.au/site/DefaultSite/filesystem/images/miller/3354.jpg The Miller HD Studio Tripod (3354) is designed specifically to support the Skyline 90 Fluid Head while on the 3225 HD Dolly, the tripod is Mitchell Base all alloy design which can support up to 140kg (309lbs). Castings are LM25 anodised, stove enamelled (black texture). Tripod legs are 1” HE30TF alloy, polished and anodised, with nylon wipers and nylon locking pads. Stainless steel spikes are located on the feet with rubber covers. Locking levers are anodized and stove enamelled (black texture). All steel parts are hardened where necessary, and chrome plated.

SEARCH SHOP

MILLER

Miller HD 3354 Studio Tripod

Item Code: MIL/3354

The Miller HD Studio Tripod (3354) is designed specifically to support the Skyline 90 Fluid Head while on the 3225 HD Dolly, the tripod is Mitchell Base all alloy design which can support up to 140kg (309lbs). Castings are LM25 anodised, stove enamelled (black texture). Tripod legs are 1” HE30TF alloy, polished and anodised, with nylon wipers and nylon locking pads. Stainless steel spikes are located on the feet with rubber covers. Locking levers are anodized and stove enamelled (black texture). All steel parts are hardened where necessary, and chrome plated.

RRP: 0   Save:

For purchasing information

The Miller HD Studio Tripod (3354) is designed specifically to support the Skyline 90 Fluid Head while on the 3225 HD Dolly, the tripod is Mitchell Base all alloy design which can support up to 140kg (309lbs). Castings are LM25 anodised, stove enamelled (black texture). Tripod legs are 1” HE30TF alloy, polished and anodised, with nylon wipers and nylon locking pads. Stainless steel spikes are located on the feet with rubber covers. Locking levers are anodized and stove enamelled (black texture). All steel parts are hardened where necessary, and chrome plated.

Features

  • Mitchell base for flat mounting.
  • One stage alloy rotary lock leg extension for heavy duty clamping.
  • Heavy duty clear anodised alloy tubing.
  • Cast alloy brackets for rigid geometry.
  • Suited for HD Dolly and all Mitchell base heads.
  • 3 year warranty.

Specifications

Maximum Payload Capacity 140.0kg (308.7lbs)
Weight 8.4kg (18.5lbs)
Height Range 700 - 1100mm (27.6 - 43.3”)
Transport Length 680mm (26.8”)
Mounting Base Mitchell base
Leg Extension 1 stage
Lock Type Rotary lock
Leg Material Alloy
