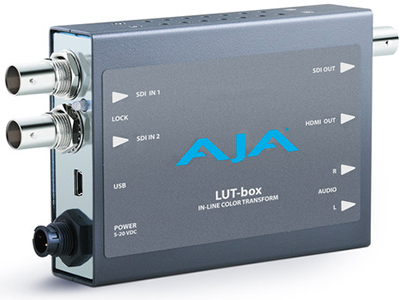

AJA LUT-box In-line Color Transform

Item Code: BLO/AJA-LUT-BOX

LUT-box ensures that your monitor is showing the correct color space and look for any source signal. Load 3D LUTS at up to 17x17x17 or 16x16x16 sizes using the USB connection and free Mini-Config software on either Mac or Windows. You can also additionally upload a 1D LUT for standalone needs or combine 3D and 1D LUTs for simultaneous viewing needs . Simultaneous outputs allow you to utilize both HDMI and SDI monitors from a single LUT-box. Embedded audio is passed through to the outputs and the LUT-box provides 2-Channel RCA style audio outputs for separate audio monitoring if needed.

RRP: 0   Save:

  • Qty:
  • Price:
    $1,065.00
    inc. GST

Found this item cheaper elsewhere? Let us know

Load 3D LUTs into LUT-box to adjust the color look for any source signal with simultaneous outputs to HDMI and SDI monitors from a single LUT-box.

In-line Color Transform

Working with material outside the normal REC709 video color space (such as LOG material) can cause confusion both on set and in the edit suite with colors that are not properly represented for client review and approval. LUT-box ensures that every monitor is showing the correct color “look” for any source signal while still allowing the original footage to maintain its original color look and take advantage of additional dynamic range.

Extensive Connectivity

LUT-box accepts 3G and Dual-Link input in a wide range of signal formats. Simultaneous SDI and HDMI outputs allow multiple monitors to view the corrected color signal.

Audio Integration

Up to 16-channels of embedded SDI audio are supported on input and can be passed to 8-channel of embedded HDMI audio on the output. Two channels of analog audio output allow direct external monitoring without the need to disembed the audio separately.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed

All AJA Mini-Converters are covered by a five year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

High-Quality File Formats

LUT-box supports 16-point and 17-point 3D LUTs with 12-bit processing for accurate color representation.

In addition, a 10- or 12-bit 1D LUT can also be applied prior to the 3D LUT to allow for additional calibration or image enhancement before being processed by the 3D LUT.

Multiple LUT formats are supported including:

  • 3dl
  • lut
  • txt
  • cube

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

Specifications

Video Input 2x 3G-SDI with embedded audio
Input Formats 720p 50, 59.94, 60
1080i 50, 59.94, 60
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive)
2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2K x 1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive)
Video Outputs 3G-SDI with embedded audio
HDMI with embedded audio, 30-bit Deep Color support
Audio Input SDI embedded audio, select 8 of 16 channels and pass to the HDMI output
Audio Output 2-channel RCA-style (-10 dBV nominal)
LUT File Format Support .lut, .txt, .3dl, .cube
Power Uses AJA Power Supply model DWP-U-R1 (included)
100-240 V, 50/60 Hz universal input
+5 V DC regulated, 7.5 W capacity
Dimensions 5.8 x 3.1 x 1" (14.7 x 7.9 x 2.5 cm)
