The RØDECaster Video S is a revolutionary all-in-one video and audio production console designed to deliver intuitive control over every element of your content. A compact version of the RØDECaster Video, it combines powerful video switching, recording and production capabilities with a fully integrated professional audio mixer. From video podcasts and studio productions to live streams and interviews, the RØDECaster Video S provides a seamless way to streamline and supercharge your workflow with broadcast-quality results.
Key Features
- Switch between up to four video sources and five fully customisable scenes at the press of a button
- High-performance octa-core CPU video and audio processor
- Three full HD (1080p) HDMI inputs with auto frame rate conversion and one configurable HDMI output for viewing program, preview and multi-view
- One flexible USB-C port for connecting webcams and RØDE USB audio devices to use as additional video and audio sources
- Two studio-grade Neutrik® combo jacks with ultra-low-noise, high-gain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source
- Dual internal wireless receivers for connecting RØDE Series IV wireless microphones
- Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
- Support for network cameras (including PTZ operation) with up to four NDI inputs® and one output via Ethernet, plus dual-cam streaming with the free RØDE Capture app for iOS devices
- 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment
- Ability to create five complex scenes with multiple layers of video, media and graphics, which can be saved and triggered at the touch of a button
- Automatic chroma keying for effortlessly replacing backgrounds with media or live video inputs
- Media playback, graphic overlays, keying, transitions and multi-source scene creation all accessible from the front panel
- Innovative "Inspect" feature for quick-and-easy preview and configuration of any input or scene
- Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
- Stream directly to all major platforms via Wi-Fi or Ethernet, or to streaming software via USB
- Record directly to external USB storage device, including isolated (ISO) recording for post-editing flexibility
- Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via the RØDECaster App
- Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia
- 24GB of on-board storage (20GB user-configurable) for media, graphics and overlays
Creative Co-Pilot
The ultimate all-in-one content creation tool, the best-in-class RØDECaster Video S seamlessly blends comprehensive video and audio production into a single, compact device. Providing unmatched flexibility in switching, mixing, processing, recording and streaming, it provides solo creators and video podcasters everything necessary to produce polished, broadcast-quality content from a single, streamlined setup.
For Anyone and Everyone
With an array of connectivity options and its completely customisable architecture, the RØDECaster Video S adapts to meet the needs of any podcast or production and is flexible enough to fit any creative setup.
Elevate Your Production
With an intuitive interface and dynamic touchscreen, the RØDECaster Video S offers hands-on control of every element of your production to add the professional polish you’ve been searching for. Switch between video sources, build engaging layouts, and mix pristine audio – all from one compact console.

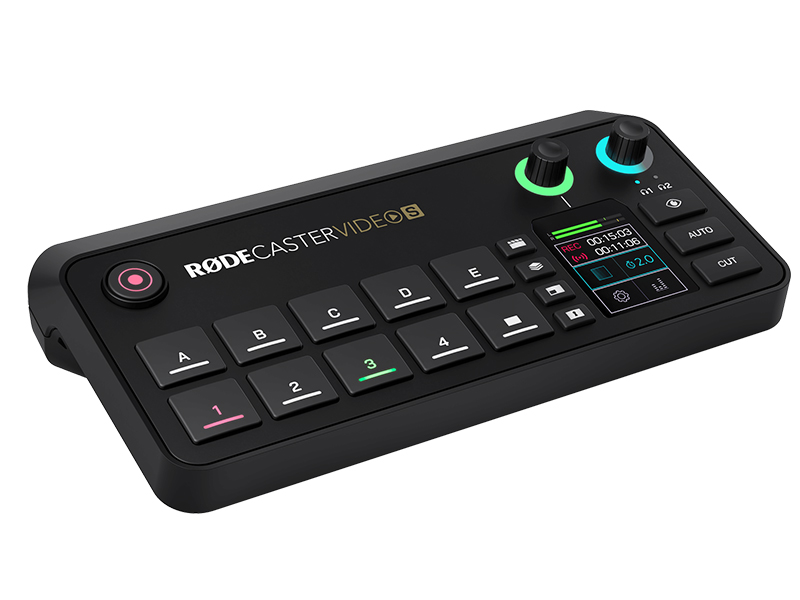

Overview
1) Input and Scene Buttons
Switch between video sources or fully customised scenes with the touch of a button.
2) Function Buttons
Quickly and simply access media playback, graphic overlays, multi-source layouts and chroma keying.
3) Touchscreen and Encoders
Control and configure your production with the intuitive touchscreen and versatile encoder.
4) Inspect Button
Preview and configure any input or scene on-the-fly with the innovative Inspect button.
5) USB Video and Audio
Connect a compatible webcam or RØDE USB microphone via USB 4 for additional video or audio options.
6) HDMI Inputs and Outputs
Capture up to three HDMI video sources and monitor your production with preview, multiview or program feeds.
7) Headphone Outputs
Monitor your audio with up to two pairs of headphones with custom mixes and levels.
8) Revolution Preamps™
Record XLR and 1/4-inch equipment in stunning detail with the ultra-low-noise, high-gain Revolution Preamps™.
Switch it Up
With simultaneous control over four different video feeds, the RØDECaster Video S allows you to seamlessly switch between cameras, consoles and other visual inputs instantly to keep your audience totally engaged. Cut between your shots instantly or apply tasteful fades, dips and wipes with fully customisable transitions – you can even sequence your show with live previews of each feed before you make the switch.
Set the Scene
The RØDECaster Video S makes it simple to design and customise your own scenes, combining video sources, graphics and media into dynamic layouts. Save up to five scenes and switch between them instantly at the press of a button, giving your productions a professional flow.
Integrated Professional Audio
Compact yet uncompromising, the RØDECaster Video S sets a new standard for power and flexibility in audio production. With two studio-grade Neutrik® combo jacks for XLR connectivity, and the ability to mix, process, and route up to nine audio sources simultaneously, it delivers versatility that belies its size. Each channel has access to a full suite of studio-grade effects and processors powered by APHEX®, allowing you to sculpt your dream sound and deliver polished, professional results every time.
Expand Your Setup
The RØDECaster Video S includes a versatile USB-C port that lets you expand your setup with an additional video or audio device. Connect a compatible USB webcam, capture card or other UVC source, add a RØDE USB microphone, or even integrate the RØDECaster Pro II or Duo into your workflow to level up your production.
Quick and Easy Video
Pair the RØDECaster Video S with the free RØDE Capture app to transform your iPhone into a high-quality camera for your podcast. Enjoy flexible, dual-cam streaming straight from your device to take your content to effortless new heights.
Comprehensive Multiview
The Multiview display of the RØDECaster Video S provides a comprehensive overview of all your production’s critical information in one screen. With previews of every input, scene and feed, alongside recording, streaming and audio information, you can be confident you have complete control of your show.
