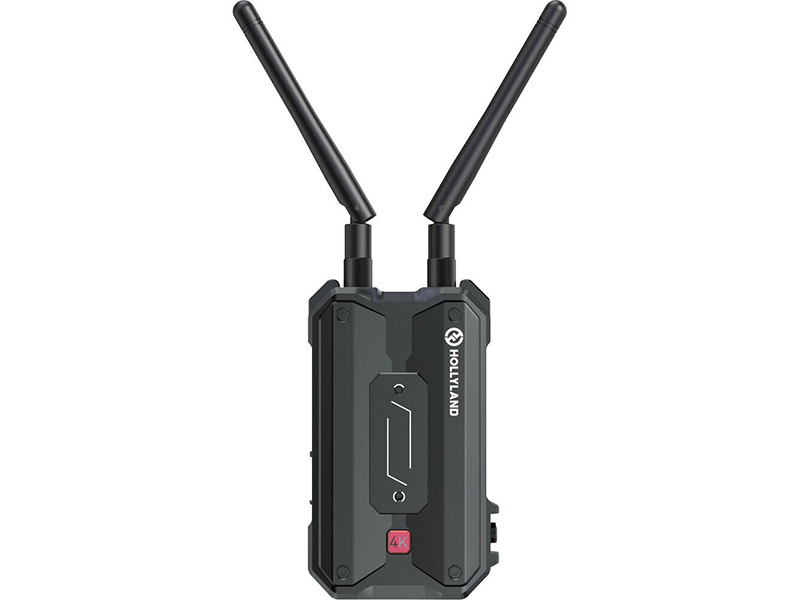

Hollyland Pyro H 4K HDMI Wireless Video Transmitter Only

Code: HOL/PYHTX

$315.00

Add 4K30 wireless video transmission to your production using the versatile Pyro H 4K HDMI Wireless Video Transmitter from Hollyland. The transmitter provides HDMI input and features extremely low 60 ms latency that accepts line-of-sight transmission from up to 1300' away. When using broadcast mode using up to four receivers and two mobile devices, the system supports up to 650' away. The unit also features an HDMI loop output for displaying your local feed on a monitor. A USB-C port can power the unit and also supports plug-and-play UVC operation. The built-in frequency scanner allows you to select the clearest frequency for your transmission.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Overview
Specifications

Add 4K30 wireless video transmission to your production using the versatile Pyro H 4K HDMI Wireless Video Transmitter from Hollyland. The transmitter provides HDMI input and features extremely low 60 ms latency that accepts line-of-sight transmission from up to 1300' away. When using broadcast mode using up to four receivers and two mobile devices, the system supports up to 650' away. The unit also features an HDMI loop output for displaying your local feed on a monitor. A USB-C port can power the unit and also supports plug-and-play UVC operation. The built-in frequency scanner allows you to select the clearest frequency for your transmission.

Long Distance, High Quality

Key Features

Professional Video Transmitter
Transmit UHD 4K30 Video up to 1300'
HDMI Input and HDMI Loop Output
2.4 and 5 GHz Frequency Bands
Supports UVC Plug-and-Play for Streaming
650' Transmission in Broadcast Mode
Smart Channel Scanning, Bright LCD
Low 60 ms Latency, 12 Mb/s Bit Rate
DC, L-Series and USB-C Power Options

Specifications
Port	DC Input: 2.0mm Core Socket HDMI Input: HDMI 1.4b HDMI Loopout: HDMI 1.4b USB-C: USB 2.0 OTG Antenna: SMA Male
Power Supply	USB-C: 5V/2A (not supported in Broadcast mode) Battery Voltage Range: 6.8 – 8.4V DC Voltage Range: 6 – 16V
Power Consumption	<7W
Net Weight	192g
Dimensions	L × W × H: 109 × 62.3 × 33.4mm (4.3 × 2.45 × 1.3in.)
Input/Output Format	HDMI 720p50/59.94/60 1080i50/59.94/60 1080p23.98/24/25/29.97/30 1080p50/59.94/60 4K30/25/24 HDMI Loopout 720p50/60 1080i50/60 1080p24/25/30 1080p50/60 4K30/25/24
Operating Frequency	5 GHz Frequency Band 5.150 – 5.250 GHz 5.250 – 5.350 GHz 5.470 – 5.725 GHz 5.725 – 5.850 GHz 2.4 GHz Frequency Band 2.412 – 2.484 GHz
Transmit Power	< 23 dBm
Receiver Sensitivity	/
Latency	0.06s (test data when 1080p60 signals are transmitted in a laboratory)
Range	1,300ft (400m)(test data in an open, interference-free environment)
Bandwidth	20 MHz (Broadcast: 40 MHz)
