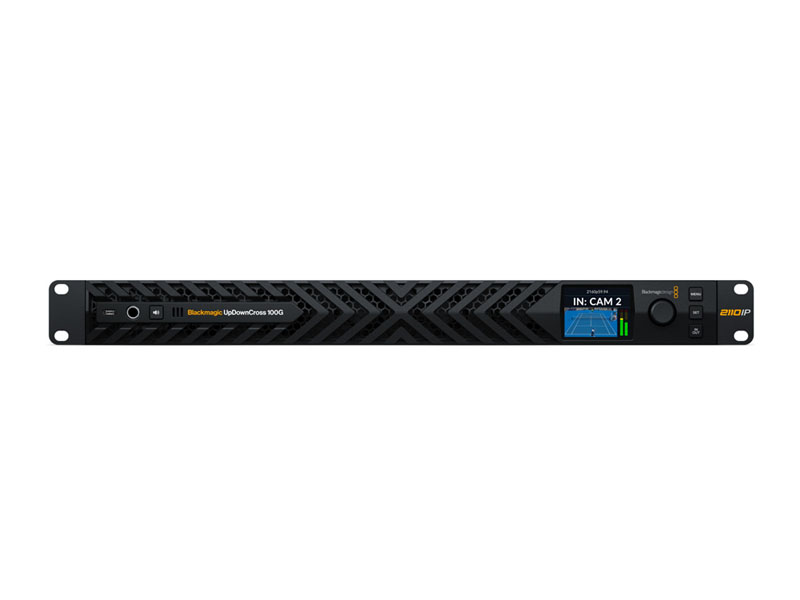

Blackmagic UpDownCross 100G

Code: NMA/CONVNVIPJSTG100G
$3,455.00

A powerful 8-channel standards converter with native SMPTE-2110 connections via 100G Ethernet, converting up to 8 separate channels of SD, HD and Ultra HD video to any other standard simultaneously.

Add to Cart

This item is already in your cart, click here to update quantities.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems. That’s because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices! All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There’s also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!

Connections

100G Ethernet2 x 100G QSFP28 (redundant, SMPTE-2022-7 compliant)
NMOS Control Port1 x dedicated Ethernet
Computer InterfaceUSB-C for updates, configuration and control
Power2 x IEC C14 (dual redundant AC power supplies)

Video Standards

Conversion ChannelsUp to 8 simultaneous channels of SD, HD and Ultra HD to any other standard up to 2160p60
HD Video Standards720p50/59.94/60 · 1080i50/59.94/60 · 1080p23.98-60
Ultra HD Video Standards2160p23.98-60

IP Video Compliance

SMPTE 2110-20IGMP v2
SMPTE 2110-21Sender: Narrow · Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30Audio Conformance Level C
Precision Time ProtocolIEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
NMOS IS-04v1.3.2
NMOS IS-05v1.1.2

Control

Built-in Control PanelFront panel LCD with buttons and spin knob for monitoring, menus and routing

Environmental

Operating Temperature5 to 40C (32 to 104F)
Relative Humidity0% to 90% non-condensing
