Blackmagic Media Dock Ultra

Code: NMA/DWCLDCDOCNMDU03
$4,295.00

Accelerates post production workflow by enabling incredibly high speed network sharing and upload from up to 3 Blackmagic Media Modules, with 2×100G Ethernet ports allowing multiple edit stations to connect and edit directly.

Add to Cart

This item is already in your cart, click here to update quantities.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Blackmagic Media Dock Ultra is back in stock.

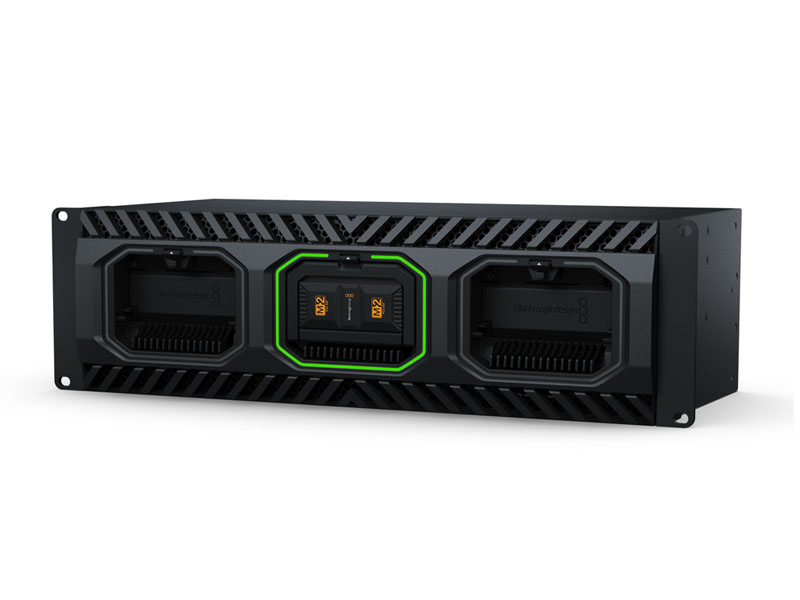

High-Performance Dock for Blackmagic Media Modules

The Blackmagic Media Dock Ultra accelerates your post-production workflow by enabling incredibly high-speed network sharing and uploading from up to 3 Blackmagic Media Modules — the same removable media used in URSA Cine cameras. Two separate 100G Ethernet ports allow multiple edit stations to connect and edit directly, with each port operating as an independent network.

Live Production Ready

The Media Dock Ultra is designed to work alongside the HyperDeck ISO Recorder 100G for live production, where one 100G port connects to the HyperDeck for recording while the other connects to a network switch and editing workstations. DaVinci Resolve can edit growing files live even as recording is in progress. The unit features server-style front-to-rear cooling with multiple fans for redundancy, dual redundant power supplies, and SDI and HDMI status monitoring.

Cloud-Connected Storage

The Media Dock Ultra constantly syncs to Blackmagic Cloud, enabling a global post-production workflow. You can install it in a DIT cart for on-set color grading, then move the media module to post-production after the shoot without copying files. The unit supports all international AC voltages.

Connections

100G Ethernet2 x 100G QSFP28 (each assignable to independent IP address and subnet mask for up to 200G bandwidth)
1G Management1 x RJ45 Ethernet (10/100/1000 BASE-T)
SDI Monitor Outputs2 x SDI (1.5G, 3G) at 1080p50/59.94/60
HDMI Monitor Output1 x HDMI at 1080p50/59.94/60
Computer Interface1 x USB-C for Cloud Store Setup utility and software updates
Power2 x IEC C14 (dual redundant AC power supplies)

Storage

Media Module CapacityUp to 3 x Blackmagic Media Modules
File SharingNFS (HFS+ formatted disks only) · SMB
Computer Connections50 maximum
Cloud SyncAmazon Web Services S3 sync

Physical

Rack Units3 RU

Software

IncludedBlackmagic Cloud Setup Utility · Blackmagic Proxy Generator Lite
Operating SystemsMac 15.0 Sequoia, Mac 26.0 Tahoe or later · Windows 10 64-bit · Windows 11

Environmental

Operating Temperature0 to 40C (32 to 104F)
Relative Humidity0% to 90% non-condensing
