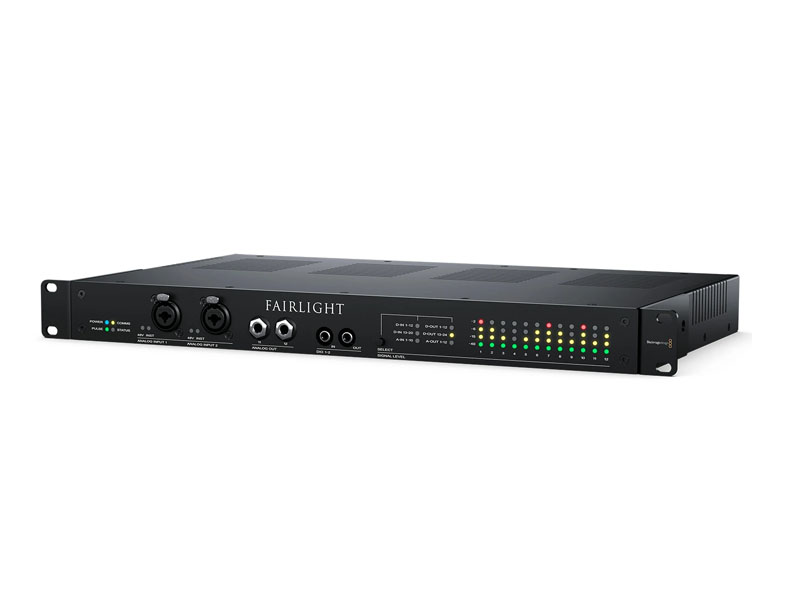

Blackmagic Fairlight Audio Interface

Code: NMA/DVRFLAUDIF
$3,420.00

A breakout box for use with the Fairlight Audio Accelerator that provides analog and digital inputs and outputs, microphone preamps, and sync via word clock, AES, MADI, HD tri-sync or reference video inputs.

Add to Cart

This item is already in your cart, click here to update quantities.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Fairlight Audio Interface is a professional audio post production I/O interface with an extensive variety of analog and digital inputs and outputs, preamps for microphones and instruments, built in sample rate conversion, sync at any standard frame rate and dual 9‑pin control ports! Fairlight Audio Interface requires Fairlight Audio Accelerator and connects to the Fairlight Audio Interface with a supplied proprietary interface cable.

Connections

Mic/Instrument Inputs2 x XLR/TRS (remote-controlled, 48V phantom power, up to +71.5 dB gain)
Balanced Analog Inputs8 x balanced analog inputs on DB25 connector (+24 dBu)
Balanced Analog Outputs8 x line outputs on DB25 connector · 4 x 1/4 inch line outputs (+24 dBu)
Digital I/ORCA coaxial stereo AES/S-PDIF in/out · Transformer-coupled AES inputs 3-20 and AES outputs 3-24
MADI I/O1 x coaxial MADI (64 channels in/out at 24-bit/48kHz)
Sync InputsWord clock, AES, MADI, HD tri-sync, reference video
GPI/GPODB25 connector for GPI, GPO, cough/On-Air control, timecode in/out with regeneration
Accelerator ConnectionProprietary multi-pin connector to Fairlight Audio Accelerator PCIe card
PowerInternal power supply, IEC C14 mains input

Audio Performance

AD/DA Converters24-bit / 192 kHz
Sample Rate ConversionAvailable on digital inputs 1-2

Form Factor

Rack Units1 RU

Operating Systems

MacMac 13.0 Ventura, Mac 14.0 Sonoma or later
WindowsWindows 10 Creators Update, Windows 11
