Autocue 22″ Talent Monitor & Mounting Package

Code: ADE/AU-P7009-0900
$5,320.00

With this package you can add a broadcast quality talent monitor underneath the front of your Autocue teleprompter, so that talent can reference the programme output easily as they present to camera.

Add to Cart

This item is already in your cart, click here to update quantities.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

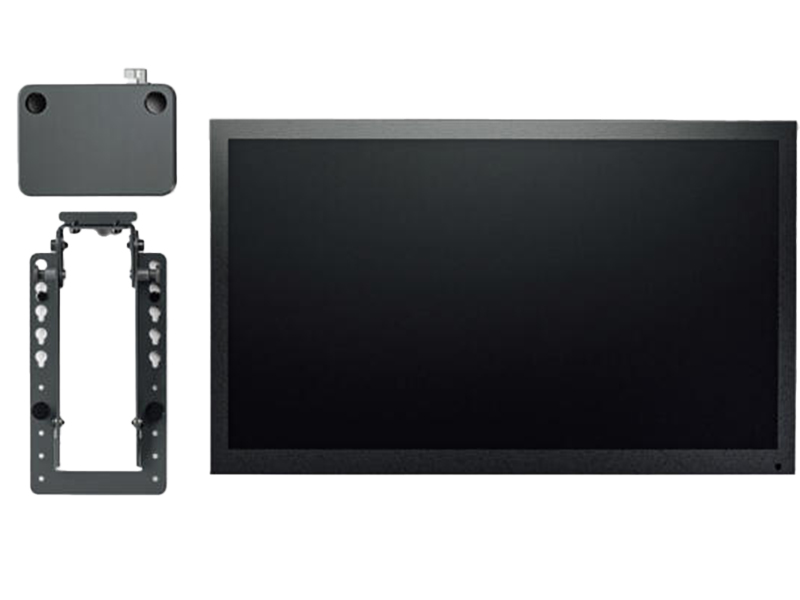

What's In The Box?

  • With this package you can add a broadcast quality talent monitor underneath the front of your Autocue teleprompter, so that talent can reference the programme output easily as they present to camera.

    Included with the 22″ monitor is a VESA mount that can be fitted underneath the monitor of any Autocue Explorer or Pioneer teleprompter, and a 5kg counterweight to fit behind the camera mounting to offset the extra load at the front of the teleprompter. Note: if you’re planning to add this package to an Explorer Teleprompter you’ll need to purchase 19mm rods (P7011-0920) to mount the counterweight at the back of the camera carriage.

    Specifications
    Aspect Ratio4:34:3
    Aux. Output5V DC, 2A max.5V DC, 2A max.
    Brightness400Nits400Nits
    Camera Base To Lens Centre Height Supported50 mm to 14 cm1.97 in to 5.51 in
    ConnectivityHDMI, VGA, CVBSHDMI, VGA, CVBS
    Contrast1000:11000:1
    HoodMedium composite hood with collapsible fabric lens sealMedium composite hood with collapsible fabric lens seal
    Image FlipNone. Done in softwareNone. Done in software
    Input Voltage12V DC12V DC
    InputsCVBS, HDMI, VGACVBS, HDMI, VGA
    Monitor Dimensions36.4 cm x 35.6 cm x 57 mm14.33 in x 14.02 in x 2.24 in
    Monitor MountingVESA100 with additional 3-8"-16 camera support fixingsVESA100 with additional 3-8"-16 camera support fixings
    Monitor Size17"17"
    Monitor Weight0.32 kg0.71 lb
    Power Consumption30W max30W max
    Power Supply90-264V AC 50/60Hz input, 12V DC, 3A max. output90-264V AC 50/60Hz input, 12V DC, 3A max. output
    Rail Fixings3/8"-16, with optional 1/4"-20 inserts3/8"-16, with optional 1/4"-20 inserts
    Resolution1280x10241280x1024
    SeriesExplorerExplorer
    System Dimensions50.3 cm x 42 cm x 67.8 cm19.8 in x 16.54 in x 26.69 in
    System Weight9.2 kg20.28 lb
    Warranty2 Years2 Years
