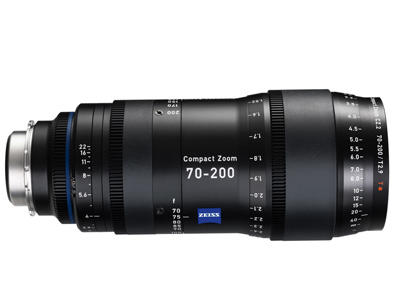

Zeiss 70-200mm Compact Zoom CZ.2

Code:

Featuring the Interchangeable Mount System (PL, EF, F, MFT, E), the new Compact Zoom CZ.2 lenses are as versatile as they are powerful and incorporate features never seen before on lenses of this kind.

For purchasing information

Enquire Now

Absolute flexibility and truly stellar performance.

The new Compact Zoom CZ.2 lenses are as versatile as they are powerful and incorporate features never seen before on lenses of this kind. They are handy, compact, ready for 4k and even offer full-frame coverage. With their zoom lengths of 28-80 and 70-200 mm, they give you a wide range of creative options. Their compact size and light weight make them the ideal companions for even the most ambitious applications, including handheld, Steadicam and projects in confined spaces. And thanks to their robust, cine-style housing (which also allows for the use of a follow-focus system), their full-frame coverage and interchangeabale mounts, they will be reliable partners for years to come.

Interchangeable mount (PL, EF, F, MFT, E)
Full-frame coverage (36 x 24 mm)
No focus shift over the zoom range
Robust cine-style housing
Circular shape of iris
Great flare suppression
Calibrated focus scales

Lemac customer and DOP Warwick Brown recently added the 70-200mm to his arsenal of CP.2 and L-series lenses. Find out what he thought of the new lens in the testimonial he gave us called New Zeiss 70-200mm CZ.2 in the field.

Video

Zeiss @ NAB 2012 with Michael Schiehlen from Lemac Film and Digital on Vimeo.

PDF

Click here to download the PDF Brochure

Specifications

Compact Zoom CZ.2
Aperture range	T 2.9 to T 22
Focal range	70–200 mm
Close focus distance ⁽¹⁾	1.52 m / 5"
Horizontal angle of view
Full-Frame ⁽²⁾	10–29°
APS-H ⁽³⁾	9–24°
Super 35 ⁽⁴⁾	7–20°
Normal 35 ⁽⁵⁾	6–18°
APS-C ⁽⁶⁾	6–18°
MFT ⁽⁷⁾	5–14°
Length ⁽⁸⁾	250 mm / 9.84"
Front diameter	95 mm / 3.7"
Weight	2.8 kg / 6.2 lbs

(1) Close focus distance is measured from the image plane
(2) Horizontal angle of view for a full-frame camera aperture (aspect ratio 1:1.5, dimensions 36 mm x 24 mm / 1.42" x 0.94")
(3) Horizontal angle of view for an APS-H camera aperture (aspect ratio 1:1.81, dimensions 30.2 mm x 16.7 mm / 1.19" x 0.66")
(4) Horizontal angle of view for an ANSI Super 35 Silent camera aperture (aspect ratio 1:1.33, dimensions 24.9 mm x 18.7 mm / 0.98" x 0.74")
(5) Horizontal angle of view for a Normal 35 Academy camera aperture (aspect ratio 1:1.37, dimensions 22 mm x 16 mm / 0.87" x 0.63")
(6) Horizontal angle of view for an APS-C camera aperture (aspect ratio 1:1.50, dimensions 22.3 mm x 14.9 mm / 0.88" x 0.59")
(7) Horizontal angle of view for a Micro 4/3 (MFT) camera aperture (aspect ratio 1:1.33, dimensions 17.3 mm x 13 mm / 0.68" x 0.51")
(8) Front to PL mount flange
