Zacuto Gratical Eye SDI EVF

Code: ZAC/Z-GRE
$2,590.00
The Gratical Eye SDI electronic viewfinder is the smallest and lightest of Zacuto's Micro-OLED EVFs. It fits in the palm of your hand and weighs only 14oz. This is an ideal SDI EVF solution for filmmakers using professional cameras and external batteries. The Gratical Eye has a 2 pin Lemo power jack and a single SDI input. Sleek and small, this EVF will fit in even the smallest of camera bags! Take it with you on the road or add it to your studio rig.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

The Gratical Eye SDI electronic viewfinder is the smallest and lightest of Zacuto's Micro-OLED EVFs. It fits in the palm of your hand and weighs only 14oz. This is an ideal SDI EVF solution for filmmakers using professional cameras and external batteries. The Gratical Eye has a 2 pin Lemo power jack and a single SDI input. Sleek and small, this EVF will fit in even the smallest of camera bags! Take it with you on the road or add it to your studio rig.

Along with the full suite of Zacuto EVF firmware (full scopes, LUTs, multi level peaking, and more), the Gratical Eye has two unique features – an external tally light and a proximity screen saver sensor. If the sensor does not detect anything for 7 seconds (time is user adjustable) the screen will go black and then wake up instantly when it detects motion. After 1 hour of being idle, the Eye will go into auto shutoff mode, saving you power. Read on to find out more about the Gratical Eye SDI EVF.

Features

Micro-OLED Display

The Gratical Eye SDI EVF features a state-of-the-art Micro-OLED screen. With 5.4 million pixels squeezed onto a screen only 0.61” diagonal, you get a hugely expanded contrast range for the truest image possible. The Micro-OLED screen offers vivid, vibrant colors and true black, as each pixel is lit individually.

Power

An industry standard 2 pin Lemo jack makes powering the Gratical Eye off your existing external batteries a breeze. We offer an optional combined power and video cable 2 Pin Lemo to D-Tap and a BNC cable. Or use any current model Lemo cable you may own – The Gratical Eye’s auto-sensor prevents any compatibility issues with polarity.

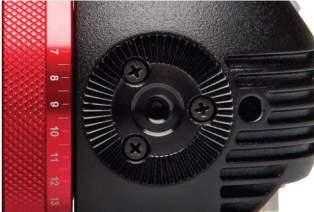

Mounting

Mounting options include ¼ 20 rosettes on both sides so cables can be positioned up or down. Attach your electronic viewfinder with an arm or Zacuto Axis Mini as part of a Zacuto Next Generation Recoil Rig.

Processor

At the core of the Gratical Eye is a powerful, cutting edge FPGA dual core processor. This processor supports our wide array of professional features including Vectorscope, Waveform (3D), Histogram, LUT import/export/create, and two features unique to the Gratical Eye – a proximity screen saver to conserve power (7 second motion detector screen saver and auto shut off after 1 hour) and a useful outboard tally light.

Firmware

Gratical Eye customers can enjoy free firmware updates, including fixes and additions, for life. The Eye SDI EVF has a built in USB port for quick updates. Our software engineers are always working on tweaks and new features to make sure your Gratical stays current and consistent for any future changes in camera or workflow. Have something you’d like to see added? Please contact us to make a suggestions and you could see your idea in our next firmware!

Connections & Compatibility

The Gratical Eye has HD-SDI input only with resolutions up to 1080p/60. If you’re a filmmaker working exclusively with professional cameras then this is the model for you. No other SDI electronic viewfinder on the market is as portable and powerful as the Gratical Eye.

Specifications

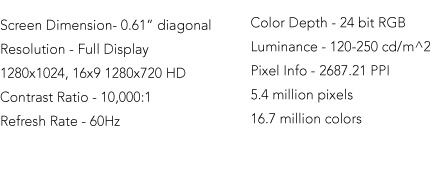

MICRO OLED DISPLAY
Screen Dimension 0.61” diagonal
Resolution Full Display 1280x1024, 16x9 1280x720 HD
Contrast Ratio 10,000:1
Refresh Rate 60Hz
Color Depth 24 bit RGB
Luminance 120-250 cd/m^2
Pixel Info 2687.21 PPI
5.4 million pixels
16.7 million colors

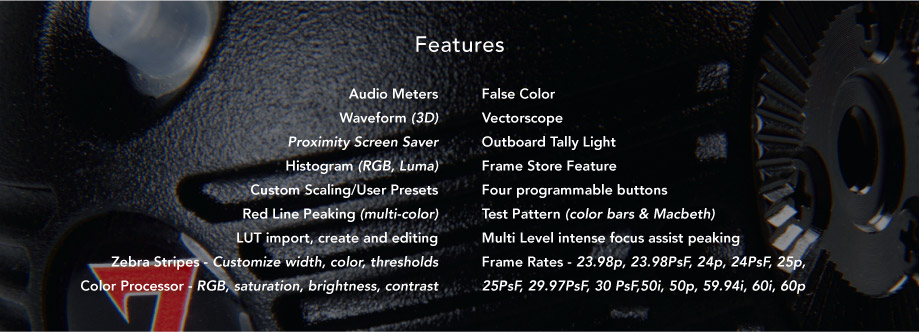

VIDEO PROCESSING FEATURES
Color Processor RGB, saturation, brightness, contrast
Zebra Stripes Customize width, color, thresholds
VIDEO PROCESSING FEATURES Custom Scaling/User Presets
Vectorscope
Waveform (3D)
Histogram (RGB, Luma)
Audio Meters
Proximity Screen Saver
Outboard Tally Light
LUT import, creating & editing
Red Line Peaking (multi-color)
Multi Level intense focus assist peaking
False Color
Frame Store Feature
Test Pattern (color bars & Macbeth)
Four programmable buttons
Frame Rates 23.98p, 23.98PsF, 24p, 24PsF, 25p, 25PsF, 29.97PsF, 30 PsF,50i, 50p, 59.94i, 60i, 60p
CONNECTIONS
Connections HD-SDI Input
Resolutions up to 1080p/60
POWER
Power Compatible with either polarity 2 pin LEMO
75Wh battery will power the Eye for 14 hours
