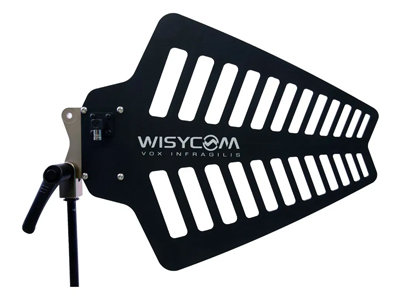

Wisycom LBN2 Passive Wideband Antenna

Code: RAY/LBN2

BNC Version

$550.00

The Wisycom LBN2 is a wideband UHF antenna LPDA (log periodic dipole Array). It enhances reception providing approx. 6 dBi gain with a typical beam-width of 140 degrees.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

The Wisycom LBN2 is a wideband UHF antenna LPDA (log periodic dipole Array).

It enhances reception providing approx. 6 dBi gain with a typical beam-width of 140 degrees.

It is provided with a BNC connector.

Features

  • Skeletal Design for Minimal Wind Loading
  • Bend elements for maximal directionality with minimum size (6 dBi gain)
  • Future proof huge reception bandwidth 420-1300 GHz
  • Robust metal support with fine slope tuning
  • Full metal support and mounting base (1/4″ & 3/8″)
  • Textured Weather-Resistant Coating
  • Waterproof with gasket sealing
Frequency ranges 420 ÷ 1300 MHz
SWR < 1:1.5; typ. = 1:1.4
Polarization Vertical
Radiation Directional
Connector N type (BNC adapter available)
Impedance 50 Ω
Material epoxy fiberglass (copper – clad)
Finishing black matte
Mounting 5/8” with worth or 3/8” with adapter
Dimensions 276 x 336 x 61 mm (HxWxD)
Weight 500g (LBN2), 550g (LNN2)
