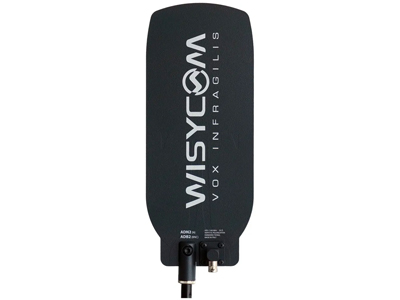

Wisycom ADB2 Wideband Omnidirectional Antenna

Code: RAY/ADB2

The Wisycom ADB2 is a wideband UHF omnidirectional antenna.

For purchasing information

The Wisycom ADB2 is a wideband UHF omnidirectional antenna.

It enhances reception providing approx. 3.2 dBi gain.

AGILE: working bandwidth of 430-1160 MHz
RUGGEDIZED: sturdy metal body construction and epoxy protection on cable joints
HIGH-PERFORMANCES: optimized 3.2dB gain

Antenna
Gain	3dBi typical
Bandwidth	< 1:1.5 in the range 430 ÷ 960 MHz < 1:1.9 in the range 430 ÷ 1160 MHz
Polarization	vertical
Mechanical
Connectors	BNC-F (ADB2)
Body Material	epoxy fiberglass (copper – clad)
Finishing	Black matte textured weather resistance coating
Mounting	5/4" & 3/8“ thread (metal support and mounting base)
Weight	245 g (BNC), 295 g (N)
Size	290 x 111 x 40 mm (N) or 290 x 111 x 28 (BNC) (H x W x D)
