Video Input |
Up to 4 utilizing IP connections via SRT, NDI, RTMP, RTSP, WebRTC and Microsoft DirectShow compliant devices via USB |
Audio Input |
Embedded audio supported for IP protocols
Supplemental support for Dante™ networking protocol from Audinate® 3
Requires Dante Virtual Soundcard license from Audinate (sold separately)
Support for professional USB audio devices via compatible WDM audio drivers |
USB Connectivity |
2 x USB 3.2 Type-C ports
6 x USB 3.2 Type-A ports
3 x USB 2.0 ports |
Network Video Output |
IP video output via NDI
– 2 x independent video mix outputs |
Stream Output |
2 x streaming video output, independently configurable, with simultaneous stream archive |
Monitor Outputs |
2 x mini display port with output adapters
Max monitor resolution 1080p/60 |
Max Session Output Resolution |
1080p/60 |
Mix/Effect Buses (M/E) |
2 x M/E buses
2 x Keyers per bus
2 x Layers |
DSK Channels |
2 x DSK channels |
Media |
• 5 x Media Players (2 x DDR, 2 x GFX, 1 x Sound)
• 15 x Media Buffers (10 x Live Link or Animation Buffers, 5 x Graphics Buffers) |
Keyers |
Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
• 8 x input keyers
• 2 x media player keyers
• 2 x M/E keyers
• 15 x buffer keyers |
Audio Mixing |
Integrated multi-channel audio mixer with support for stereo audio, and DSP’s |
Virtual Sets |
Integrated LiveSet™ technology with 30+ live virtual sets and box effects included |
DataLink |
Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more |
Macros |
Pre-defined system Macros
– Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
– Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
– Supports control via web-based interface |
Recording |
2 x recording channels from either NDI® inputs or Mix outputs
– Records and retains alpha channel data |
Storage |
Capacity varies by format, resolution and file specification
Supports recording to external storage via USB 3.0
Support for Network Attached Storage(NAS) |
Grab |
Grab full-resolution, deinterlaced still images from external video sources and outputs |
Export |
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |
PTZ |
Support for up to 4 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232*, RS422*, and IP, with integrated controls and preset system
*Requires USB to serial adapter – sold separately |
Processing |
Video: YCbCr + Alpha color space, using 4:2:2:4 Audio: 96 kHz |
Supported Media File Formats |
Import, store, and play back multimedia files, with optional transcoding, including:
• Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
• Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
• Audio: AIFF, MP3, WAV, and more |
Processing |
Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz |
Latency |
Processing Latency: ~1.0-1.5 frames |
Tally |
Support for network tally via NDI® |
MIDI |
Support for standard MIDI protocol enabling third-party device control |
NIC |
• 2 x 2.5 Gigabit NIC |
System Physical |

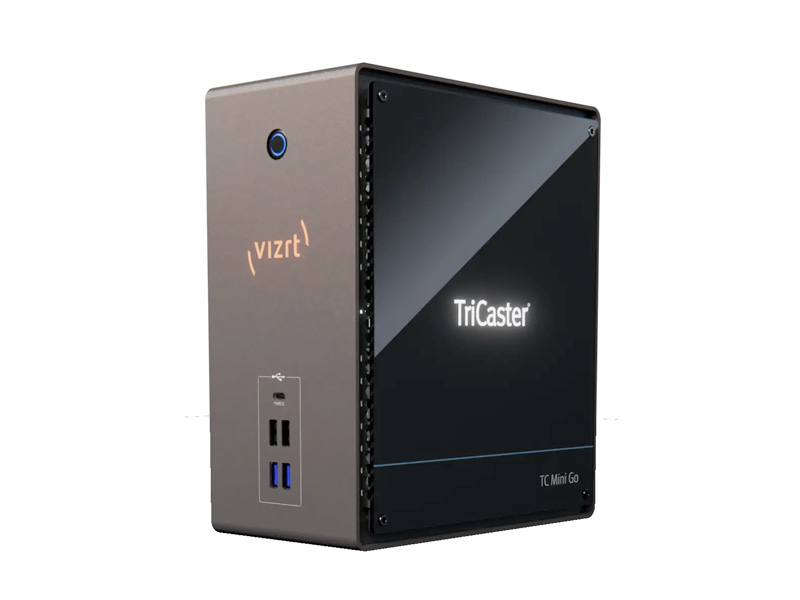

TriCaster Mini Go system chassis, including adjustable handle and cable retention bracket
– 4.23 x 9.08 x 7.89 in (10.74 x 23.1 x 20.1 cm)
– 8.4 lbs (3.8 kg) |
