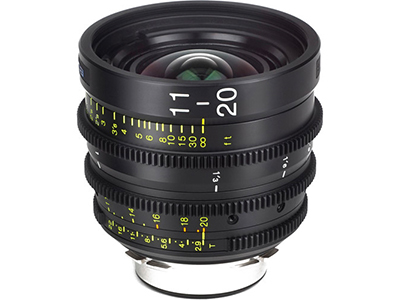

Tokina Cinema ATX 11-20mm T2.9 Wide Zoom

Code: CRK/KPC-1018PL
The Tokina Cinema ATX 11-20mm T2.9 Wide-Angle Zoom Lens features a super-wide field of view, cine-style design elements and is a parfocal lens, holding focus throughout zoom moves. The Cinema ATX 11-20mm maintains a constant T2.9 aperture throughout its zoom range, eliminating the need for exposure compensation as you zoom in.

For purchasing information

Enquire Now

Tokina Cinema ATX 11-20mm T2.9 Wide-Angle Zoom Lens (EF Mount) features a super-wide field of view and cine-style design elements. It covers Super 35mm image sensors and is a parfocal lens, holding focus throughout zoom moves. The Cinema ATX 11-20mm maintains a constant T2.9 aperture throughout its zoom range, eliminating the need for exposure compensation as you zoom in. Its durable metal housing withstands the rigors of cine production and incorporates 0.8 Mod lens gears for compatibility with FIZ (focus/iris/zoom) control systems.

Interchangeable LPL, PL, Sony E, MFT, and Nikon F lens mounts are available separately for swapping with the EF mount, expanding the lens's compatibility with additional cameras. The Tokina Cinema ATX 11-20mm incorporates low-distortion glass, and its 9-bladed iris produces attractive bokeh in out-of-focus areas. Focus (feet), iris, and zoom settings are marked on both sides of the lens barrel.

Additional cine features include a minimum focus distance of 12", 300° of focus rotation, and an industry-standard 95mm front diameter compatible with most pro-style matte boxes. An 86mm front thread provides a second filtration option especially useful for low-profile or lightweight rig configurations.

Specifications

Focal Length 11 - 20mm
Format Super35/APS-C
Image Circle 30mm
Maximum T-Stop T2.9
Maximum T-Stop f/2.8
Minimum T-Stop T22
Minimum F-Stop f/22
Minimum Focus Distance from Image Plane 0.3 m
Optical Design 14 Elements in 12 Groups
Iris Blades 9
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter 95 mm
Filter Thread 86 mm
Focus Scales Imperial
Focus Rotation 300°
Zoom Ratio 1.82x
Electronic Communication No
Maximum Magnification Ratio 1:9.65
Length 99.5 mm
Weight 1.1 kg
