Tilta Float Handheld Gimbal Support System

Code: TIL/GSS-T01-V
$2,505.00

The Tilta Float System works in conjunction with the DJI RS 2 gimbal to provide a small, compact camera stabilizer system to allow you to accomplish smooth cinematic camera movements with smaller camera setups. The counterweight-based post provides further stabilization for your setup beyond what the gimbal is already doing to allow for the smoothest possible free flowing camera movement imaginable. Also, the spring-loaded arm and support vest design puts the weight of the rig onto your torso, allowing for longer operating times before the user gets fatigued

ENQUIRE NOW

Got a question about this product?
Send us a message

Low Stock

Limited Stock - Call for availability

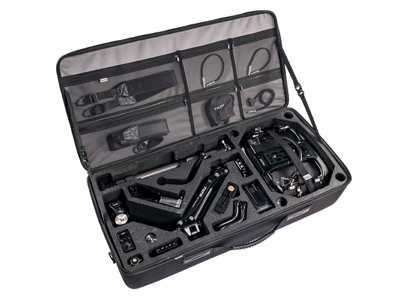

What's In The Box?

  • 1x Float System Support Vest
  • 1x Float System Arm
  • 1x Float System Post
  • 1x Float System Monitor Bracket
  • 1x Power Supply Base Plate for RS 2
  • 1x 2-Pin Lemo to 2-Pin Lemo Cable (20 cm)
  • 1x D-TAP to 2-Pin Lemo Cable
  • 1x Wireless Thumb Controller for RS 2
  • 1x Wireless Control Receiver Module for RS
  • 1x Float System V Mount Battery Plate

The Tilta Float System works in conjunction with the DJI RS 2 gimbal to provide a small, compact camera stabiliser system to allow you to accomplish smooth cinematic camera movements with smaller camera setups. The counterweight-based post provides further stabilisation for your setup beyond what the gimbal is already doing to allow for the smoothest possible free flowing camera movement imaginable. Also, the spring-loaded arm and support vest design puts the weight of the rig onto your torso, allowing for longer operating times before the user gets fatigued.

Wide Range of Usage

Pairing with a gimbal is all you need in order to achieve all of the operating needs of the industry’s newest stabiliser systems. You can easily switch between high and low modes.

Compact and Portable

When compared to the traditional Steadicam system, the Tilta Float System is built with carbon fibre and lightweight aluminium materials. The camera operator no longer needs to travel with heavy operating equipment. It sets your body free from the burden and extends the duration of operation.

This compact and inexpensive stabiliser system is quick and easy to assemble, pack, and transport.

Highly modular and detachable design. Each components can be purchased individually.

Tilta Float System Specs
Product dimensions 835x345x210mm
Product weight 10kg (Net Weight 7.5kg)
Materials Carbon fiber, aluminum, plastic, and nylon fabric
Tilta Float System Support Vest
Vest Size 600-1200mm
Extension Built-in Tilta standard 15mm quick release baseplate.
Tilta Float System Arm
Connector post diameter 12mm
Maximum payload capacity 10kg
Up and down movement range 800mm (±4300)
Tilta Float System Post
Material Carbon fibre and aluminium
Mount NATO rail
Power input/output 2-pin LEMO
Length range 500-1000mm
Tilta Wireless Thumb Controller for RS2
Tilta Wireless Thumb Controller Cold shoe mount
2.4 GHz wireless module
Remote control range 50-70m (Dependent on the location, there might be a slight variance.)
