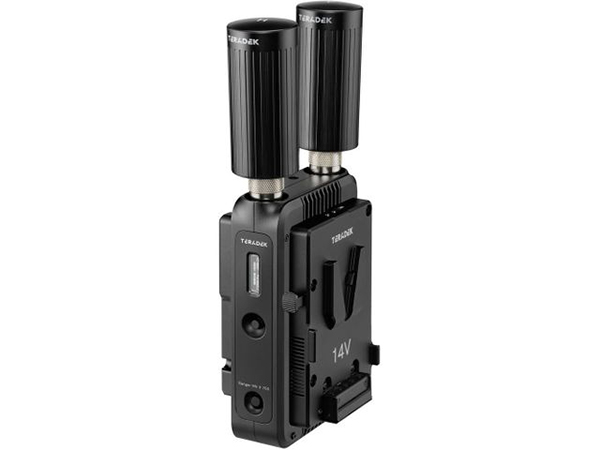

Transmit lossless HD video up to 750'(228m) with the Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter Teradek.

Key Features

• Supports 4.9 to 6.4 GHz Frequency Bands
• Transmit Video up to 750'(228m) Line of Sight
• Lossless Transmission with Zero Delay
• 4K60 10-Bit 4:2:2 HDR Support
• V-Mount Battery Plate
• 12G-SDI and HDMI Input, SDI Output
• Transmit to up to 6 x RXs
• Pairs with all Ranger Series Devices
• AES-256 Encryption, 2 x Antennas
• Launchpad App, Spectrum Analyzer

Transmit lossless HD video up to 750'(228m) with the Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter can input up to 4K60 video over HDMI or 12G-SDI with 10-bit HDR support and transmit up to 4K60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. The transmitter unit provides a powerful signal that can travel up to 750' line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.

The transmitter supports transmission of up to 4K60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. It can transmit visually lossless video to any Ranger series receiver with zero delay. The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

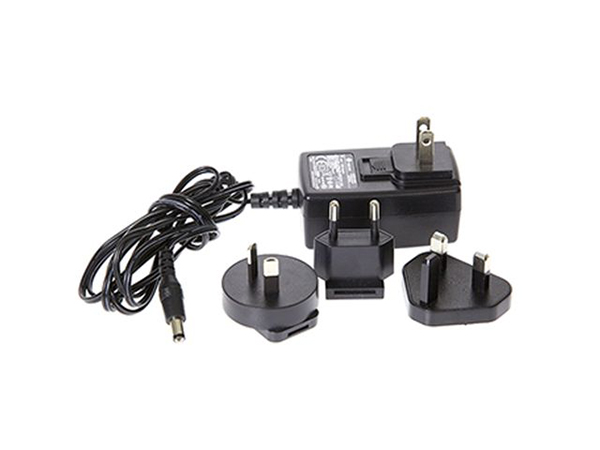

The unit is powered using a 2-pin DC input or the included V-mount battery plate, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
