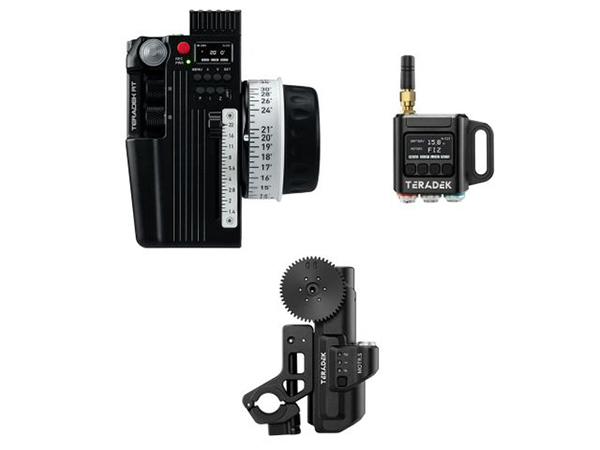

Wirelessly control your lens focus, iris, and zoom with this RT FIZ Wireless Lens Control Kit Teradek, featuring the upgraded MOTR.S lens motor, CTRL.3 wireless lens controller, an MDR.S 3-channel Bluetooth wireless receiver, and the compact MOTR.S.
Key Features
-
CTRL.3 Wireless Lens Controller
-
MOTR.S Lens Motor
-
MDR.S 3-Channel Bluetooth Receiver
-
Pre-Marked Focus Rings, Iris Strips
-
Motor, Controller, USB & Power Cables
-
Mounting Brackets, Battery, Charger
-
Carry Case
Wirelessly control your lens focus, iris, and zoom with this RT FIZ Wireless Lens Control Kit Teradek, featuring the upgraded MOTR.S lens motor, CTRL.3 wireless lens controller, an MDR.S 3-channel Bluetooth wireless receiver, and the compact MOTR.S.
The improved MOTR.S is more lightweight than previous models and is capable of fast focus, iris, and zoom adjustments. The MDR.S has a 5000' line-of-sight range and features Bluetooth and 2.4 GHz Wi-Fi connectivity. Other accessories include six imperial focus overlay mapping disks, five metric focus overlap mapping disks, and RT CTRL iris strip sliders. The kit also includes numerous cables, a battery, a charger, and a large carry case. Read more below about the items included in this kit.
Teradek CTRL.3 Three-Axis Wireless Lens Controller (Imperial)
For precise lens control with your Teradek RT motors and receivers, the Teradek CTRL.3 Three-Axis Wireless Lens Controller can control focus, iris, or zoom with ease. The CTRL.3 has an outdoor wireless range of 5000' and an indoor wireless range of 500'. You can also use the included 5-pin monitor interface cable to connect directly to a monitor.
The large focus knob, flexible mounting options, OLED display for configuration and lens data, and its lightweight design make the CTRL.3 accessible and easy to use. It's powered by a single LP-E6 battery (available separately) which provides approximately 36 hours of usage time. Features include a lens mapping firmware update to utilize the included pre-marked focus or iris rings for quick autocalibration when switching lenses during a shoot. The CTRL.3 comes with five white discs Type-B, a 3' USB cable, a SmallHD monitor interface cable, a large case, six pre-marked focus rings, and four Iris strip sliders.
Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
With 3-channel lens control in an ultracompact form factor, the MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth Teradek allows you to control compatible RT motors for wireless focus, iris, and zoom functionality. The MDR.S has FHSS wireless technology that prevents interference and a 5000' line of sight range. A 6-pin port on the receiver allows you to trigger run/stop on the camera from your connected hand unit.
The MDR.S features a built-in OLED display with four buttons for control over various functions. Further parameters can be controlled via the device's integrated Bluetooth and the Teradek RT smartphone app. A 28V input range allows you flexibility in powering the receiver.
Features at a Glance
- Daisy-chain up to three motors
- 28V input range increases power compatibility
- Remotely configure lens maps and more settings via the Teradek RT app
- Replace and customize the external antenna
- Integrated overlays for SmallHD monitors to display lens information like focus distance, focal length, iris, zoom, etc.
- Onboard buttons toggle menu, display, link, and motors
- OLED displays battery and motor information
Teradek RT MOTR.S Lens Motor
Designed to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.
An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.
MOTR.S Upgrades
- More compact and lightweight form factor
- Redesigned aluminum chassis, reinforced sockets, next gen circuit boards
- New 15/19mm rod clamp with better located handle
- 0.95nm maximum torque, 297 teeth per second
