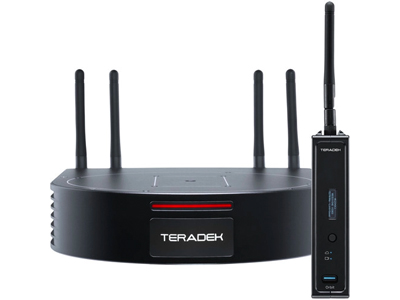

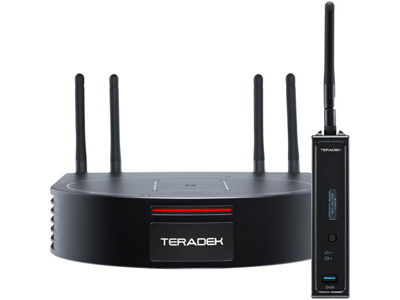

Teradek Orbit PTZ HD Wireless TX/RX Set

Code:

Transmit zero-delay, uncompressed, 1080p60 video and camera control commands over a range of up to 1,000 ft. (305m). Orbit PTZ mounts beneath any PTZ camera and includes a looping power supply, giving you a seamless, long-range wireless solution for quick deployment and cable-free workflows.

For purchasing information

Enquire Now

Transmit zero-delay, uncompressed, 1080p60 video and camera control commands over a range of up to 1,000 ft. (305m). The Orbit PTZ mounts beneath any PTZ camera and includes a looping power supply, giving you a seamless, long-range wireless solution for quick deployment and cable-free workflows.

Live Production Has Never Looked This Good

Orbit PTZ takes your PTZ camera and makes it completely wireless. Transmit uncompressed HD video, as well as Sony VISCA and Panasonic camera control commands up to 1,000 ft. away with no delay.

Power Through Channel Interference

Orbit PTZ uses Teradek's patented Joint Source Channel Coding (JSCC) to transmit video over the unlicensed 5GHz band, providing far better channel utilisation and handling of interference than competing H.264 / HEVC transmission methods.

Real-Time Camera Control

Orbit PTZ features RS-232 and RS-422 connectivity for PTZ camera control. Camera commands travel over a zero-latency wireless link between transmitter and receiver, with support for VISCA and Panasonic AW protocols.

Unbreakable Encryption

Orbit PTZ offers the industry’s best protection against prying eyes with AES-256 encryption and RSA 1024 key pairing. Combined, these two technologies ensure nobody can decrypt your wireless feed or connect another receiver to your system without explicit authorisation.

Easy Mobile Configuration

Command your wireless workflow from the palm of your hand with the Launchpad app for iOS and Android. Pair transmitters and receivers with the touch of a button, monitor channel interference, set operating frequencies, and control your PTZ cameras directly from the app, no cables needed!

Features

  • Wireless HD HDR video with < 1 ms latency
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Up to 300m of wireless range
  • License-free 5GHz operation
  • Transmit PTZ camera control commands via RS-232 and RS-422
  • AES-256 and RSA 1024 encryption
  • Integrated tally light

Uncompressed HD HDR Video

Less than 1 ms Latency

Integrated Tally Light

Universal Mounting and Power Options

License-Free 5 GHZ Operation

With Manual Channel Selection

Unbreakable Encryption

AES-256 and RSA-1024

Compatibility

PTZ Cameras:

Panasonic: AW-HE38H, AW-HN38H, AW-HE40H, AW-HN40H, AW-HE40S, AW-HE42, AW-UE70, AW-UN70, AW-HE130, AW-HN130, AW-UE150

Sony: BRC-X400, BRC-X1000/1, BRC-X1000/WPW, BRC-H900, BRC-H800/1, BRC-H800/WPW, SRG-360SHE, SRG-300SE, SRG-300H, SRG-300H/W, SRG-120DH, SRG-120DS, SRG-120DU

PTZ Optics: SDI Cameras (6 models), USB3 Cameras (4 models), NDI Cameras (8 models)

Bolin Technology: VCC-8-4K20S-3SM

Ross Video: PIVOTCam-SE, PIVOTCam-20

Newtek: NDI PTZ Camera

Lumens: VC-A70H, VC-A60S, VC-A50PN, VC-A50P, VC-A51S

Marshall Electronics: CV620-WH2 / CV620-BK, CV620-NDI / CV620-NDIW, CV620-IP / CV620-IPW

Controllers:

Sony: RM-IP10, RM-IP500

Panasonic: AW-RP50, AW-RP60, AW-RP150

HuddleCam: HDHC-JOY-G2 PTZ

Wireless Range 1000' / 304.8 m (Line-of-Sight)
# of Channels 13 (40 MHz)
Frequency Range Non-DFS Frequencies
5.19 to 5.23 GHz
5.76 to 5.79 GHz
Non-DFS Frequencies
5.27 to 5.67 GHz
Latency < 1 ms
RF Power 19 dBm
Wireless Video Compression Uncompressed
Antenna Ports 4 x RP-SMA Female
Video Connectors 1 x HDMI Input
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Loop Output
Other I/O 1 x DE-9/DB-9 RS-232 Input/Output
1 x RJ45 RS-422 Input/Output
1 x USB Micro-B USB 2.0 Input
Embedded Audio HDMI: 2-Channel
SDI: 2-Channel
Encryption 256-Bit AES
Video Format SDI/BNC:
1080p 4:2:2 10-Bit at 60 fps
1080PsF 4:2:2 10-Bit at 23.98, 24, 25, 29.97, 30 fps
1080i/720p 4:2:2 10-Bit at 50, 59.94, 60 fps
480p at 59.94, 60 fps
576p at 50 fps
576i at 50 fps
480i at 59.94 fps
HDMI:
1080p 4:2:2 10-Bit at 60 fps
1080PsF 4:4:4 8-Bit at 23.98, 24, 25, 29.97, 30 fps
1080i/720p 4:4:4 8-Bit at 50, 59.94, 60 fps
480p at 59.94, 60 fps
576p at 50 fps
576i at 50 fps
480i at 59.94 fps
Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio
Format Conversion Scaling
Panel Type OLED
Power Connector 1 x 4-Pin XLR (7 to 28 VDC) Input
1 x 4-Pin XLR Output
Power Consumption Device: (20 W)
Operating Temperature 32 to 104°F / 0 to 40°C
Mounting 1 x 3/8"-16 Female
Materials Aluminum
Dimensions 230 x 183 x 42.5 mm
Weight 998 g
