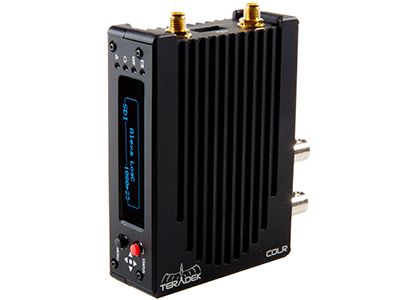

Teradek COLR

Code: BLO/TD-10-0070

COLR is a real-time LUT box, camera control bridge, and HDMI/SDI cross-converter in one tiny package. COLR integrates with Pomfort LiveGrade Pro, allowing DITs and colourists to give everyone the right look.

For purchasing information

Enquire Now

What's In The Box?

  • 1 x Power Supply Unit 2-pin Connector to 18W AC Adapter(Int) - 1.8m Cable
  • 2 x SDI - BNC to BNC Cable
  • 1 x Quickstart Guide - COLR
  • 2 x Antenna 2dBi WiFi 2.4/5.8 GHz
  • 1 x Mini-USB to USB - 45cm Cable
  • 1 x Free Trial Code for Pomfort LiveGrade Pro
  • 1-Year Warranty

COLR is a real-time LUT box, camera control bridge, and HDMI/SDI cross-converter in one tiny package. COLR integrates with Pomfort LiveGrade Pro, allowing DITs and colourists to give everyone the right look.

Looks Mean Everything

During camera prep, on your cart, through colour timing or on camera, COLR enables directors, ACs, and DITs to see what they need. Multiple presets, combining CDL and 3D LUTs, can be stored on the device for quick conversion or custom looks at the touch of a button. For even more control over the look of your footage, COLR Duo offers two fully configurable SDI outputs, allowing you to display two independent 33pt 3D LUTs or even the same LUT across two monitors.

Works with Pomfort LiveGrade

COLR is integrated with Pomfort LiveGrade Pro, giving you fine control over your LUTS using WiFi, Ethernet, or USB. Each LUT can be sent to COLR and applied to your image immediately from within the application.

Monitor Calibration with SpectraCal

Whether your production requires industry standard colour and gamma-accurate monitors or large consumer-grade screens, COLR is compatible. With SpectraCal’s CalMAN software, you can use the COLR and COLR Duo to calibrate a video display with a 10-bit 33pt 3D LUT. To learn more, visit the CalMAN Setup Guide.

Connected Set

With COLR as a piece of the puzzle, the Connected Set initiative encourages seamless integration between all Teradek products, ultimately streamlining on and off-set workflows. This will support a consistent workflow throughout the production process, whether on-set with zero delay transmission, iPad monitoring, or for off-site dailies review and final colour grading. Stay ahead of the curve via free firmware upgrades and native integration with other Teradek products including Bolt, Cube, and LOKR.

Video
Video Inputs: 1 x SD/HD/3G-SDI (75 Ohm BNC)
1 x HDMI Type-A receptacle
Video Outputs: 1 x SD/HD/3G-SDI (75 Ohm BNC)
1 x HDMI Type-A receptacle
Color Sampling: SDI Input/Output: 10-bit YCrCb 4:2:2
HDMI Input: supports 8-bit RGB 4:4:4, 8-bit YCrCb 4:4:4, 12-bit YCrCb 4:2:2
HDMI Output: 8-bit RGB 4:4:4
Supported Resolutions 1080p 23.98/24/25/29.97/30/50/59.94
1080i 50/59.94/60
1080PsF 23.98/24/25
720p 50/59.94/60
480p59.94, 576p50 (HDMI only)
480i59.94, 576i50
Video Processing
Test Pattern Generator Support: None
Video Format Conversion Support: None
Color Correction CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color)
Protocol Support
Network Protocols TCP/IP, UDP, HTTP, DHCP
Software Or Platform Integration
Pomfort LiveGrade, SpectraCal CalMAN, and more
Inputs
Audio Input Embedded HDMI and SDI Audio Input
Outputs
Audio Output Embedded HDMI and SDI Audio Output
Physical
Dimensions 50.8 x 25.4 x 101.6 mm (2” x 1” x 4” )
Weight 170.1g
Interfaces
Http WebUI for Configuration and Control
Configuration Interfaces OLED Display with joystick navigation buttons
Switches On/Off Switch
Usb Interface Functionality Powered USB 2.0 host port
Network
Ethernet 10/100/1000BASE-T Gigabit
WiFi 2.4/5GHz 802.11 ac/a/b/g/n MiMO
Rf Channel Selection Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only), Configurable to specific channels
Power
Power Input 2 Pin Connector Power Input
Nominal Power Consumption 8W, 7W(no WiFi)
Auxiliary Power Input 6-28V DC
