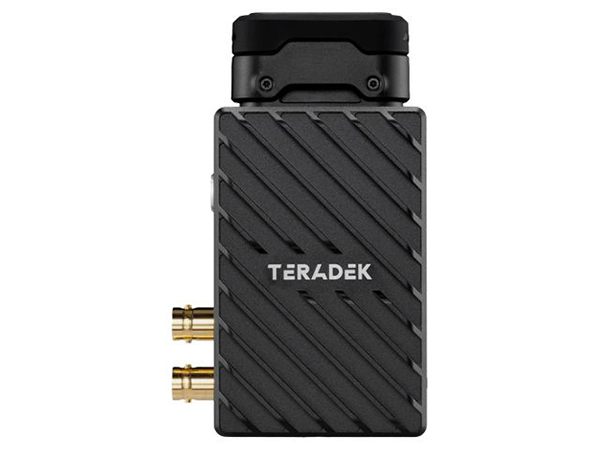

The Teradek Bolt 6 LT 750 TX is a compact HDMI/3G-SDI transmitter with internal antennas that supports zero-delay transmission of UHD 4K30 video to up to six receivers over 6GHz or 5GHz, with HDR support, AES-256 encryption, and Bluetooth mobile app configuration.
Key Features
-
3G-SDI/HDMI Transmitter
-
Supports 6 GHz Frequency Band
-
Supports up to 4K30 Resolution 10-Bit 4:2:2 HDR Support HDMI Input
-
3G - SDI Output
-
Sleek Design with Internal Antennas
-
Cross-Compatibility Bolt 4K series with zero delay using the 5 GHz band
-
Bluetooth Mobile App, Spectrum Analyzer
-
AES-256 Encryption
-
Transmit to up to 6 Receivers
-
NO PLATE
Sleek Design with Internal AntennasThe antennas in this transmitter are all tucked inside, producing a sleek, compact form. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
Transmits to up to Six ReceiversThe transmitter supports transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.
Cross CompatibilityThough it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
Up to UHD 4K30 via HDMI- Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI and output via an SDI loop out.
- Supports Rec 2020 HDR in 10-bit 4:2:2 colour gamut.
- The wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration.
