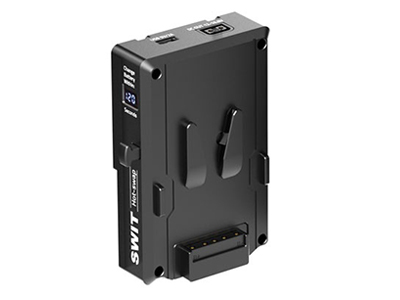

SWIT V-Lock Hotswap Plate

Code: SWI/KA-S30S
$1,155.00

The KA-S30S is a V-Lock extended plate with battery cells inside, and when you changing battery, the plate will take over the power supply until a new battery is mounted on. So you don’ t need to switch off the cameras with this hot-swap plate.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when SWIT V-Lock Hotswap Plate is back in stock.

What's In The Box?

  • Swit V-Lock Hotswap Plate
  • 15mm Rod Adaptor

Key Features

  •   14.4V V-Lock Hotswap
  •   43Wh, 200W constant load cells inside
  •   At least 2 minutes run time
  •   Countdown seconds display
  •   D-tapx2, 2-pin LEMO, USB output
  •   8-pin LEMO input for power station hotswap
  •   SONY & RED digital power info
  •   Aluminum CNC unibody housing
  •   Support 15mm rod clamp install
  •   Multiple circuit protections

    V-Lock Hot-Swap Plate

    KA-S30S is a V-Lock extended plate with battery cells inside, and when you changing battery, the plate will take over the power supply until a new battery is mounted on. So you don’ t need to switch off the cameras with this hot-swap plate.

    At least 2 mins at 200W load

    KA-S30S has CNC aluminum housing, 4 battery cells inside, 14.4V nominal voltage, 43Wh capacity, 200W constant high load. The full capacity plate will ensure at least 2 minutes at 200W load even after 1000 cycle times.

    120 Seconds Countdown Display

    The hotswap plate provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120s. You just need to put on a new battery before it count down to 0. The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120s after a period of time.

    Power Interfaces

    KA-S30S provides: 1x 2-pin LEMO 12-16.8V 38W/3A out 2x D-tap 12-16.8V 125W/10A out 1x USB-A 5V/2A output 1x 8-pin LEMO 12-16.8V input (For power station hotswap)

    15mm Rod Adapter

    KA-S30S provides with a free 15mm Rod Adapter in the package, to install on 15mm rig systems to power the cameras without V-Lock plate.

Specifications
Inner battery voltage 14.4V nominal, 12-16.8V
Inner battery capacity 43Wh/3Ah
Power load 200W/16A constant high load
D-tap output x2 12-16.8V, 125W/10A each, 200W/16A in total
2-pin LEMO output 12-16.8V, 38W/3A
USB-A output 5V, 10W/2A
8-pin LEMO input 12-16.8V
Dimensions 93×143×42mm
Net weight 691g
