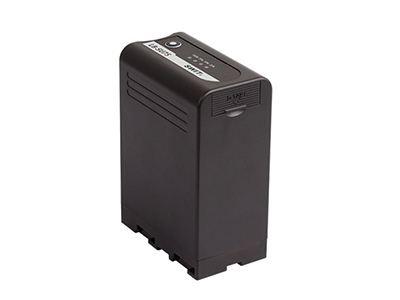

Swit LB-SU75 75WH Battery (Sony BP-U)

Code: SWI/LB-SU75
$295.00
The Swit LB-SU75 is the replacement battery for the Sony BP-U60, and is compatible with Sony Camcorders including PXW-FX9 / FS7 / FS5, PXW-Z280 / Z190 / X280.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

The Swit LB-SU75 is the replacement battery for the Sony BP-U60, and is compatible with Sony Camcorders including PXW-FX9 / FS7 / FS5, PXW-Z280 / Z190 / X280.

75Wh / 5.2Ah High Capacity

With 14.4V nominal voltage, the LB-SU75 has 75Wh / 5.2Ah capacity, and can run approx. 2 hours 50 minutes on SONY PXW-Z280 camera.

Built-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the side of LB-SU75 battery, for DC14.4V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the D-tap socket, and get power simultaneously with camera. The Max power from D-tap is 50W, 4A.

The D-tap socket can also be used as charging input, by SWIT portable charger PC-U130B/B2.

Built-in 5V/2A USB Socket

Connect your USB devices like smart phone or pad to the USB socket of LB-SU75, press the power check button, and then the battery will start to output 5V/2A power to charge your devices.

LED Power Indicator

The LB-SU75 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using. The power check button can also be used to trigger USB charging.

Easy Charging

The LB-SU75 can be charged on SWIT 2-ch charger S-3602U or 4-ch charger LC-D421. And you can also use SWIT PC-U130B/B2 Portable D-tap Charger for LB-SU75.

By S-3602U/LC-D421 will take about 3 hours and 30 minutes to charge from empty to 100%.

By PC-U130B/B2 will take 2 hours and 10 minutes to fully charge.

Nominal Voltage 14.4V
Capacity 75Wh, 5.2Ah
Max output power Total: 50W, 4A
Pins: 50W, 4A
D-tap: 50W, 4A
USB: 5W, 2A
Compatible cameras SONY PXW-FX9
SONY PXW-Z280, Z190
SONY PXW-FS5, FS7
SONY PXW-X280
Dimension 70×42×96mm
Net weight Approx 427g
