Built-in De-log 3DLUTs

The FM-24DCI monitor provides multiple De-log 3DLUTs to convert log mode to REC709 for all major cameras.

Including;

• ARRI LOG R709
• RED RLF RG3
• SONY SL2 LC709A
• SONY SL3C L709A
• Pana V-Log V709
• Canon CinCL1 WDR
• Canon CinCL2 WDR
• BMD CC FILM V
• BMD PC FILM V2

SDI 1/2 PIP and PBP

The FM-24DCI monitor supports 2x SDI Pic-in-Pic or Pic-by-Pic display mode.

Under Pic-in-Pic mode, the sub input window can be set to bottom-left or bottom-right, and size adjustable.

Input/Output Interfaces

The FM-24DCI monitor monitor supports：

• 3G/HD/SD-SDI input × 2
• 3G/HD/SD-SDI loop output × 2
• HDMI 1.3 input × 1
• Ethernet RJ45 × 1
• USB-A LUT/Firmware input × 2

And supports 4x user 3DLUT cubes or calibrated 3DLUT cube uploaded by USB stick.

Closed Caption

The FM-24DCI monitor supports closed caption of 608(708), 608(ANC) and 608(VBI) standards.

2 AUTO modes are provided for easy setup:

• Auto1: Set to 608(VBI) for SD-SDI and 608(708) for HD-SDI
• Auto2: Set to 608(ANC) for SD-SDI and 608(708) for HD-SDI

Power Input and Output

The FM-24DCI monitor provides a V-mount battery plate, and supports 12-17V 4-pin XLR input and 100-240V AC input.

The FM-24DCI monitor also provide 2x USB 5V/1A output and 1x 2-pin LEMO socket to output battery power.

Anamorphic de-squeeze

Enables de-squeeze the image from a camera utilizing anamorphic lens, Aspect Formats:

• 16x9
• 4x3
• x1.3 Anamorphic De-Squeeze
• x2.0 Anamorphic De-Squeeze
• x2.0 MAG Anamorphic De-Squeeze

Key Features

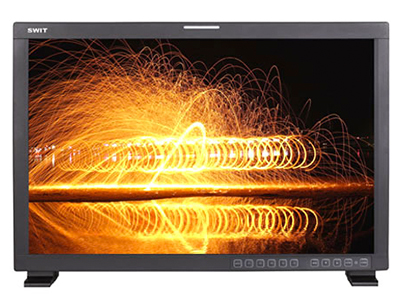

• 24” 1920×1200 non-glaring LCD
• 10-bit LCD, 12-bit internal process
• 100% DCI-P3 Color Gamut
• 3G/HD/SD-SDI, HDMI and CVBS
• Multi-camera logs to Rec.709
• DIT user 3DLUT cube upload by USB
• Closed Caption
• Webserver IP remote control
• Waveform / Vector scope / Histogram
• 16-ch embedded audio meters
• Peaking focus assist with precision adjustment
• Exposure assist / Zebra / Blue only
• Anamorphic de-squeeze / Multiple markers
• USB firmware upgrade
• V-mount or 4-pin XLR or AC input

Webserver IP Remote Control

The FM-24DCI monitor supports webserver remote control by Ethernet LAN connection.

Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

Waveform / Vector scope

The FM-24DCI monitor supports Waveform (LUMA) and Vector scope (75% or 100%) display. The patterns can be switched on/off individually, display position (Left/Right) selectable.

Embedded audio monitoring

The monitor can display 16-ch embedded audio meters.

The display mode can be:

• CH1-2
• CH1-16
• CH1-4 and CH5-8
• CH1-4 and CH9-12
• CH1-4 and CH13-16
• CH5-8 and CH9-12
• CH5-8 and CH13-16
• CH9-12 and CH13-16

Function Keys Assign

There’re 5 F-keys to assign different functions, to quickly switch on/off the functions.

The available functions are:

• Native Mute
• Anamorphic Pic-by-Pic
• Blue only Closed Caption
• Mono Freeze
• Marker Focus assist
• Audio meter Zebra
• Fast mode H Flip
• Time code False color
