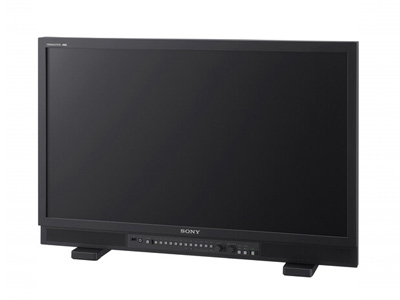

Sony PVM-X3200 32-inch 4K HDR TRIMASTER Monitor

Code: SOC/PVMX3200

The PVM-X3200 is a 32-inch 4K HDR high grade picture monitor, incorporating a Sony-specified premium LCD panel that offers 1000 cd/m2 luminance and colour matching with the BVM-HX310 4K HDR master monitor.

For purchasing information

Enquire Now

4K HDR picture monitor colour-matches with the BVM-HX310 master monitor, ideal for 4K and HD productions

The PVM-X3200 is a 32-inch 4K HDR high grade picture monitor, incorporating a Sony-specified premium LCD panel that offers 1000 cd/m2 luminance and colour matching with the BVM-HX310 4K HDR master monitor. This makes group monitoring easy for on-set, studio and truck applications, and in 19” EIA racks for editing, audio mixing etc.

TRIMASTER assures accurate colour reproduction, precise imaging and consistent picture quality

Sony’s acclaimed TRIMASTER architecture delivers accurate picture reproduction, precise imaging and quality picture consistency. There are many advantages in the panel control and signal processing system such as fast processing, accurate linearizing of an input signal with Optical Electrical Transfer Function, accurate colour reproduction, etc.

HDR-SDR conversion support

The optional PVML-HSX1, HDR-SDR conversion license, the PVM-X3200 supports HDR-SDR conversion in live production environments. The license activates: 4K to HD down-conversion, colour space conversion, OETF conversion, Progressive to Interlace conversion and Quad-link 3G to Single-link 12G conversion. It also allows the output of converted pictures to other 4K or HD monitors via the Enhanced Monitor Output. This feature facilitates local or remote monitoring of converted signals.

User 3D LUT signal output support

The optional PVML-HSX1 HDR-SDR conversion license also supports the output of signals with applied User 3D LUTs via the Enhanced Monitor Output to other 4K/HD devices further facilitating efficient workflows in live production, cinema, drama, commercial, music and documentary production environments.

SR Live metadata

It's support for SR Live metadata which enables the PVM-X3200 monitor settings to be matched to the incoming signal. You can also confirm the SR Live metadata parameters on an incoming SDI signal in the Status menu. This helps to streamline use of the monitor in SR Live workflows.

Dynamic Contrast Drive and Black Detail High/Mid/Low

Dynamic Contrast Drive is a new backlight control system that dynamically changes the panel’s backlight luminance to adapt to changing content enabling you to confirm the total balance of highlights and low lights at a glance. The feature can be used to reproduce black representation in dark content, such as night scenes and provide specular highlights in bright content such as snow field and summer beach scenes. The Dynamic Contrast Drive feature provides a dynamic contrast ratio of 1,000,000:1.

Due to the inherent nature of LCD panels, some backlight leakage is unavoidable. To compensate, Black Detail Mode High/Mid/Low facilitates more accurate monitoring of black detail in dark, low- APL (average picture level) images. The backlight level is reduced but gamma is maintained for correct colour and grey scale. High luminance areas may be clipped due to the dynamic range of the monitor. Any clipped portions can be displayed as clipped or highlighted by a zebra pattern.

Inputs for 12G-SDI and Quad-Link 3G-SDI to HD-SDI as well as HDMI

The PVM-X3200 provides 12G-SDI inputs, and can accept quad-link 3G-SDI and a single HD-SDI from traditional devices. The monitor also supports an HDMI connection for display of inputs with signal formats ranging from 640x480/60P PC up to 4096x2160/60P 4:2:2 YCBCR 12bit.

Various scopes

A waveform monitor and vector scope can be simultaneously displayed with scales for both HDR and SDR, supporting signal confirmation of both input signal level and output luminance. There are three different displays for luminance, RGB/YCBCR parade or RGB overlay with the gamut error display. The waveform of a specified line can also be displayed.

Furthermore, with future firmware*, a colour gamut scope will be available that maps colours in the CIE1931 standard chart with the standard colour space area display.

* This firmware update will be available at a later date. The schedule of it has not been determined yet and it will separately be informed. V2.0 firmware is upgradeable via the monitor’s USB port

Unique quad view display with User 3D LUT

The PVM-X3200 provides a quad view display, with individual settings for EOTF (SDR/HDR), colour space, transfer matrix, colour temperature, contrast, brightness, SDI/HDMI, RGB/YCBCR, as well as User 3D LUTs for each display view. It's also supports the display of scopes when monitoring in Triple or Dual picture modes.

Enhanced user interface and channel select button

The monitor’s OSD (On Screen Display) has been significantly enhanced to make operation faster and more intuitive. The new design enables review and quick adjustment of settings. The Channel select button protects users from making inadvertent setting errors.

Optimised features for field operation

Yoke-mounting is also supported. Field operation is further enhanced by false colour and camera focus functions*. The false colour feature assigns the in-coming signal different colours for different exposure levels, providing a fast and effective tool for verifying exposure. The Focus Assist feature displays incoming images with sharpened edges to help determine camera focus. The sharpened edges can be displayed in user-selectable colours (white, red, green, blue, and yellow) for more precise focusing.

* This firmware update will be available at a later date. The schedule of it has not been determined yet and it will separately be informed. V2.0 firmware is upgradeable via the monitor’s USB port.

Various mount capabilities

Yoke-mount and wall mount options are also available for installation in a C stand for field use, or on a desktop arm for editing.

Powerful stereo sound with audio muting

The PVM-X3200 incorporates stereo speakers (2W+2W) with audio muting.

Specifications

Display

Panel Type TFT LCD
Display Size 32.00" / 81.3 cm
Screen Area 27.89 x 15.69" / 708.48 x 398.52 mm
Resolution 3840 x 2160
Aspect Ratio 16:9
Viewing Angle Horizontal: 178° (89/89)
Vertical: 178° (89/89)
Touchscreen No
Maximum Brightness 1000 cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
HDR Compatibility None
Pixels Per Inch (ppi) 137 ppi

I/O

Video 2 x BNC (12G-SDI/6G-SDI/3G-SDI/HD-SDI) Input
2 x BNC (3G-SDI/HD-SDI) Input
1 x HDMI Type A (HDMI 1.4) Input
2 x BNC (12G-SDI/6G-SDI/3G-SDI/HD-SDI) Output
2 x BNC (3G-SDI/HD-SDI) Output
HDCP Support Yes, Version 2.3
Audio 1 x 1/8" / 3.5 mm Monitor Output
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker 2 x 2 W
Other I/O 1 x Parallel (RJ45) Input
1 x LAN (RJ45) Input
Media/Memory Card Slot None
Wi-Fi None

Power

AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 280 W

Environmental

Operating Temperature 32 to 95°F / 0 to 35°C
68 to 86°F / 20 to 30°C (Recommended)
Operating Humidity 30 to 85%
Storage Temperature -4 to 140°F / -20 to 60°C
Storage Humidity 0 to 90%

General

Dimensions 29.6 x 19.5 x 6.1" / 752 x 494.5 x 155 mm, Excluding Stand
29.6 x 20.2 x 9.1" / 752 x 513 x 229.9 mm, Including Stand
Weight 34.2 lb / 15.5 kg
Warranty Length Limited 1-Year Warranty
