Sony ECM-V1BMP Electret Condenser Mic with Locking 3.5mm Connector

Code: SOC/ECMV1BMP
$170.00

ECM-V1BMP is an omnidirectional lavalier microphone with a locking 3.5mm connector wired specifically for use with selected Sony bodypack transmitters, including the UWP series.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Sony ECM-V1BMP Electret Condenser Mic with Locking 3.5mm Connector is back in stock.

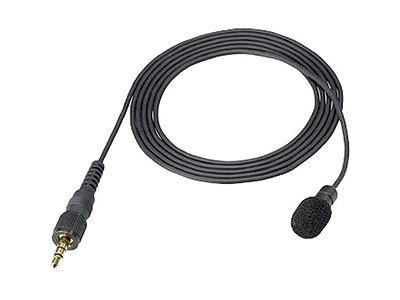

The black Sony ECM-V1BMP is an omnidirectional lavalier microphone with a locking 3.5mm connector wired specifically for use with selected Sony bodypack transmitters, including the UWP series.

The microphone features an omnidirectional polar pattern that picks up sound in a 360° radius around the mic capsule, helping to deliver consistent levels, even if the talent turns away from the capsule. The electret condenser capsule is optimized to run on 5 VDC, but will function with a 1.1 to 10 VDC power source.

The ECM-V1BMP offers a wide 40 Hz to 20 kHz frequency response and features 2.3mm diameter cable with a 3.9' length.

Audio Section
Capsule Type Electret Condenser
Frequency Response 40 Hz to 20 kHz
Directivity Omni-directional
Sensitivity -43.0 ±3 dB
Output Impedance 1.2kΩ±30%, Unbalanced
Dynamic Range 86 dB or more
Signal-to-Noise Ratio 60 dB or more
Inherent Noise 34 dB SPL or less
Maximum Input Sound Pressure Level 120 dB SPL
General Section
Connector BMP type. Supplied with o3.5 mm, 3-pole mini plug.
Mic Cable 3.9 feet
1.2 m
Power Requirements DC 5 V
Power Consumption 0.2 mA or less
Dimensions φ9/32 x 25/32 inches
φ6.8 x 19.5 mm
Mass Approx. 16.2 g
Approx. 0.57 oz
