SmallHD Focus Pro RED KOMODO 5" Monitor Kit

Code: KAY/33.1.MON-FOC-P-KOM
$1,260.00

This kit comes with a Focus Pro Monitor, Camera Control for RED KOMODO (software license), and a KOMODO Control Cable (5-pin to 9-pin Connector). Designed specifically to pair with the RED KOMODO, Focus Pro maintains the same reliable SmallHD clarity, vivid color detail, and dynamic touchscreen camera control while offering an equal balance between durability and lightweight design.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

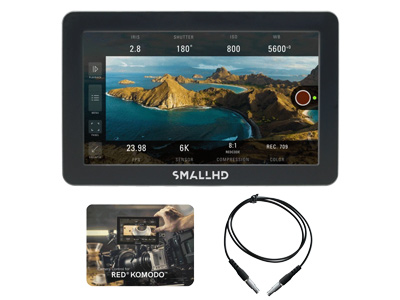

What's In The Box?

  • 1x Focus Pro 5" Monitor
  • 1x RED KOMODO Control Licence
  • 1x KOMODO control cable
  • 1x SmallHD Cleaning Cloth
  • 1x UltraClear Screen Protector
  • This kit comes with a Focus Pro Monitor, Camera Control for RED® KOMODO™ (software license), and a KOMODO Control Cable (5-pin to 9-pin Connector). Designed specifically to pair with the RED® KOMODO™, Focus Pro maintains the same reliable SmallHD clarity, vivid color detail, and dynamic touchscreen camera control while offering an equal balance between durability and lightweight design. Unlock access to all camera features available thru RED Camera Protocol (RCP2) with the included software activation instructions, and tap into the internal camera settings with intuitive touchscreen configuration tools.

    Robust Design

    The elegance of strength.

    Focus Pro fuses perfectly with KOMODO's compact, featherlight body: Constructed with a sturdy, milled aluminum chassis that weighs only 9.6 oz, Focus Pro OLED withstands heavy everyday operation and frees you to operate on the fly, without the restrictions of weight. 3 x ¼”-20 mounting points make it easy to secure to a rig, and the new Focus Pro Hinge Mount (sold separately) gives KOMODO users the flexibility to tilt the monitor for optimal viewing.

    Brilliant LCD Monitoring

    See everything.

    Focus Pro offers a radiant 5-inch display with sharp resolution and bright daylight visibility for accurate image control in every environment. The SDI input provides real-time monitoring, and retracting menus offer an unobstructed field of view, so you see exactly as KOMODO sees.

    SmallHD PageOS 4

    Every tool you need for absolute precision.

    With the power of the new PageOS 4 software, utilize all of the dependable SmallHD features such as customizable frame guides, Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and--as always--achieve tack-sharp critical focus with SmallHD Focus Assist.

    Extended Energy

    Once you start, never stop.

    Low power consumption allows you to run without excessive swapping. A redesigned battery mount provides a stronger, more secure attachment for all compatible L Series type batteries, while the monitor may also be powered by an external source via a 2-pin input.

    Camera Control Access

    Access all camera features available thru RED Camera Protocol (RCP2)

    Specifications

    Display

    Number of Displays 1
    Panel Type IPS-Type LCD
    Display Size 5.0" / 12.7 cm
    Screen Resolution 1280 x 720
    Aspect Ratio 16:9
    Viewing Angle 160°
    Touchscreen Yes
    Maximum Brightness 800 cd/m2
    Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
    Pixels Per Inch (ppi) 293 ppi
    Color Gamut 70% NTSC
    Real-Time LUT Monitoring SDR
    Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Image Flip, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

    I/O

    Video 1 x BNC (3G-SDI) Input
    Embedded Audio SDI: 2-Channel
    Audio 1 x 3.5 mm Headphone Output
    Built-In Speaker None
    Power 1 x 2-Pin LEMO Input
    Other I/O 1 x RCP (5-Pin LEMO) Output
    Card Slot 1 x SD
    Wi-Fi None
    Format Support
    Video Format SDI (10-Bit 4:2:2 YCC)
    1080p: 60/59.94/50
    1080i: 60/59.94/50
    480i: 29.97
    576i: 50
    SDI (4:4:4/4:2:2 RGB, YCC)
    1080p: 60/30/25/24/23.98
    1080PsF: 29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50

    Power

    DC Input Power 7 to 16.8 VDC
    Battery Type 1 x L-Series

    Mounting

    Mounting 3 x 1/4"-20 Female

    General

    Material of Construction Aluminum
    Weight 9.6 oz / 272 g
    Warranty Length Limited 1-Year Warranty
