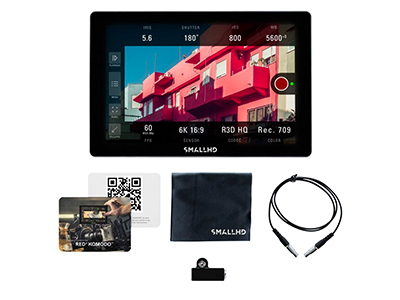

SmallHD Cine 7 RED Komodo Kit

Code: KAY/33.1.MON-CINE7-KOMOD
 NO LONGER AVAILABLE

Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, as well as Teradek RT and Bolt 4K integration. Unlock access to KOMODO with the included software license for Cine 7 monitors, and tap into the internal camera settings with intuitive touchscreen configuration tools. *Camera and SDI Cable are not included.





Camera Control for RED® KOMODO™ Access all camera features available thru RED Camera Protocol (RCP2)

PageOS 4 Software Toolset User page presets, Focus Assist, frame guides, 4K HDR (PQ) waveforms, improved false color, Color Pipe log conversion,Teradek RT Overlays, and more. Monitor camera metadata, lens control, timecode, and start/stop flags.

Features

The Industry Standard 7” Monitor

  • Full HD 7-inch IPS LCD with 1920x1200 resolution
  • 10-bit color processing in 100% DCI-P3
  • 1800nits of brightness
  • 4K & HDR compatible
  • 160-degree viewing angle

Multiple I/O

  • Input: 1x 3G-SDI, 1x 3G-SDI In/Out, 1x HDMI 2.0, 1x Micro USB, 1x Ethernet Port
  • Output: 1x 3G-SDI, 1x HDMI 2.0

Power Input Options

  • 2mm barrel connector port
  • Included Sony L-Series dual battery bracket
  • Optional Gold Mount & V-Mount battery plate attachments (sold separately)

Rugged Lightweight Housing

  • Anodized aluminum chassis
  • Ultralight weight: 1.25lbs (.57kg)
  • Thin body width: 1.32in (3.35cm)



Environmental
Item Weight (oz) 20
Package Weight (oz) 32
Height (in) 4.67
Width (in) 1.32
Length/Depth (in) 7.09
Compliance FCC, IC, CE, RoHS
Operating Temperature 30F to 100F
Storage Temperature 0F to 120F
Mount Points Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction Anodized aluminum chassis
Display
Panel Type IPS LCD
Diagonal Size 7.02
Resolution 1920x1200
Pixel Density 322 ppi
Aspect Ratio 16:9
Active Area 5.95 x 3.72
Brightness 1800 NITs
Contrast 1000:1
Gamut 100% DCI-P3 Coverage
Color Depth 10-bit Processing (8-bit panel)
Viewing Angle 160
Backlight Type LED
Adjustable Backlight Yes
Brightness 1800 NITs
DCI-P3 Color 100% DCI-P3 Coverage
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio Output Types HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
SDI 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Power In 2-pin Locking
USB 1x USB 2.0 Micro-B receptacle
Controls
Primary Touch Screen
Record Capture Image Capture Tool
Power
Connector LEMO
Voltage DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Battery Types L-Series, V Mount, Gold Mount
Overload Protection DC input: Reverse polarity
Battery Chemistry Li-ion
Battery Charging Time Monitor does not support the charging of batteries
Power Plug-in 2-Pin Locking Connector
Software
Pixel Zoom 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate Automatic or Manual Control
Image Flip Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Color Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual - User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel
