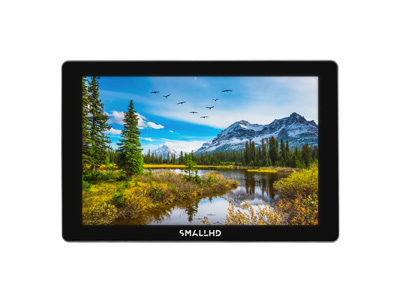

| Display |
|
| Panel Type |
IPS LCD |
| Size Diagonal |
7.02 |
| Resolution |
1920x1200 |
| Pixel Density (PPI) |
322 |
| Aspect Ratio |
16:10 |
| Active Area |
5.95 x 3.72 |
| Brightness |
1500 Nits |
| Contrast |
1000:1 |
| Color Gamut |
100% DCI-P3 Coverage |
| Color Depth |
8-b Panel with 8-b Scopes |
| Viewing Angle |
8-b Panel with 10-b Scopes |
| Backlight Type |
LED |
| Adjustable Backlight |
Yes |
|
Input Signal Types/Formats
|
|
| 3G-SDI |
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
| HD-SDI |
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI |
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
| HDMI |
YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50 |
| Audio |
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels |
|
Output Signal Types/Formats
|
|
| 3G-SDI |
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
| HD-SDI |
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI |
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
| HDMI |
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 |
| Audio |
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection |
|
Connector Type
|
|
| SDI |
1x BNC 3G input and 1x BNC 3G selectable input/output |
| HDMI |
1 input and 1 output: HDMI Type-D Receptacles (full size) |
| Audio |
1x 3.5mm 3-pin Stereo Headphone Jack |
| Power In |
Barrel, 2.0mm ID, 5.5mm OD (center pin positive) |
| USB |
1x USB 2.0 Micro-B receptacle |
|
Controls
|
|
| Primary Control Interface |
Touch Screen |
| Record/Capture |
Capture Tool |
|
Power
|
|
| Connector Type |
Barrel, 2.0mm ID, 5.5mm OD (center pin positive) |
| Voltage |
DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max |
| Power Consumption |
17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel) |
| Battery Plate Included |
L-Series standard (V Mount or Gold Mount optional accessories) |
| Recommended Power Supply |
Recommend DC 12~15V at ~2.5 amp or greater |
| Overload Protection |
DC input: Reverse polarity |
| Battery Types |
L-Series, V Mount, Gold Mount |
| Battery Chemistry |
Li-ion |
| Battery Charging Time (hours) |
Monitor does not support the charging of batteries |
|
Environmental
|
|
| Compliance |
FCC, IC, CE, RoHS |
| Operating Temperature |
30F to 100F |
| Storage Temperature |
0F to 120F |
| Height |
4.67" (11.86cm) |
| Width |
1.32" (3.35cm) |
| Depth/Length |
7.09" (18.01cm) |
| Weight (Item Only without battery) |
18.9oz (535.81g) |
| Weight (Packaged) |
26oz (737.09g) |
| Mount Points |
Four ¼-20 Mount Points (Left, Right, Bottom, and Back) |
|
Software
|
|
| Pixel Zoom (type) |
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom |
| Frame Guides |
Preset Aspect Ratios & Customizable |
| DSLR Scale |
Canon 5DMkii & Canon 7D |
| Custom Scale |
Yes (Underscan Only) |
| Anamorphic De-Squeeze |
0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x |
| Image Rotate(Manual/Automatic) |
Automatic or Manual Control |
| Image Flip (Manual/Automatic) |
Automatic or Manual Control |
| Cross Conversion |
Yes: HDMI → SDI & SDI → HDMI |
| Focus Assist (Colors) |
User Adjustable Color Style and Intensity |
| Peaking |
User Adjustable Intensity |
| False Color |
Rainbow, Arri Style, Custom with up to 10 nodes |
| Zebra |
Dual - User Configurable |
| Waveform |
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| Vectorscope |
Yes |
| RGB Parade |
Fully User Customizable |
| Histogram |
Luma & RGB Style |
| Image Capture |
Yes |
| Custom LUTS |
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu |
| LUT Downstream |
Available on SDI or HDMI Out. Applied on Output Preview Page. |
| LUT Import |
via SD Card or USB Storage Device |
| Image Overlay |
With Opacity Slider and Blink Setting |
| Audio Meters |
HDMI & SDI up to 8 channel |
