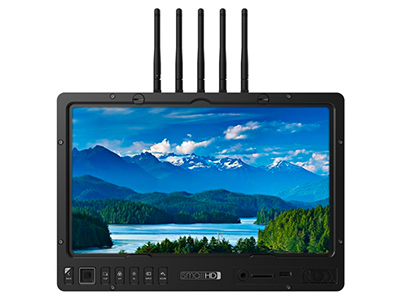

SmallHD 1303HDR Bolt Sidekick Wireless Monitor
Code:
This 13-inch production monitor/receiver adds incredible agility for 1st ACs and DOPs. With a built-in Teradek Sidekick II receiver, this daylight viewable display pairs with SmallHD TX monitors and Teradek Bolt 500, 1000, and 3000 transmitters; without adding any extra cables or batteries into the mix.
For purchasing information
Enquire Now

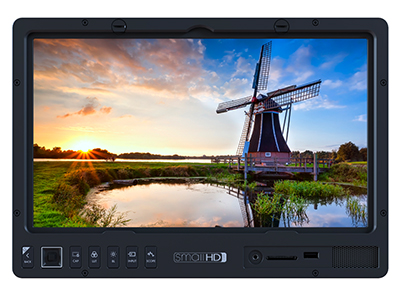

This 13-inch production monitor/receiver adds incredible agility for 1st ACs and DOPs. With a built-in Teradek Sidekick II receiver, this daylight viewable display pairs with SmallHD TX monitors and Teradek Bolt 500, 1000, and 3000 transmitters; without adding any extra cables or batteries into the mix. The 13RX features a 1500 nit bright, razor-sharp LCD display, robust signal/power options, and is compatible with Teradek RT Overlays.
Features
Built-In Wireless Receiver
Compatible with Teradek Bolt 500, 1000, 3000, and Focus Bolt/Cine 7 500 transmitters.
PageBuilder OS
Originally featured in the 500 and 700-series models, and extrapolated for the Production Monitor series, the PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 1703 at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, and focusing aids to different "pages". These pages can be easily flipped through using the joystick, or selected with the four quick-access buttons on the front panel. Additional buttons on the front panel can toggle monitoring tools on and off for each page.
3D LUT Processing
To keep your images consistent from production through to post-production, import 3D LUTs and display the treated image side by side with the untreated image, to correctly gauge exposure while visualizing what is being recorded by the camera. A side-by-side preview can also be used with the HDR preview function. Separate LUT-treated images can be sent downstream over SDI and HDMI, so you can have the 1303 display a log image or LUT-treated image, while the director or client monitors connected to the outputs can receive images treated with a different LUT. An image capture function saves a still frame from the incoming video stream onto an SD card, and records the applied 3D LUT for post-production reference.
On-Set Problem Solving
The PageBuilder OS has a dedicated Output Preview page which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor.
HD Scopes
Fill the screen with up to three simultaneous scopes, including waveform, vectorscope, and histogram, while still being able to observe the camera feed. The Color Picker function can analyze the raw color values of any individual pixel in the frame.
Exposure Tools
Exposure assist supports both ARRI and Rainbow false color. Utilize zebra lines to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.
Focus Assist and Peaking Tools
Focus assist creates a bright highlight on in-focus subject matter—highly recommended when focusing on the fly. Focus Peaking increases the image sharpness, allowing for more detailed focusing. The color and intensity of the peaking can be adjusted to your preference.
Specifications
Display
Panel Type
|
IPS LCD |
Size Diagonal
|
13.3 |
Resolution
|
1920x1080 |
Pixel Density (PPI)
|
166 PPI |
Aspect Ratio
|
16:9 |
Active Area
|
11.59” x 6.52” |
Brightness
|
1500 nits |
Contrast
|
1150:1 |
Color Gamut
|
93% NTSC |
Color Depth
|
10 bit |
Viewing Angle
|
177 degrees Vertical and Horizontal |
Backlight Type
|
White LED |
Adjustable Backlight
|
Yes |
Temperature Adaptive Color
|
No |
Input Signal Types/Formats
3G-SDI
|
YCC 4:2:2 @ 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
HD-SDI
|
YCC 4:2:2 @ 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
SD-SDI
|
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
Audio
|
HDMI & SDI Monitor through Speakers in Front Bezel or through Headphone Jack Metering up to 8 channels |
Output Signal Types/Formats
3G-SDI
|
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
HD-SDI
|
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
SD-SDI
|
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
Audio
|
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection |
Wireless
Video Inputs
|
Teradek Sidekick 5 antenna unit |
Delay Tx To Rx
|
< 1mSec (0.001 sec) |
Supported Resolutions
|
HDMI (8-b RGB, YCC 4:2:2, YCC 4:4:4) & SDI (10-b YCC 4:2:2) 1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i/50, 1080p30/29.97, 1080p24/23.98, 720p60/59.94, 720p/50, 480i60/59.94, 480p60/59.94, 576i50, 576p/50 |
Video Compression
|
Visually lossless |
Audio Compression
|
48 kHz 24-bit PCM |
Wireless Network
|
5GHz |
RF Channel Selection
|
AFS (Automatic frequency selection) |
Encryption
|
AES-126 |
Range
|
Upto 500' line of sight (or 500' LoS) |
Noise Rejection
|
Can coexist with WiFi and 5 Ghz cordless phones |
Connector Type
SDI
|
2x BNC 3G Inputs and 2x BNC 3G Outputs |
HDMI
|
1x Output, HDMI Type-D Receptacles (full size) |
Component
|
Not Supported |
Composite
|
Not Supported |
Audio
|
1x Headphone Jack on Front of Monitor |
Power In
|
1x XLR 4pin Input 12-34VDC |
Power Out
|
1x Lemo Output 12VDC @ 4A Max |
USB
|
1x Front USB2, 2x Rear USB2 |
Controls
Primary Control Interface
|
Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: Image Capture; LUT Selection; Backlight Level; Input Selection; Scopes Toggle. |
Record/Capture
|
Dedicated Image Capture Button on Front Bezel |
Data I/O
Storage
|
SD Card for LUTs, Captured Images, Image Overlays, Profile Saving & Loading, Firmware Upgrades |
USB
|
USB ports support storage devices for LUTs, Captured Images, Image Overlays, Profile Saving - 3x USB 2.0 (2 rear, 1 front) |
Power
Connector Type
|
1x XLR 4-pin 12 - 34VDC IN; 12V Lemo 2-pin OUT 4A Max |
Voltage
|
DC: 12 - 34 VDC, AC: 100 - 240 VAC 50-60Hz |
Power Consumption
|
13.5 - 95W |
Recommended Power Supply
|
AC - DC Power Converter “Brick” Included with Monitor 110 - 240VAC 50 - 60 HZ INPUT; 15V - 6A OUTPUT |
Overload Protection
|
Yes |
Battery Types
|
Gold Mount / VMount via 4pin XLR Connector |
Output Voltage (VDC)
|
12V @ 2A via 2-pin Locking Connector |
Battery Charging Time (hours)
|
Battery Charging Not Supported |
Environmental
Compliance
|
FCC, IC, CE, RoHS |
Operating Temperature
|
32F - 100F |
Storage Temperature
|
0F -104F |
Screen Protection
|
Acrylic or Anti-Reflective Acrylic screen protetor available as an option |
Height
|
9" (22.86cm) |
Width
|
13" (33.02cm) |
Depth/Length
|
2.5" (6.35cm) |
Weight (Item Only without battery)
|
145oz (4110.68g) |
Weight (Packaged)
|
12lb (5.44kg) |
Mount Points
|
2x ¼”-20 on Top, Left & Right sides; RapidRail - Cold Shoe style rails on rear of monitor |
Software
Pixel Zoom (type)
|
1.1-2x & 2x-8x Custom Zoom Levels with smooth pan via joystick |
Frame Guides
|
Preset Aspect Ratios & Customizable |
DSLR Scale
|
Canon 5DMkii & Canon 7D |
Custom Scale
|
Image Crop & Scale Tool for Overscan; Image Size & Position for Underscan |
Anamorphic De-Squeeze
|
.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x, Custom |
Image Rotate(Manual/Automatic)
|
Automatic or Manual Control |
Image Flip (Manual/Automatic)
|
Automatic or Manual Control |
Cross Conversion
|
Wireless → SDI & SDI → HDMI |
Focus Assist (Colors)
|
User Adjustable Color Style and Intensity |
Peaking
|
User Adjustable Intensity |
False Color
|
Rainbow, Arri Style, Custom up to 10 bands |
Zebra
|
Dual - User Configurable |
Waveform
|
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
Vectorscope
|
Yes |
RGB Parade
|
Fully User Customizable |
Histogram
|
Luma & RGB Style |
Image Capture
|
With Dedicated Button and Image Gallery |
Custom LUTS
|
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu |
LUT Downstream
|
Available on SDI 1 or HDMI Out. Applied on Output Preview Page. |
LUT Import
|
Via SD Card or USB Storage Device |
Image Overlay
|
Yes with Opacity Slider and Blink Setting |
Firmware
|
SmallHD Unified Firmware Version 3.5.1 or Later |
Audio Meters
|
Up to 8 channel |
