Skaarhoj PTZ Fly PTZ Camera Controller

Code: BLO/SKJ-PTZ-FLY-V1
$2,755.00

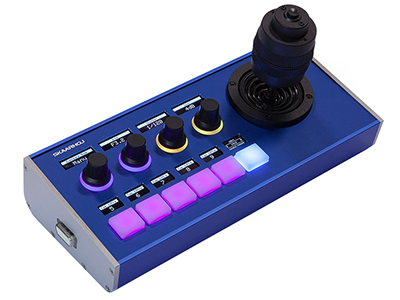

PTZ Fly - a compact controller featuring a full size three-axis joystick. Pan, tilt and rotate the handle to control your cameras. The superb OLED displays clearly show what camera settings you control and which preset you recall. With UniSketch OS, everything is possible. Customize it with a hall effect joystick or an SDI output for Blackmagic Micro Studio Camera control on a pan-tilt head.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Skaarhoj PTZ Fly PTZ Camera Controller is back in stock.

What's In The Box?

  • PTZ Fly
  • 12V power supply
  • USB programming cable
  • Networking cable
  • UniSketch OS
  • Manual
  • PTZ Fly - a compact controller featuring a full size three-axis joystick

    Get fingertip control of PTZ camera movement with the PTZ Fly with SDI I/O from SKAARHOJ. Featuring a full-size three-axis joystick, this compact controller makes it easy to pan, tilt, and rotate your cameras. Also featured are four backlit encoder knobs with wide-screen OLED displays and six programmable four-way multifunction keys for presets and camera selection. Additionally, this version of the PTZ Fly comes equipped with SDI input and output ports for Blackmagic Design camera control.

    The PTZ Fly runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.

    Key Features

    • High-quality backlit encoders with widescreen OLED displays
    • 3-axis joystick
    • Programmable four-way buttons with bright OLED displays
    • Multi-function keys for presets and camera selection
    • Slim, ergonomic console form factor
    • Ethernet with PoE (IEEE802.3af)
    • UniSketch OS

    Specifications

    Controls and Indicators 4x Backlit Encoder Knobs with OLED Displays
    6x Programmable 4-Way Multifunction Keys with OLED Displays
    1x Full-Size 3-Axis Joystick
    1x SDI Input
    1x SDI Output
    Connectors 1 x RJ45, Ethernet
    1 x Micro-USB, Programming
    1 x DC Power Input
    Power Source PoE IEEE802.3af, DC
    Operating System UniSketch
    Dimensions 17.7 x 5.5 x 5.9" / 45 x 14 x 15 cm
    Weight 3.6 lb / 1650 g
