Sennheiser EW-DP ENG Kit Digital Wireless Combo Microphone System (S7-10: 662 - 693 MHz)

Code: SEN/700045
$1,220.00

Purpose-built for content creators, videographers, and newsgatherers looking for a stress-free wireless experience, the Sennheiser EW-DP ENG SET Combo is a camera-mount, fully digital wireless microphone system that utilizes professional UHF transmission to reliably deliver Sennheiser's pristine, broadcast-quality audio directly to your camera.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Sennheiser EW-DP ENG Kit Digital Wireless Combo Microphone System (S7-10: 662 - 693 MHz) is back in stock.

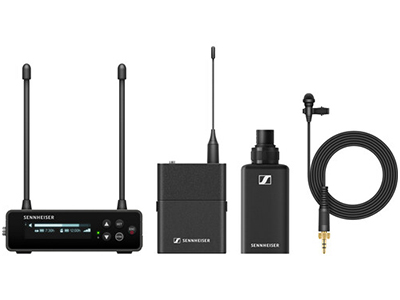

What's In The Box?

  • EW-DP ENG SET Camera-Mount Digital Wireless Combo Mic System
  • EW-DP EK Camera-Mount Digital Wireless Receiver
  • EW-D SK Digital Wireless Bodypack Transmitter
  • ME 2 Omnidirectional Lavalier Mic with 3.5mm Connector
  • EW-DP SKP Digital Plug-On Wireless Transmitter/Recorder
  • CL 35 TRS 3.5mm TRS to 3.5mm TRS Coiled Cable
  • CL 35-XLR Right-Angle 3.5mm TRS to XLR Male Coiled Cable
  • USB-C Charging Cable
  • BA 70 Rechargeable Battery Pack
  • Mounting Kit

Time is measured differently on set. Seconds converted into frames, minutes into card space, hours into precious remaining daylight. Whether you’re a crew of one or many, EW-DP is the ideal partner to simplify your audio workflow.

Part of the Evolution Wireless Digital family — which includes EW-D and EW-DX — EW-DP will change the way you think of sound on set. A wireless microphone system that puts time on your side by blending best-in-class technology with an ergonomic build. After all, production has enough challenges; sound doesn’t need to be one of them.

Capture every detail, every time

When it comes to wireless transmission, UHF is the standard by which all other wireless audio systems are measured by. Used by professionals the world over, Evolution Wireless operates in the UHF spectrum and is known for its reliability, flexibility, and comprehensive feature set. Combine that with the spectral efficiency and audio clarity that only digital technology can offer, and you get EW-DP – our most advanced wireless audio system for video applications.

It's the little things…

Ergonomics were extremely important when developing EW-DP. Starting with the mechanical design, every button, connection, and component was thoughtfully considered for the best user experience possible. Furthermore, EW-DP is the first portable wireless system that has magnetically stackable receivers with a front-facing OLED display. These features allow for ease and flexibility when mounting your receiver, offering optimal visibility regardless of placement, angle, or light. A variety of powering options include primary-cells, lithium-ion rechargeable battery packs and direct power via USB-C, ensuring peace of mind during long hours on set.

Guidance when you need it most

EW-DP is a wireless system that troubleshoots for you. As the old saying goes, to err is human. Smart Notifications provide suggestions to errors that occur when setting up or operating EW-DP. If your audio clips, the system will suggest lowering the gain. When your battery is running low, the system will alert you. If you try to operate on a blocked frequency, you will be promoted to select another. If your transmitter and receiver are not linked, you’ll be prompted to press sync. And if the talent accidentally mutes their transmitter, you’ll be notified and will have the option to disable the mute remotely. These guides make all the difference when audio isn’t your only responsibility.

Control in the palm of your hand

Sennheiser Smart Assist app provides automated setup, operation, and monitoring using any iOS or Android device via Bluetooth. Auto frequency coordination creates reliable wireless connections for up to 16 systems, no wireless expertise required. Remote access to system settings whether at camera or across the room allow for quick and discreet adjustments on the fly. You’ll also find a support hub with video tutorials and detailed manuals to help get you started.

Specifications
Wireless Technology Digital UHF
Number of RF Channel Frequencies 2240
Included Transmitters 1 x Bodypack
1 x Plug-On
Diversity Intelligent Switching Diversity
RF Frequency Band 470 to 526 MHz
RF Bandwidth 56 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m (Line of Sight)
Max Transmitters per Band 58
Built-In Recorder Yes
Mobile App Compatible Yes: Android & iOS
App Name: Sennheiser Smart Assist
Functionality: Adjust Settings, Remote Control, Setup
Bluetooth 5.1 LE
Bluetooth Operating Distance 120' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution 24-Bit
Latency 1.9 ms
Dynamic Range 134 dB
Encryption None
Receiver
Receiver Type Camera-Mount
Mounting Options Belt Clip, Shoe-Mount, 1/4"-20 Female (with Included Hardware)
Antenna 2 x 1/4 Wave Rod, Fixed
Number of Audio Channels 1
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable)
Audio Output Level 1/8" / 3.5 mm Output:
2 dBV (Max, Unbalanced)
Frequency Response 20 Hz to 20 kHz ±3 dB
Network I/O None
Word Clock I/O None
USB/Lightning Connectivity 1 x USB-C Female (Bus Power, Charging)
Standalone Audio Interface Capable No
RF Output Power 10 mW (EIRP)
Power Requirements Battery, Bus Power (USB)
Battery Type 2 x AA (Included)
1 x Sennheiser Battery Pack (Included)
Approx. Battery Life 7 Hours
Display & Indicators 1 x Backlit OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status)
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 5 to 95%
Dimensions 3.4 x 2.6 x 1.1" / 86 x 67 x 28 mm
Weight 0.3 lb / 140 g
Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW (ERP)
Up to 10 mW (EIRP)
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Input (Lockable)
Included Cable Connector None
Muting Mute Switch
Audio Input Level 2 to 4.35 V RMS
Auto-Level Control No
Frequency Response 20 Hz to 20 kHz
Sync Method Bluetooth
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Sennheiser Battery Pack (Included, Replaceable)
Approx. Battery Life 8 Hours (Alkaline)
12 Hours (Sennheiser Battery Pack)
Display & Indicators 1 x LED (Mute)
1 x LED (Sync)
Housing Metal
Dimensions 2.5 x 3.1 x 0.8" / 63 x 80 x 20 mm (without Antennas)
Weight 4.2 oz / 120 g (without Batteries)
Microphone
Microphone Type Lavalier
Color Black
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 50 Hz to 18 kHz
Equivalent Noise Level 32 dB
Maximum SPL 130 dB SPL
Sensitivity 17 mV/Pa at 1 kHz
Output 1 x 1/8" / 3.5 mm TRS Male (Lockable)
Cable Length 5.2' / 1.6 m
Operating Voltage 7.5 V
Transmitter 2
Transmitter Type Plug-On
RF Output Power 10 mW (ERP)
Up to 10 mW (EIRP)
Audio I/O 1 x XLR 3-Pin Female Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Input
Phantom Power +48 V
Auto-Level Control No
Sync Method Bluetooth
Antenna 1 x Internal
